Gear Skiving

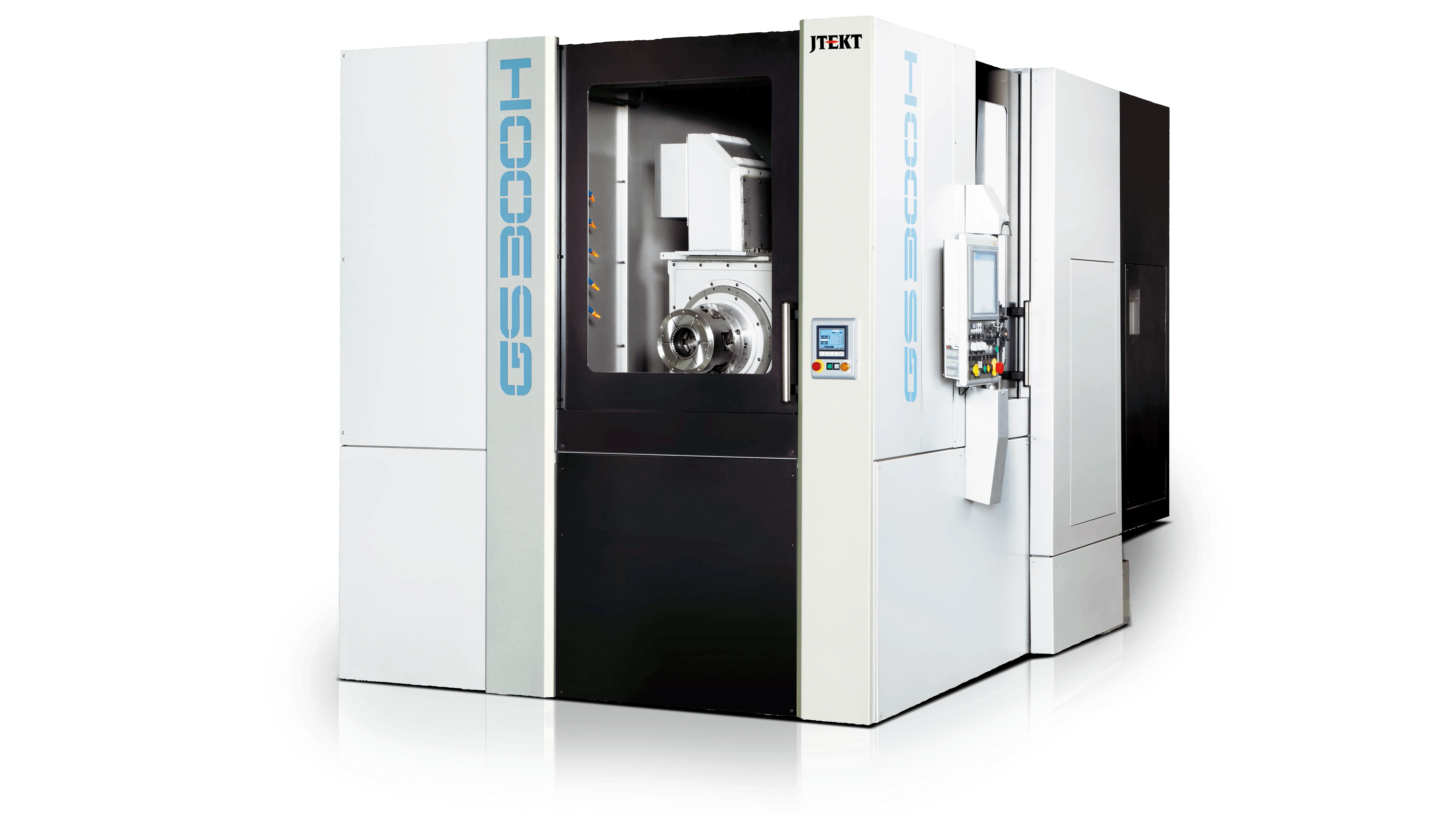

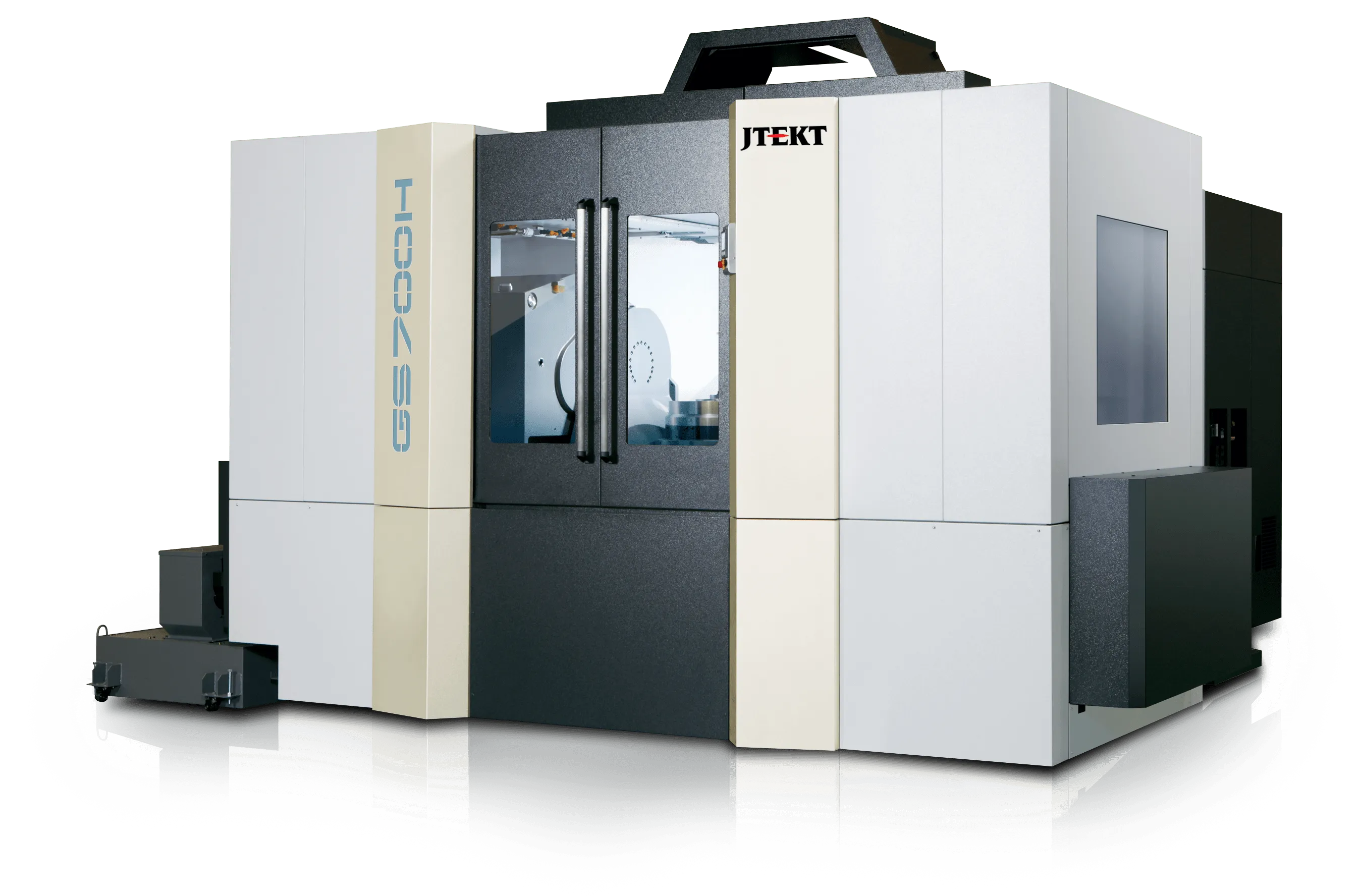

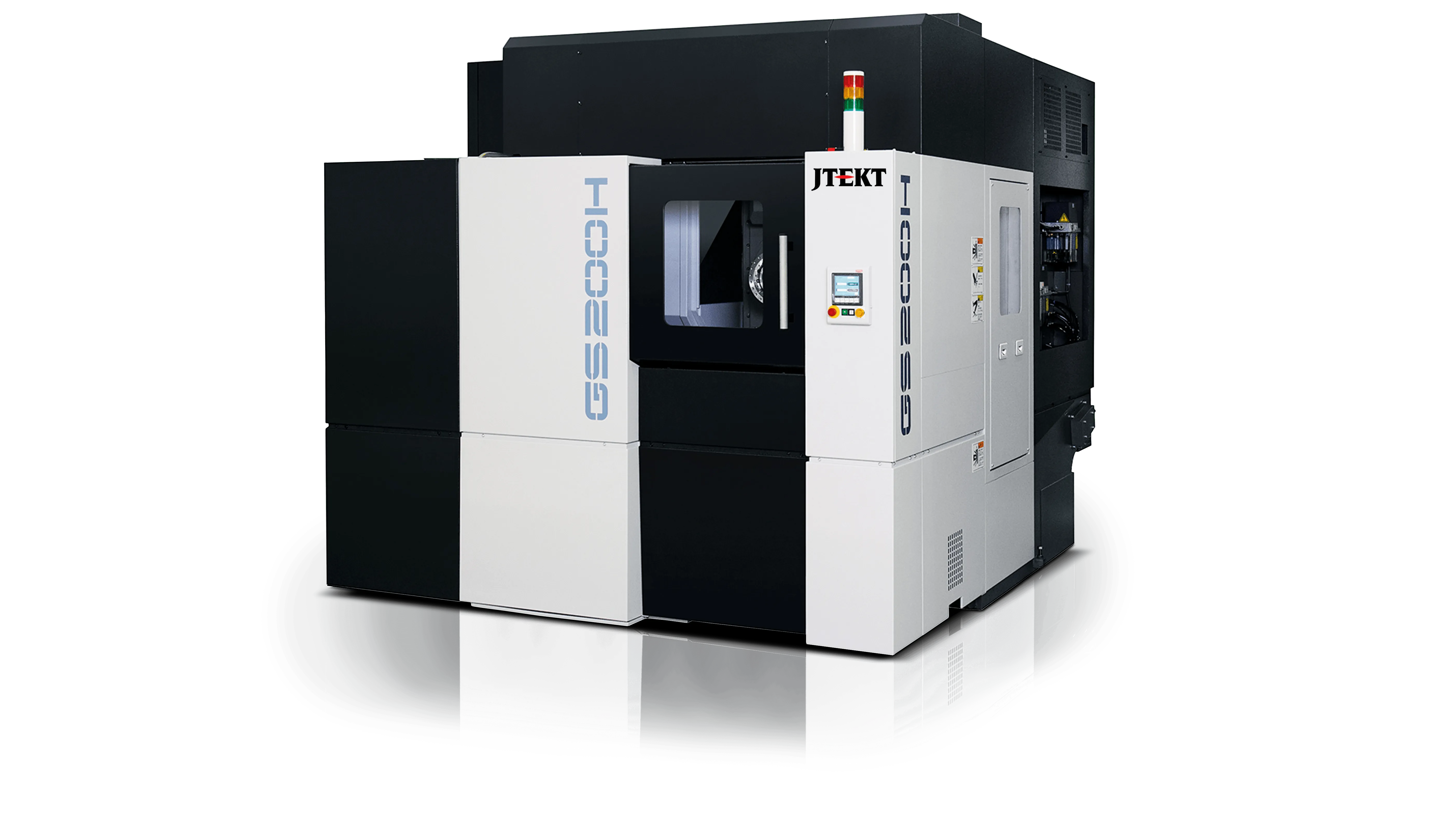

The GS200H, GS300H, and GS700H are world-first multitasking horizontal machining centers equipped with a skiving function for mass production of gear parts. They combine high-speed cutting with integrated lathe, gear skiving, and machining center capabilities, enabling continuous shop-floor operations while reducing the need for additional equipment and cutting tools.
Request A Quote
Specifications
Specifications
| X-axis Travel |
18.5" (470 mm) |
| Y-axis Travel (spindle head) |
14.2" (360 mm) |
| Z-Axis Travel |
24.2" (620 mm) |
| B-axis Rotating Range(table) |
220° (0 ~ -220°), 0.001° |
| Rapid Feedrate |
1,889 ipm (48 m/min) |
| Spindle Nose Shape |
BT No.50 |
| Spindle Nose |
6,000 min-1 |
| Spindle Speed |
40 HP (30 kW) / 33 HP (25 kW) |
| Rotating Speed |
3,000 min-1 |
| Rated Output |
43 HP (32 kW) / 26 HP (19.5 kW) [Optional: 45 HP (33.5 kW) / 38 HP (28.3 kW) |
| Torque max. / cont. |
95.1 ft-lb (129 Nm) / 45.7 ft-lb (62 Nm) |
| Max. Workpiece Swing (diameter) |
⌀20.7" (⌀528 mm) |
| Length |
7.87" (200 mm) or less |
| Max Workpiece Diameter |
⌀8.7" (⌀220 mm) |
| Rapid feedrate - X axis |
8 Standard (20 Optional) |
| Rapid feedrate - Y axis |
94.5" x 118" (2,400 mm x 3,000 mm) |
| Rapid feedrate - Z axis |
123" (3,112 mm) |
| Cutting feedrate |
28,600 lb (13,000 kg) |
| X-axis Travel |
28.7" (730 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
33.5" (850 mm) |
| B-axis Rotating Range(table) |
270° (0 ~ -270°), 0.001° |
| Rapid Feedrate |
2,362 ipm (60 m/min) |
| Spindle Nose Shape |
BBT No.50 |
| Spindle Nose |
6,000 min-1 |
| Spindle Speed |
40 HP (30 kW) / 33 HP (25 kW) |
| Rotating Speed |
3,000 min-1 |
| Rated Output |
45 HP (33.5 kW) / 38 HP (28.3 kW) |
| Torque max. / cont. |
118 ft-lb (160 Nm) / 66 ft-lb (90 Nm) |
| Max. Workpiece Swing (diameter) |
⌀31.5" (⌀800 mm) |
| Length |
7.87" (200 mm) or less |
| Max Workpiece Diameter |
8.66" (220 mm) |
| Rapid feedrate - X axis |
40 Standard |
| Rapid feedrate - Y axis |
112" x 225" (2,845 mm x 5,710 mm) |
| Rapid feedrate - Z axis |
124" (3,160 mm) |
| Cutting feedrate |
32,400 lb (14,720 kg) |
| X-axis Travel |
35.4" (900 mm) |
| Y-axis Travel (spindle head) |
33.5" (850 mm) |
| Z-Axis Travel |
35.4" (900 mm) |
| Tilt Spindle (A-axis) |
100° (+5° ~ -95°) |
| Rapid Feedrate |
20 m/min (X); 36 m/min (Y,Z) |
| Spindle Nose Shape |
BBT No.50 (Opt. HSK-A100) |
| Spindle Nose |
50 ~ 6,000 min-1 |
| Spindle Speed |
40 HP (30 kW) / 30 HP (22 kW) |
| Rotating Speed |
1,000 min-1 |
| Rated Output |
67 HP (50 kW) / 23 HP (17.5 kW) |
| Torque max. / cont. |
1,106 ft-lb (708 Nm) / 1,500 ft-lb (960 Nm) |
| Max. Workpiece Swing (diameter) |
⌀53" (⌀1,346 mm) |
| Length |
19.69" (500 mm) or less |
| Max Workpiece Diameter |
27.56" (700 mm) |
| Rapid feedrate - X axis |
40 Standard (Opt. 60, 120) |
| Rapid feedrate - Y axis |
205" x 244" (5,200 mm x 6,200 mm) |
| Rapid feedrate - Z axis |
146" (3,700 mm) |
| Cutting feedrate |
66,000 lb (30,000 kg) |
