ID Grinders

ID Grinders

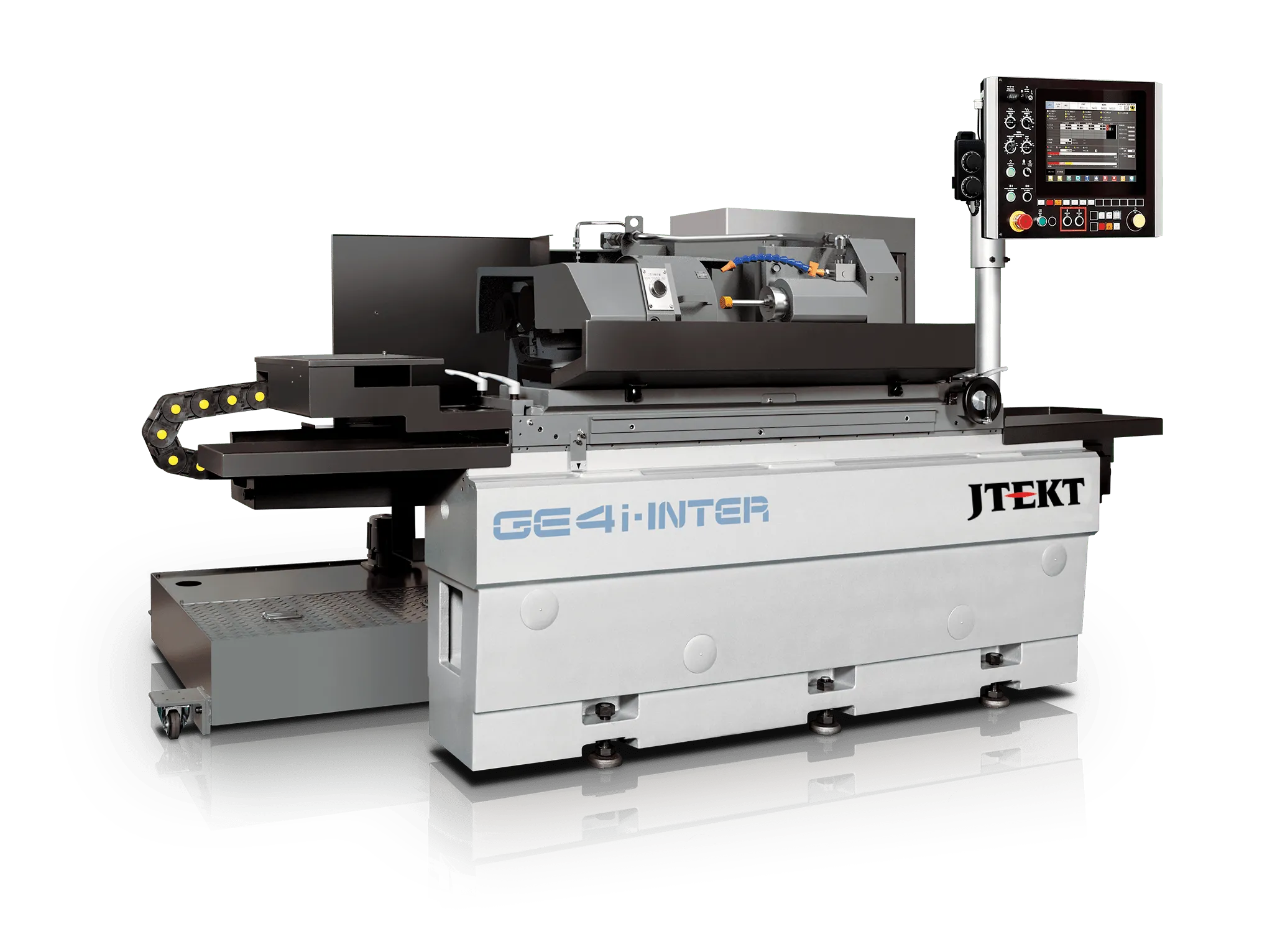

The GE4i INTER features internal grinding specifications with the same patented Toyoda Stat Bearing and floating plate ball nut technology of external grinding to ensure high accuracy and positioning.

Request A Quote

Specifications

Specifications

Swing Over Table	Ø 12.6" (320 mm)
Workpiece Length	39.4” (1,000 mm)
Machining I.D.	Ø 5.9" (150 mm)
Grinding Diameter (Max)	11.8 (300) in (mm)

Swing Over Table	Ø 12.6" (320 mm) [Optional 15.75" (400 mm)]
Workpiece Length	59.0" (1,500 mm)
Machining I.D.	Ø 5.9" (150 mm)
Grinding Diameter (Max)	11.8 (300) in (mm)

Swing Over Table	Ø 12.6" (320 mm)
Workpiece Length	78.7" (2,000 mm)
Machining I.D.	Ø 5.9" (150 mm)
Grinding Diameter (Max)	11.8 (300) in (mm)

Swing Over Table	Ø 12.6" (320 mm) [Optional 15.75" (400 mm)]
Workpiece Length	19.6" (500 mm)
Machining I.D.	Ø 5.9" (150 mm)
Grinding Diameter (Max)	11.8 (300) in (mm)
