BROTHER T-200A ROTARY TABLE

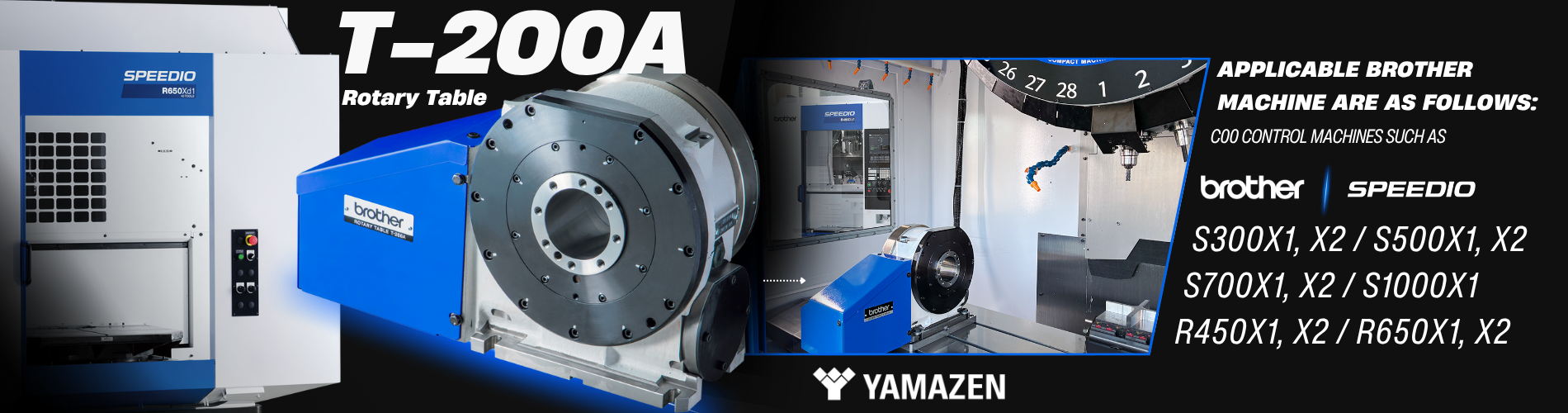

Brother T-200A Rotary Table

The Brother T-200A Rotary Table is purpose-built for SPEEDIO machines, delivering high-speed indexing (up to 100 rpm) and zero-backlash accuracy through its roller-gear cam mechanism—ideal for true 4th- or 5th-axis machining. Unlike older models, the T-200A features an integrated brake and slimmer body, eliminating the need for external components and preserving valuable trunnion travel.

Top Features Include:

  • Ultra-fast indexing up to 100 rpm for cycle-time reduction
  • Integrated pneumatic brake and slim profile to reduce setup height and maximize clearance
  • Backlash-free precision with a maintenance-free roller-gear cam mechanism
  • Robust speed and rigidity capable of handling unbalanced loads with high torque

The T-200A fits a wide range of Brother SPEEDIO models—including the S300, S500, S700, R450/R650, and S1000— offering a compact yet powerful option for adding rotary capabilities. With multiple pneumatic and coolant-through ports, it supports integrated systems without external rotary management hardware.
