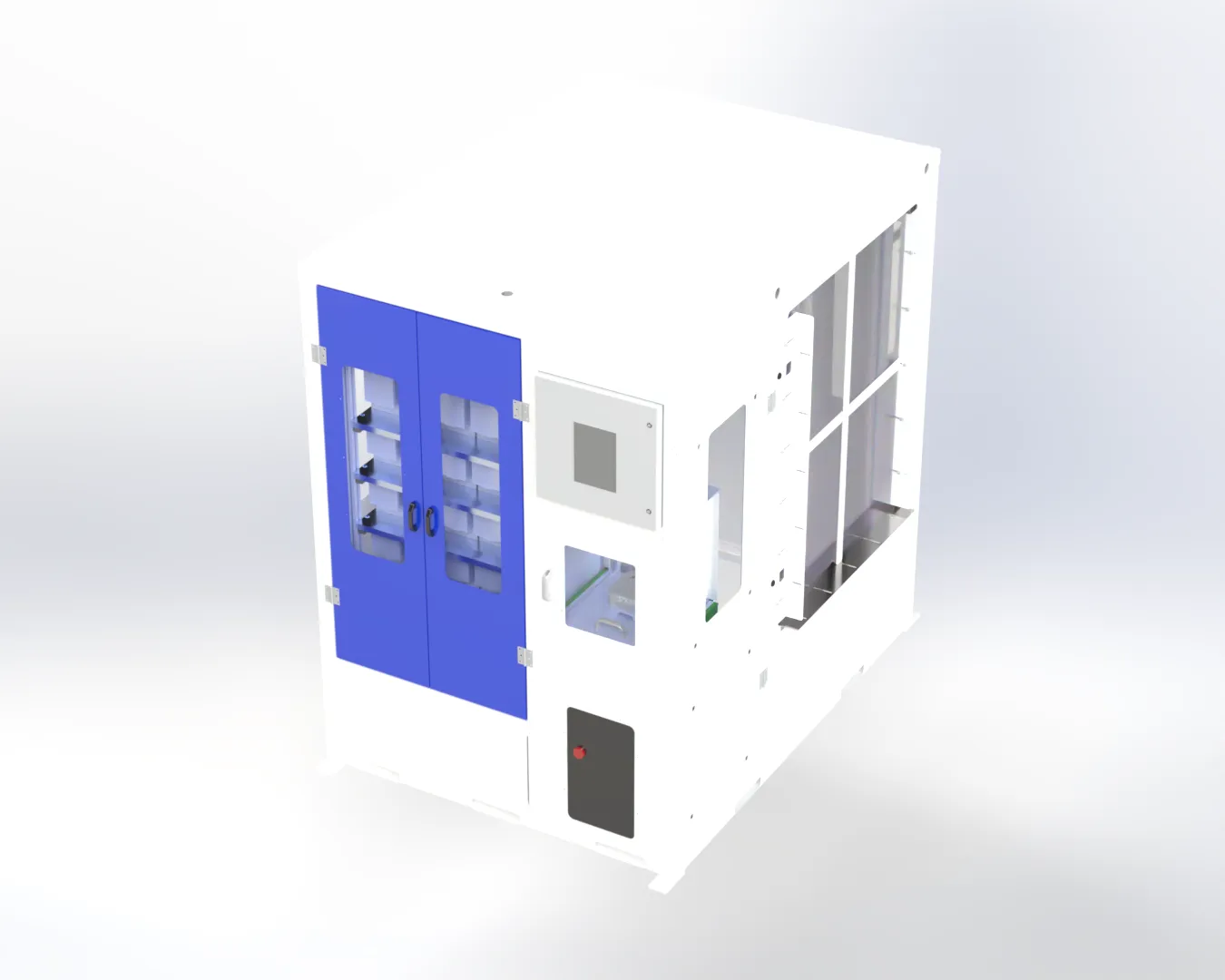

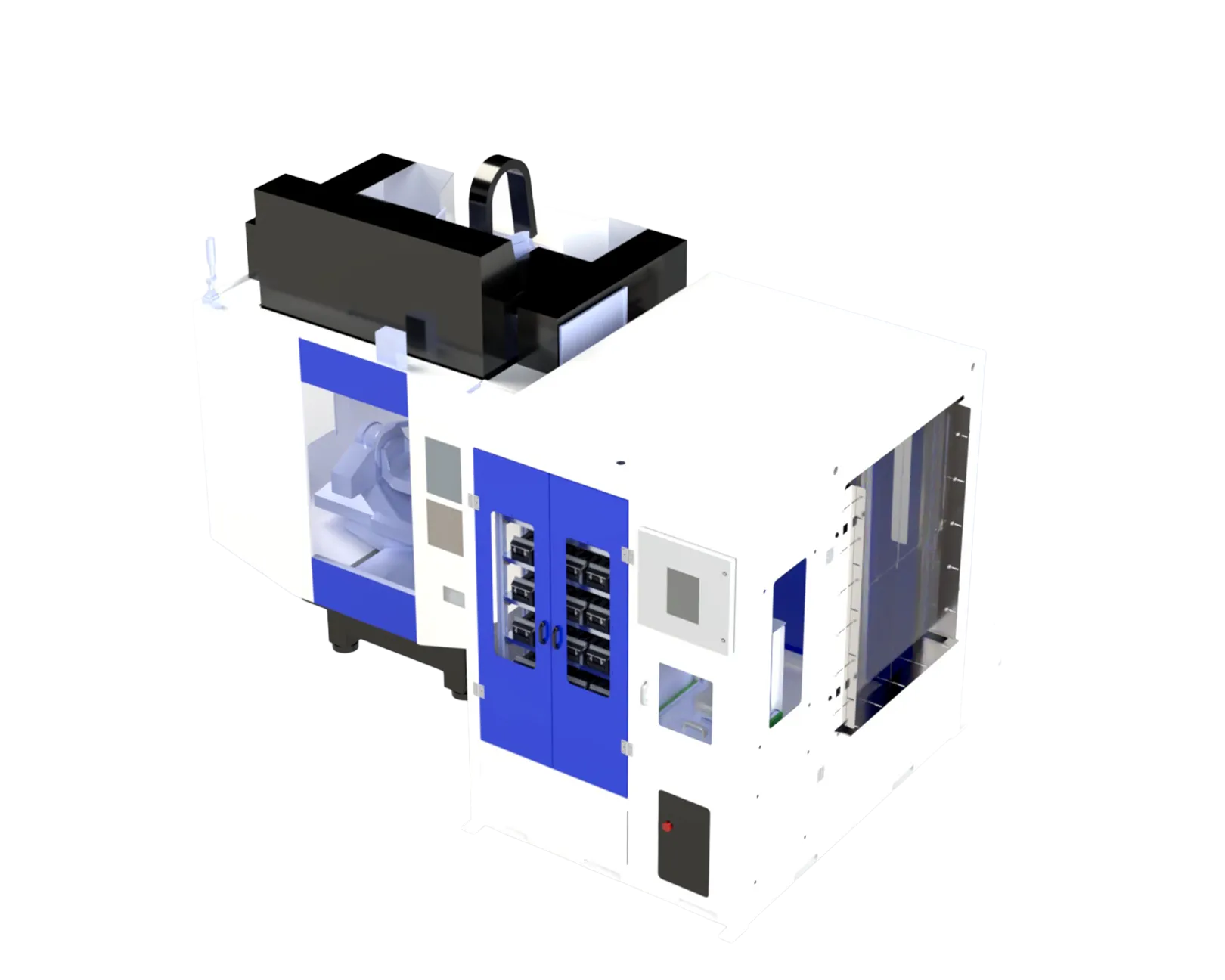

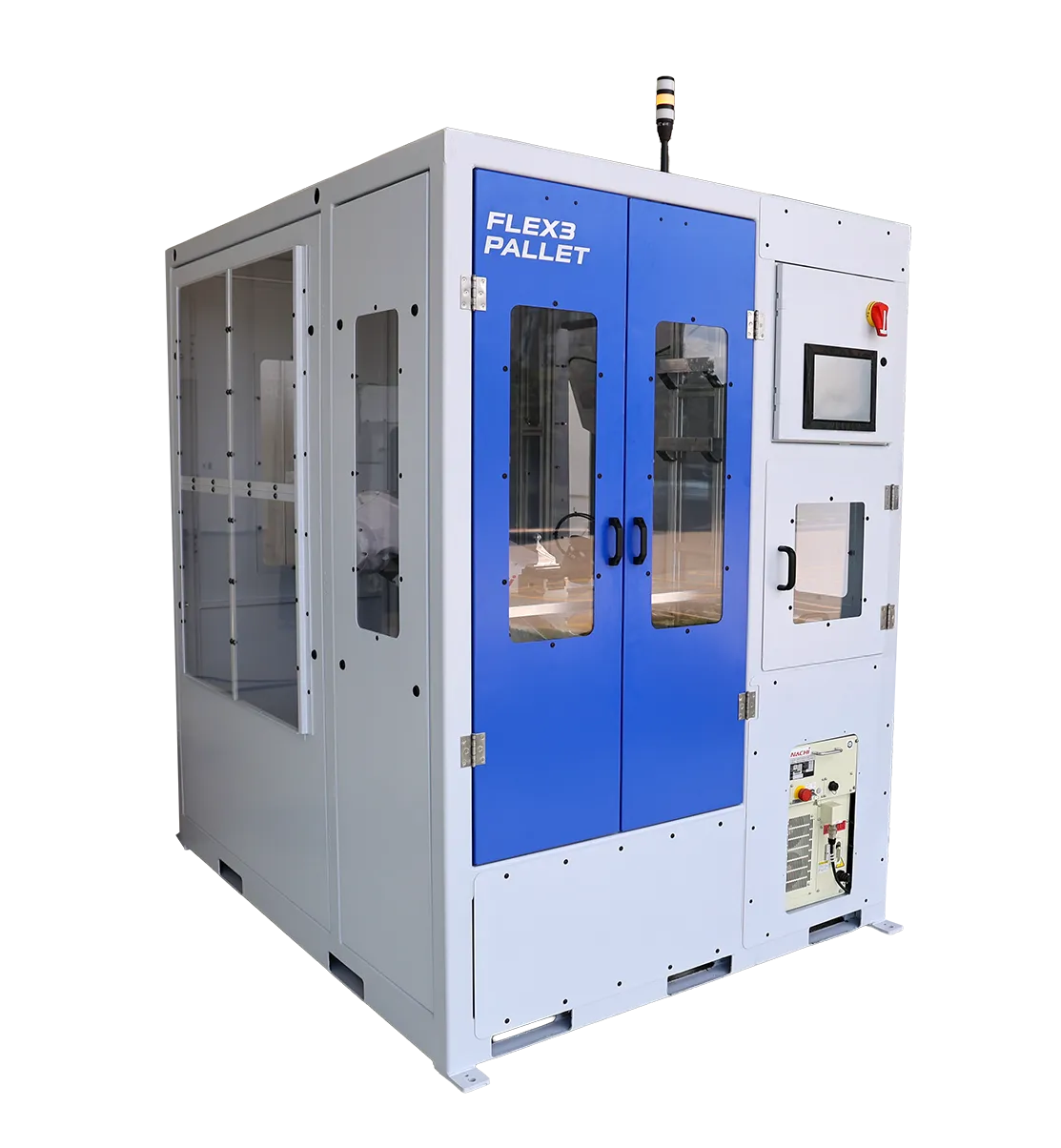

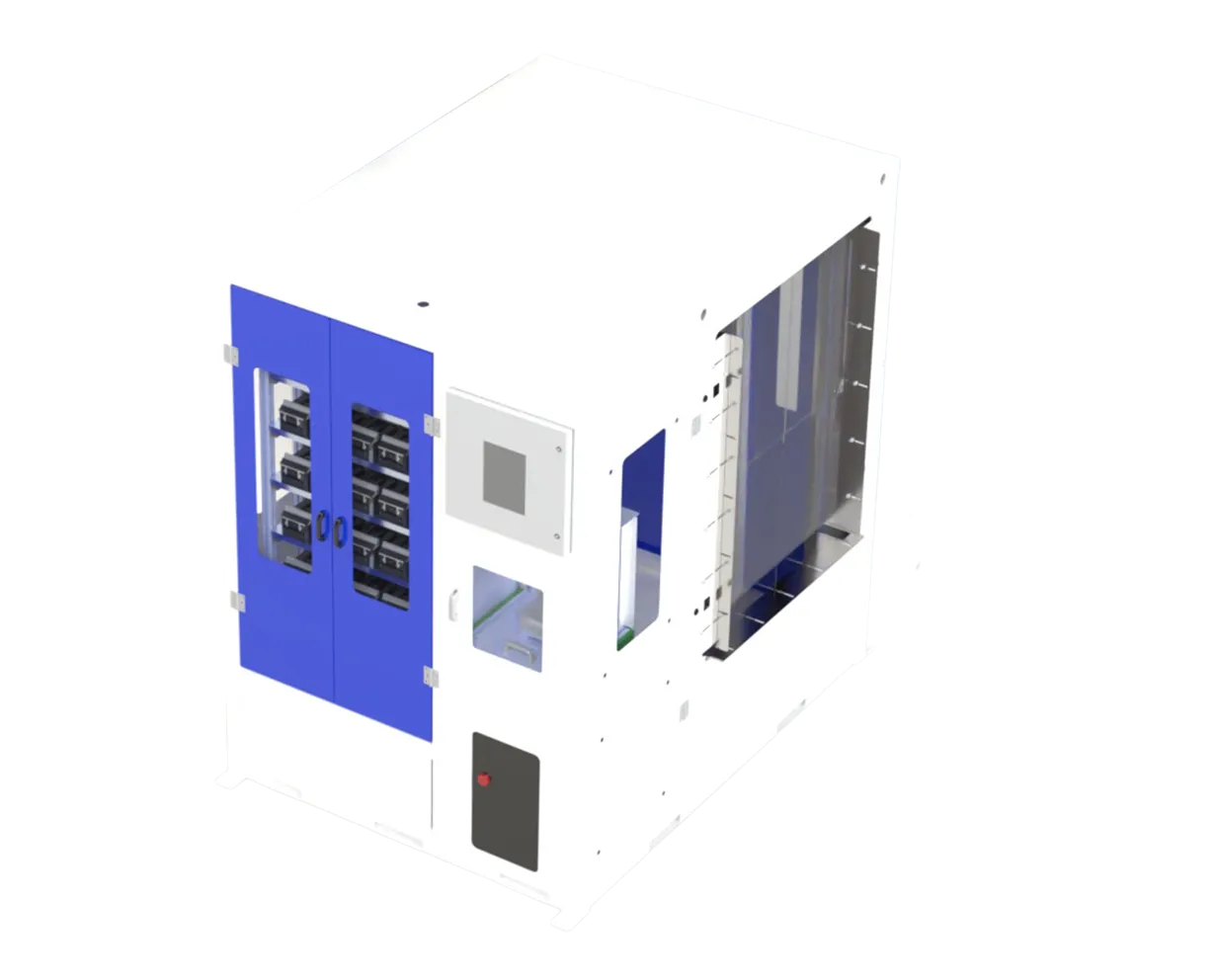

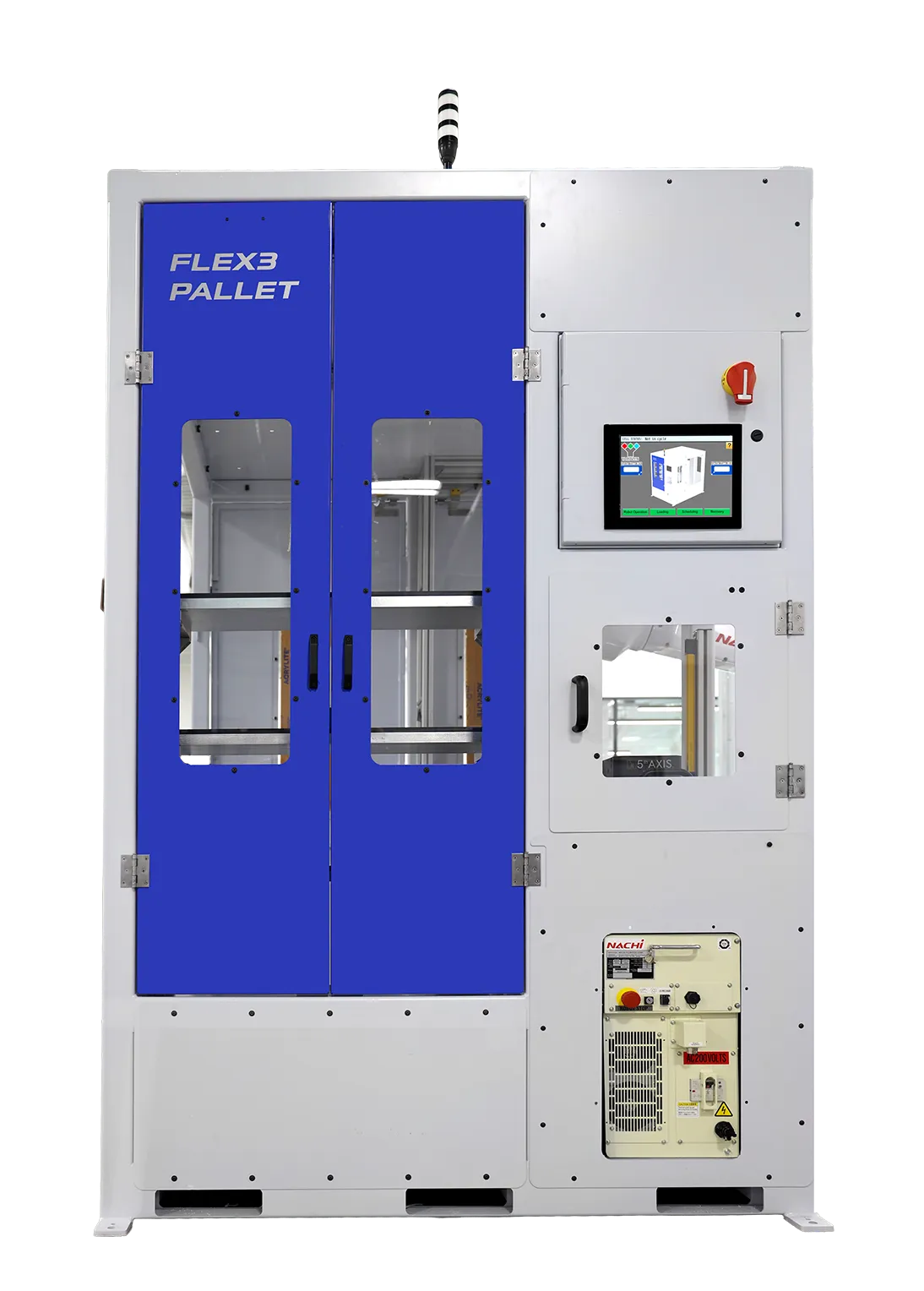

FLEX3-Pallet
The FLEX3-Pallet automation solution by Yamazen is a high-performance CNC automation cell engineered specifically for Brother SPEEDIO S, M, U, and H series machining centers. Designed to maximize spindle uptime and throughput, the system supports up to 40 standard 6” x 6” pallets and expands to 56 pallets with an optional load station.
Powered by a 6-axis industrial robotic arm with 10KG payload capacity, the FLEX3 enables automated pallet loading, custom load scheduling, and seamless CNC program selection without interrupting the machining cycle.
Ideal for high-mix, mid-volume manufacturing environments, the FLEX3-Pallet system transforms your Brother SPEEDIO into a fully automated CNC production cell, delivering improved efficiency, labor optimization, and scalable automation performance.
Request A Quote
Features
Features
Key features include:
- Single or Dual Machine Feeding — Designed to support one or two Brother SPEEDIO machines.
-
Up to 40 Standard Pallets — Uses 6″ × 6″ pallet format holding parts up to 5″ H × 6″ W × 10″ D.
-
Expandable to 56 Pallets — Capacity increases with optional operator load station.
-
10 kg Robot Payload — Standard robot tooling supports 10 kg part handling.
-
Advanced Cell Controller — Enables pallet scheduling, priority job sequencing, and seamless CNC program selection.
-
High-Mix Production Ready — Capable of running identical or mixed part numbers within a single cycle.
-
Custom End-of-Arm Tooling — Available to match preferred workholding and part handling needs.
-
Safety Guarding & Status Indicators — Integrated enclosure and visual light tower for safe operation.
The FLEX3-Pallet Automation Solution is designed to enhance your manufacturing efficiency and flexibility, providing reliable performance for Brother SPEEDIO S, M, and U model machines.
