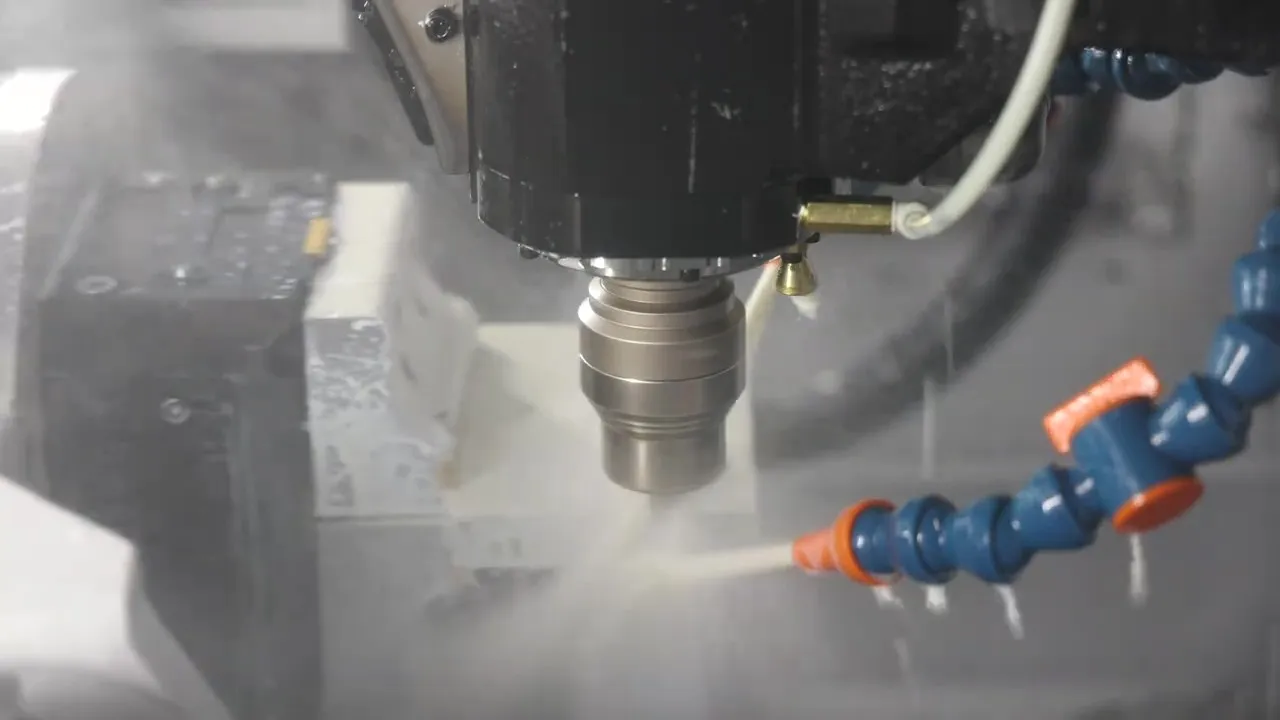

The Brother SPEEDIO U500Xd2-5AX 28T is a next-generation 5-axis CNC machining center featuring a 28-Tool magazine.
Engineered with expanded Y and Z-axis travels, a high-speed tilting rotary table, and a compact footprint, the U500Xd2-5AX 28T maximizes floor space while delivering exemplary accessibility and versatility. The powerful 20,000 RPM spindle motor ensures fast and accurate machining across numerous materials, from aluminum to titanium.
Smart features like simultaneous 5-axis machining, tool center point control, an intuitive touchscreen interface, and automation-ready design (with options like side shutter and chip conveyor) make it ideal for forward-thinking manufacturers across industries including automotive, aerospace, medical, and general engineering.
Choose the Brother SPEEDIO U500Xd2-5AX 28T for a compact, high-performance CNC solution built for speed, scalability, and sustainable manufacturing excellence.
Request A Quote Tooling Options Automate with Flex3
Equipped with a ø500 x H320 rotary table for multi-face machining of medium-sized workpieces. Ideal for one-chuck, 5-axis operations.
Max. loading capacity: 100kg
Utilizes a 28-tool turret for seamless tool changes in high-mix production.
Expanded travel (Y: 450mm, Z: 380mm) increases tool accessibility and accommodates larger jigs and deeper parts.
High-speed tool changes supported by advanced load estimation and spindle control. Turret-only tool change: 0.7 sec.
Tool changes and axis positioning are executed in parallel to minimize cycle time.
Compact layout retains the high-speed responsiveness and structural design principles of the proven S500Xd1 platform.
Upgraded 12,000 min⁻¹ motor delivers high torque in mid- and high-speed ranges for versatile material compatibility.
Reliable workholding during 5-axis machining enables aggressive cutting and consistent accuracy.
15" touchscreen interface with grouped functions and built-in apps for streamlined setup, monitoring, and recovery.
Intuitive operation with productivity tools like tool life tracking, waveform monitoring, and tool stocker management for 100-tool setu
