BROTHER SPEEDIO HU550Xd1
The Brother SPEEDIO HU550Xd1 is a compact horizontal 5-axis machining center designed for high-precision multi-face machining of larger and more complex workpieces. Featuring a large tilting rotary table, fast tool changes, and Brother’s high-speed control integration, the HU550 delivers flexible, high-productivity performance for demanding manufacturing environments while maximizing floor space efficiency.
Request A Quote
Specifications
Specifications
| Specification |
Detail |
| X Axis Travel |
550 |
| Y Axis Travel |
500 |
| Z Axis Travel |
400 |
| * Spindle RPM |
12,000 |
| Tapping RPM |
6,000 |
| Rapid Traverse |
50 x 56 x 56 (1,969 x 2,205 x 2,205) |
| * Cutting Feed rate |
X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) |
| Table Size |
15.7" x 15.7" |
| Maximum Loading Capacity |
441 lbs |
| ATC Capacity |
30 |
| Tool To Tool Time |
1.3 sec |
| Chip to Chip Time |
2.5 sec |
| Tool Shank Type |
MAS-BT30 |
| Maximum Tool Length |
13.7" |
| Maximum Tool Diameter |
4.9" |
| Maximum Tool Weight |
8.8 Lbs |
Features
Features

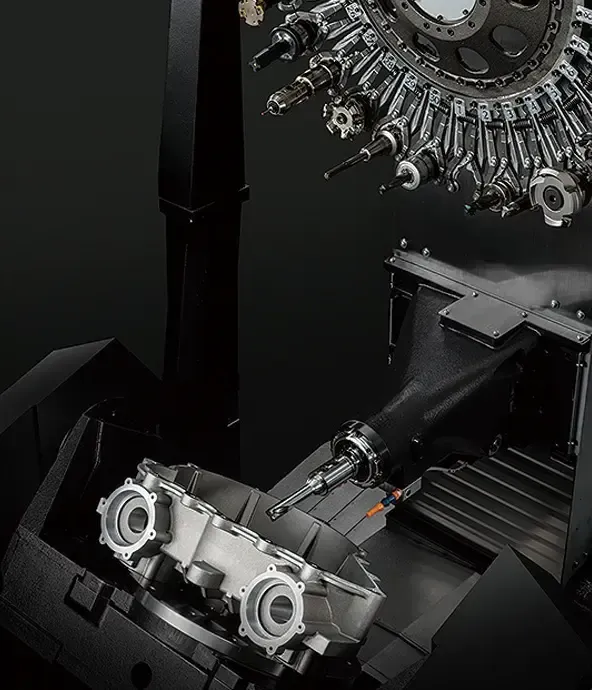

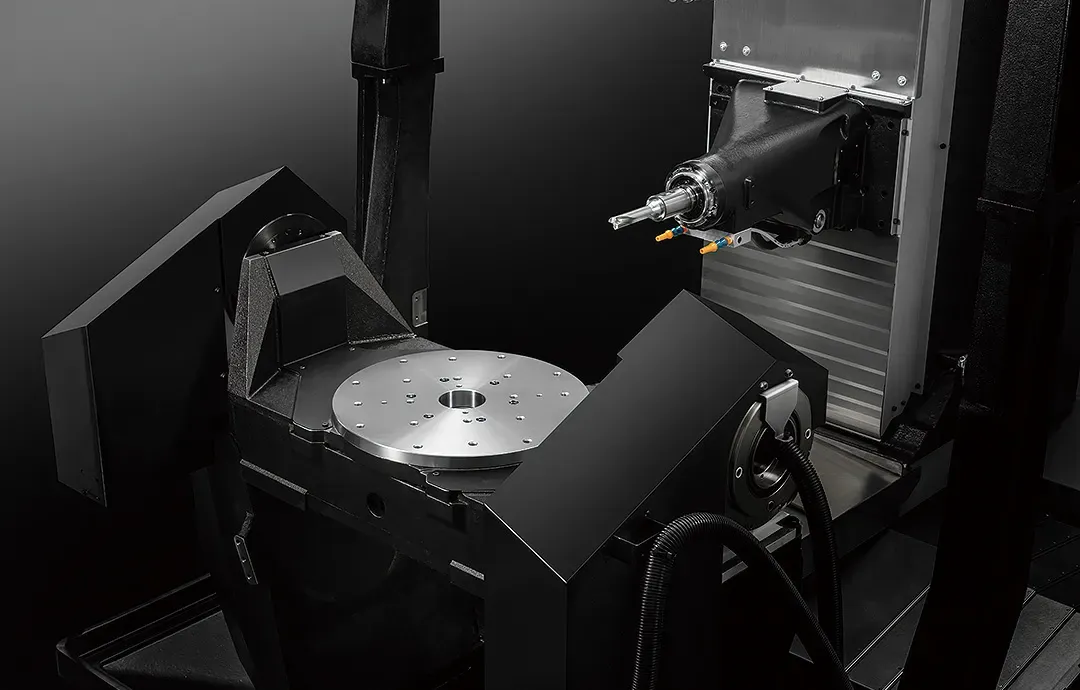

The SPEEDIO HU550Xd1 horizontal universal compact machining center with a BT30 spindle and 30-tool magazine delivers high-speed, multi-face machining of large or long workpieces with a tilting rotary table and exceptional precision.
