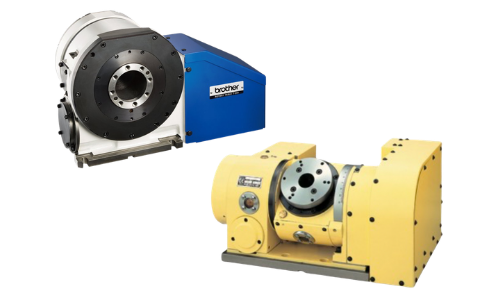

Rotary Tables & Indexing Solutions

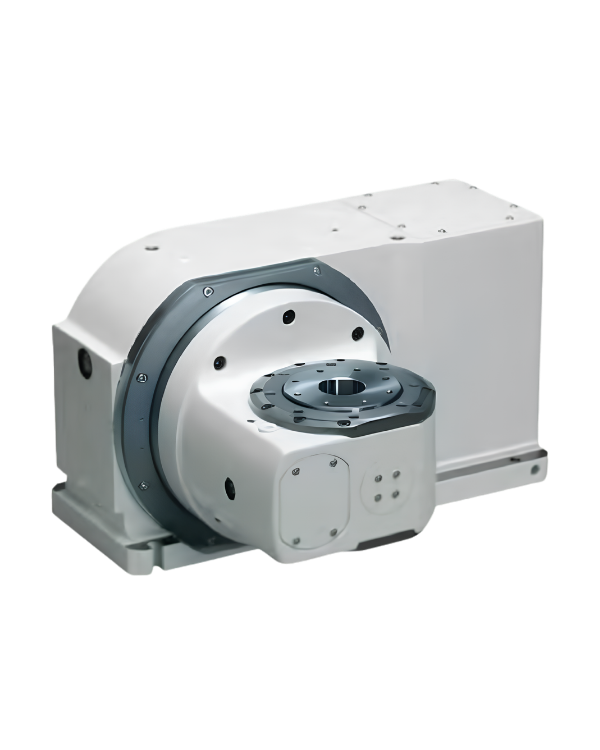

A 4th-axis rotary table adds one rotational axis to a compatible CNC machining center, allowing a workpiece to be indexed or rotated for machining additional faces. A 5-axis rotary system typically adds both rotation and tilt, allowing more flexible positioning of complex parts.

Fourth-axis systems are often used for indexed multi-face machining. Five-axis configurations can support more complex workpiece orientations and, when the CNC machine and control permit, simultaneous multi-axis operations. Machine compatibility, workpiece clearance, and required machining movements determine the appropriate solution.

Yes, many CNC machining centers can accommodate an additional rotary table, provided the machine's CNC control, electrical connections, mounting provisions, and available workspace support the installation. Compatibility must be verified for the specific machine and rotary table combination.

Important considerations include the rotary table's overall dimensions, weight, servo requirements, workholding arrangement, clamping capacity, and workpiece clearance. Some machines may require additional control options or integration work. Yamazen can help evaluate suitable configurations for compatible machining centers.

The most important factors when selecting a CNC rotary table are machine compatibility, required axes of movement, workpiece weight, table dimensions, positioning accuracy, indexing speed, and clamping rigidity. The system must also provide sufficient clearance for the fixture, cutting tool, and spindle.

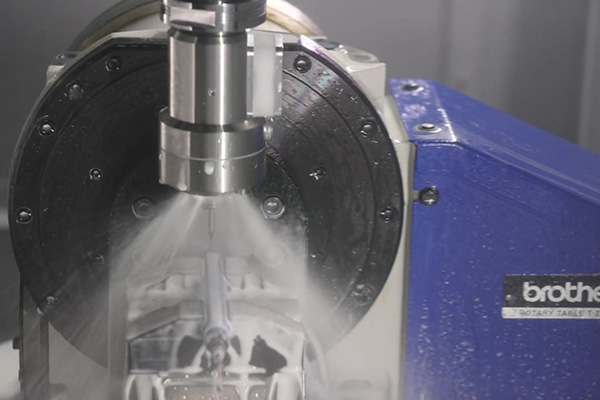

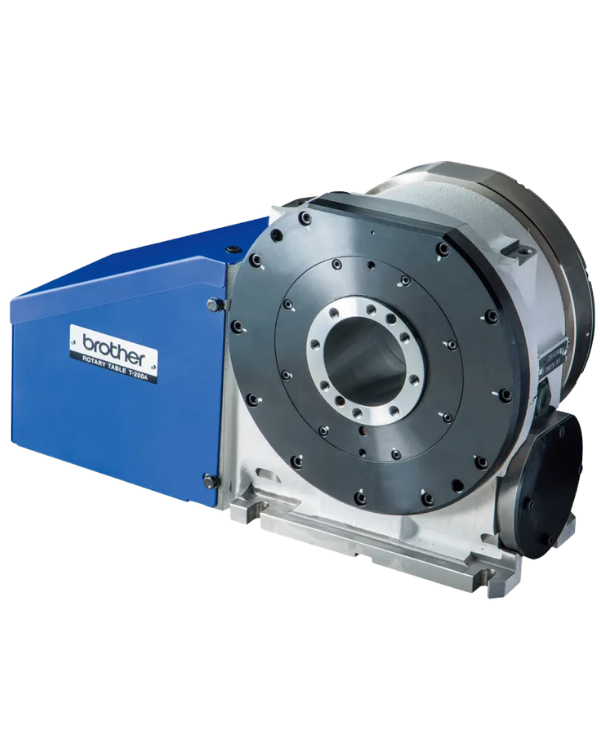

Applications requiring simple indexing may need a different configuration from those requiring continuous rotary movement or simultaneous 5-axis machining. For example, the Brother SPEEDIO T-200A offers indexing speeds up to 100 rpm, but that specification should be evaluated alongside machine compatibility and the application's cutting requirements.

Customers can browse and purchase available products through the Yamazen Online Store or contact our tooling team for assistance. To place an order directly, email toolingorders@yamazen.com or call 800-228-2969 . Our team can also help with product information and ordering questions.

Yes. Yamazen provides quotes for tooling, measuring equipment, workholding solutions, and other manufacturing products. Email toolingsupport@yamazen.com with the manufacturer, product name or part number, quantity, and any relevant application requirements. Our team can assist with pricing and availability.

Yamazen works with a broad network of manufacturing technology and tooling brands, and not every available product may be listed in our online store. If you can't find what you're looking for, contact our tooling team to discuss product availability, specifications, and purchasing options.

Yes. Yamazen provides technical expertise and application support to help manufacturers select tooling and equipment for their machining processes. Our team can recommend solutions based on your CNC machine, materials, machining requirements, production goals, and other application needs.

The Yamazen Online Store provides product information and pricing for listed items. For products without published pricing, specialized equipment, or larger quantity requests, contact toolingsupport@yamazen.com to request a quote and confirm availability.

For questions about an existing tooling order, email toolingorders@yamazen.com or call 800-228-2969 . Please include your order number, purchase order number, or product details so our team can assist you efficiently.
