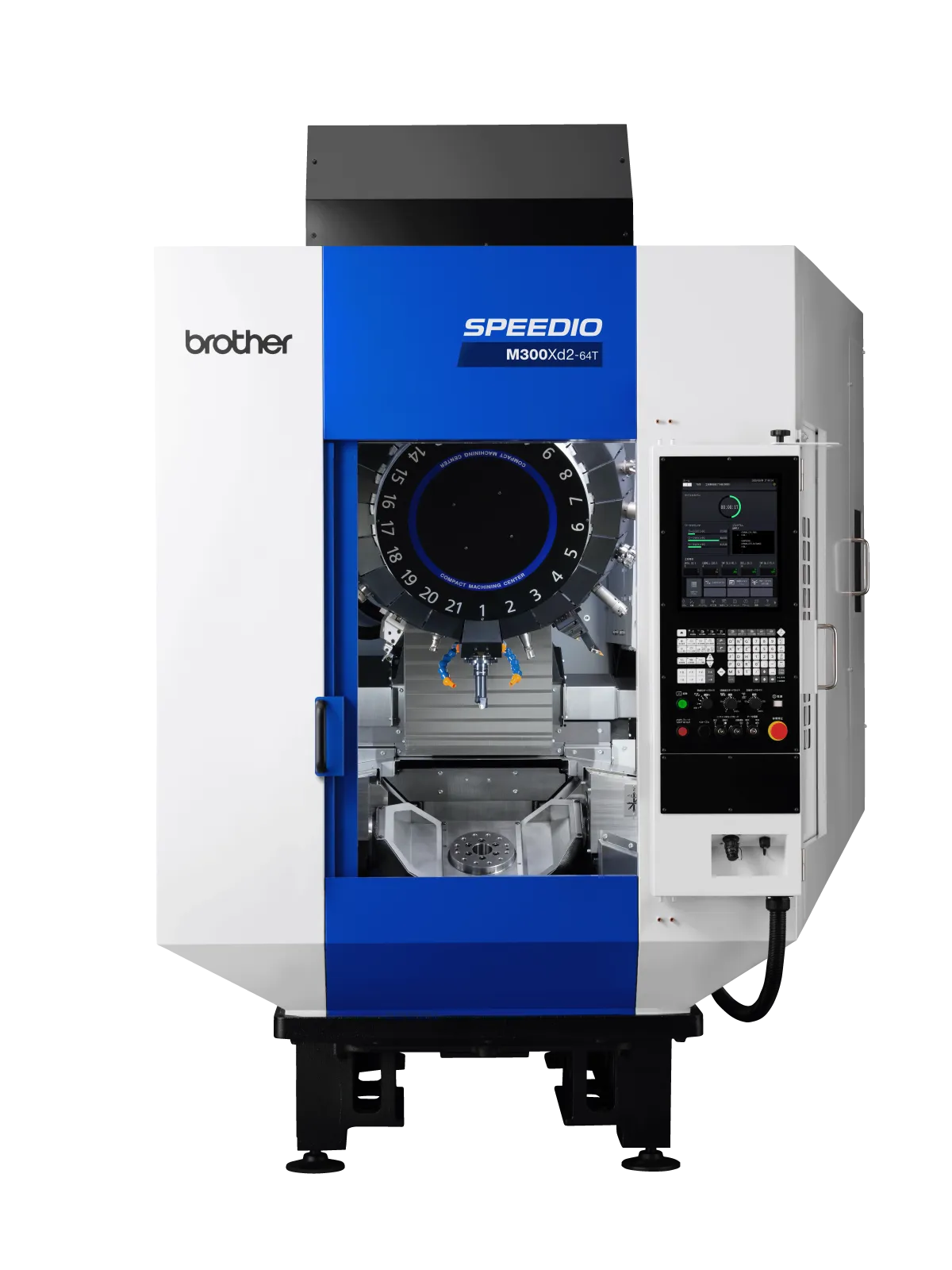

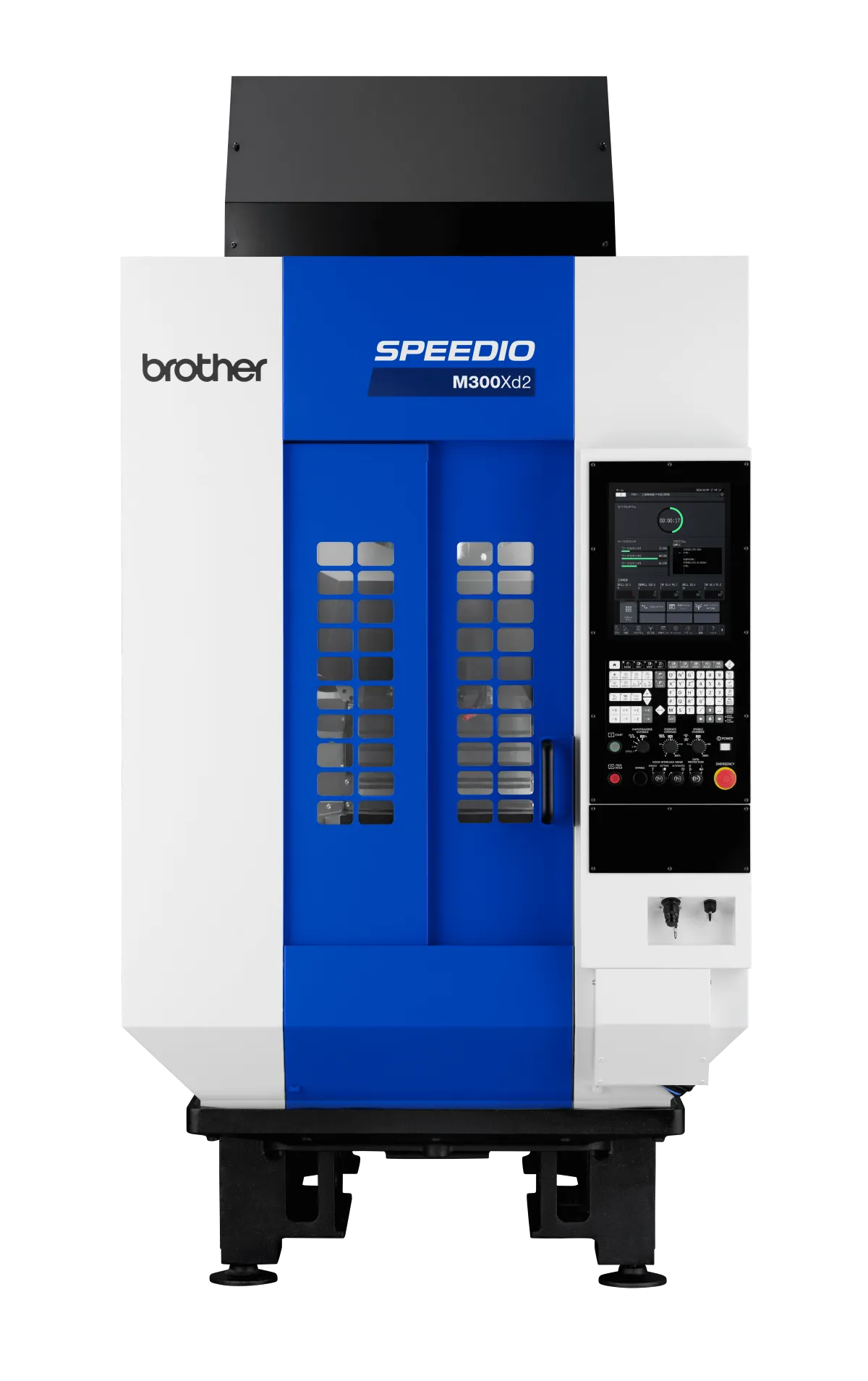

Brother SPEEDIO M300Xd2 Series

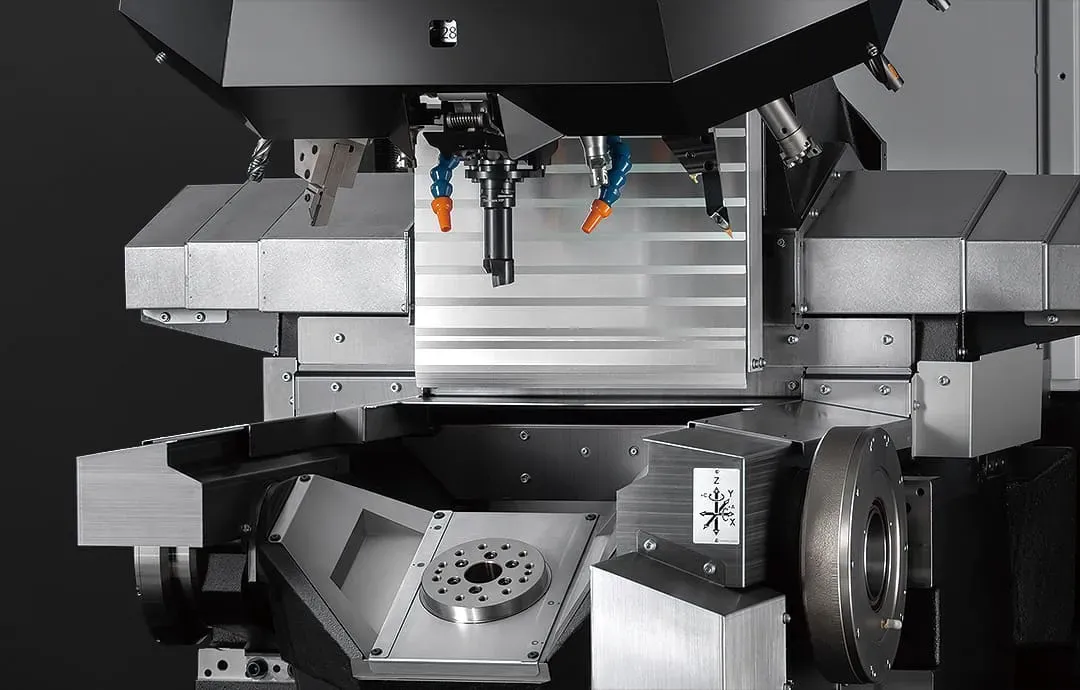

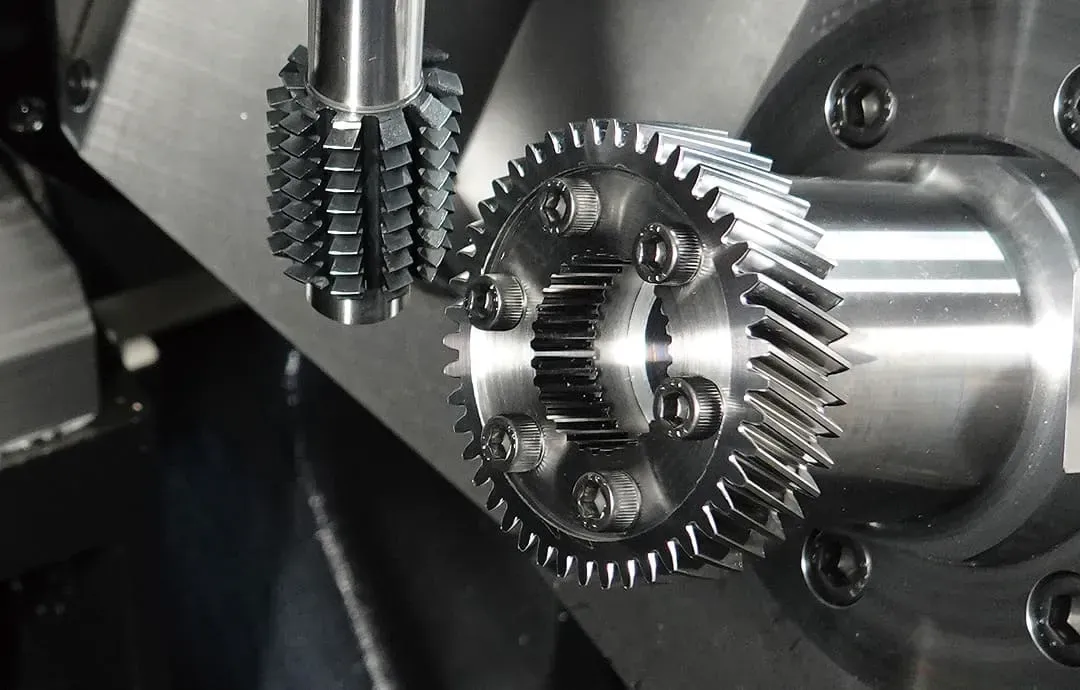

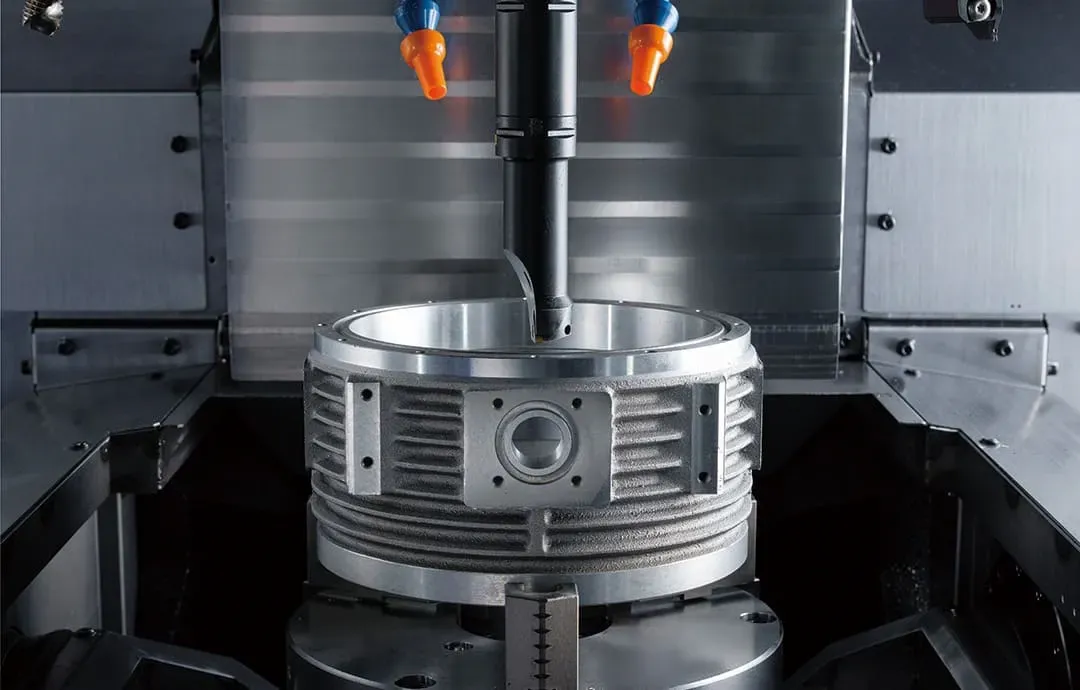

The Brother SPEEDIO M300Xd2 Series combines turning and milling in a compact machining center, helping manufacturers reduce part handling, improve accuracy, and streamline production.
Available in four configurations, the M300Xd2 Compact Multi-Tasking Series offers 21-, 28-, and 64-tool capacities, with select models offering simultaneous 5-axis machining. From repeat production to high-mix, low-volume manufacturing, the series provides the flexibility to match machine capabilities to each application's demands.
With fast tool changes, a compact footprint, and integrated turning capabilities, the M300Xd2 Series helps manufacturers consolidate operations without sacrificing productivity.
Request A Quote
Tooling Options
Automate with Flex3
Specifications
Specifications
| Specification |
Detail |
| X Axis Travel |
11.8" |
| Y Axis Travel |
17.3" |
| Z Axis Travel |
15.0" |
| A Axis (deg.) |
-30 to +120 |
| C Axis (deg.) |
360 |
| Spindle RPM |
12,000 Standard / 10,000 High-Torque / 20,000 / 27,000 Optional |
| Tapping RPM |
6,000 / 8,000 (27,000 RPM Option) |
| Rapid Traverse |
1,969 IPM |
| Cutting Feedrate |
X, Y, Z: 0.04–1,181 IPM |
| Work Area Size |
Ø5.5" Standard / Ø6.7" High-Torque |
| Maximum Loading Capacity |
Table Side: 88 lbs. Standard / 165 lbs. High-Torque; Tail Side: 42 lbs. |
| ATC Capacity |
21 / 28 |
| Tool-to-Tool Time |
0.6 / 0.8 sec. (21T / 28T) |
| Chip-to-Chip Time |
1.3 / 1.4 sec. (21T / 28T) |
| Tool Shank Type |
MAS-BT30 |
| Maximum Tool Length |
9.8" |
| Maximum Tool Diameter |
3.1" |
| Maximum Tool Weight |
6.6 lbs. |
| Specification |
Detail |
| 5-Axis Machining |
Yes |
| X Axis Travel |
11.8" |
| Y Axis Travel |
17.3" |
| Z Axis Travel |
15.0" |
| A Axis (deg.) |
-30 to +120 |
| C Axis (deg.) |
360 |
| Spindle RPM |
12,000 Standard / 10,000 High-Torque / 20,000 / 27,000 Optional |
| Tapping RPM |
6,000 / 8,000 (27,000 RPM Option) |
| Rapid Traverse |
1,969 IPM |
| Cutting Feedrate |
X, Y, Z: 0.04–1,181 IPM |
| Work Area Size |
Ø5.5" Standard / Ø6.7" High-Torque |
| Maximum Loading Capacity |
Table Side: 88 lbs. Standard / 165 lbs. High-Torque; Tail Side: 42 lbs. |
| ATC Capacity |
21 / 28 |
| Tool-to-Tool Time |
0.6 / 0.8 sec. (21T / 28T) |
| Chip-to-Chip Time |
1.3 / 1.4 sec. (21T / 28T) |
| Tool Shank Type |
MAS-BT30 |
| Maximum Tool Length |
9.8" |
| Maximum Tool Diameter |
3.1" |
| Maximum Tool Weight |
6.6 lbs. |
| Specification |
Detail |
| X Axis Travel |
11.8" |
| Y Axis Travel |
17.3" |
| Z Axis Travel |
15.0" |
| A Axis (deg.) |
-30 to +120 |
| C Axis (deg.) |
360 |
| Spindle RPM |
12,000 Standard / 10,000 High-Torque / 20,000 / 27,000 Optional |
| Tapping RPM |
6,000 / 8,000 (27,000 RPM Option) |
| Rapid Traverse |
1,969 IPM |
| Cutting Feedrate |
X, Y, Z: 0.04–1,181 IPM |
| Work Area Size |
Ø5.5" Standard / Ø6.7" High-Torque |
| Maximum Loading Capacity |
Table Side: 88 lbs. Standard / 165 lbs. High-Torque; Tail Side: 42 lbs. |
| ATC Capacity |

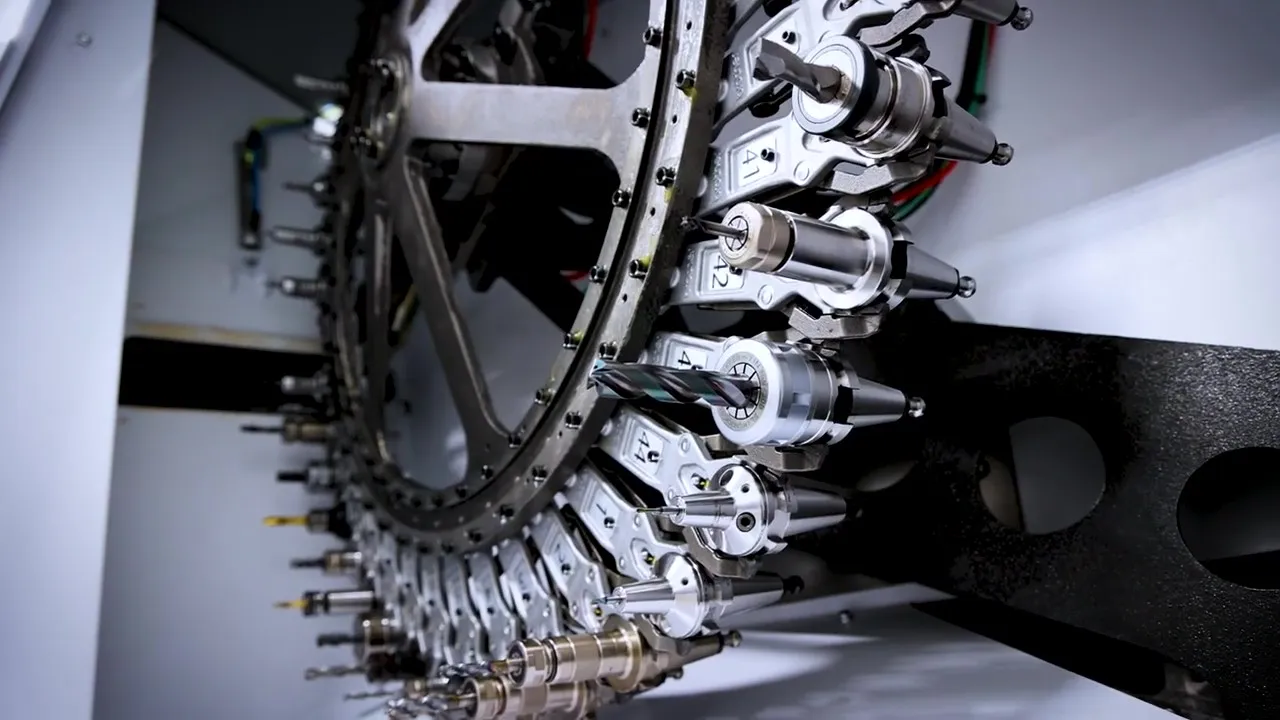

64 (21-Tool Turret + 43-Tool Stocker) |
| Tool-to-Tool Time |
0.6 sec. (Turret) |
| Chip-to-Chip Time |
1.3 sec. (Turret) |
| Tool Shank Type |
MAS-BT30 |
| Maximum Tool Length |
9.8" |
| Maximum Tool Diameter |
3.1" Turret / 2.3" Stocker (3.1" Without Adjacent Tool) |
| Maximum Tool Weight |
6.6 lbs. |
| Specification |
Detail |
| 5-Axis Machining |
Yes |
| X Axis Travel |
11.8" |
| Y Axis Travel |
17.3" |
| Z Axis Travel |
15.0" |
| A Axis (deg.) |
-30 to +120 |
| C Axis (deg.) |
360 |
| Spindle RPM |
12,000 Standard / 10,000 High-Torque / 20,000 / 27,000 Optional |
| Tapping RPM |
6,000 / 8,000 (27,000 RPM Option) |
| Rapid Traverse |
1,969 IPM |
| Cutting Feedrate |
X, Y, Z: 0.04–1,181 IPM |
| Work Area Size |
Ø5.5" Standard / Ø6.7" High-Torque |
| Maximum Loading Capacity |
Table Side: 88 lbs. Standard / 165 lbs. High-Torque; Tail Side: 42 lbs. |
| ATC Capacity |
64 (21-Tool Turret + 43-Tool Stocker) |
| Tool-to-Tool Time |
0.6 sec. (Turret) |
| Chip-to-Chip Time |
1.3 sec. (Turret) |
| Tool Shank Type |
MAS-BT30 |
| Maximum Tool Length |
9.8" |
| Maximum Tool Diameter |
3.1" Turret / 2.3" Stocker (3.1" Without Adjacent Tool) |
| Maximum Tool Weight |
6.6 lbs. |
