5-Axis Horizontal Machining Centers

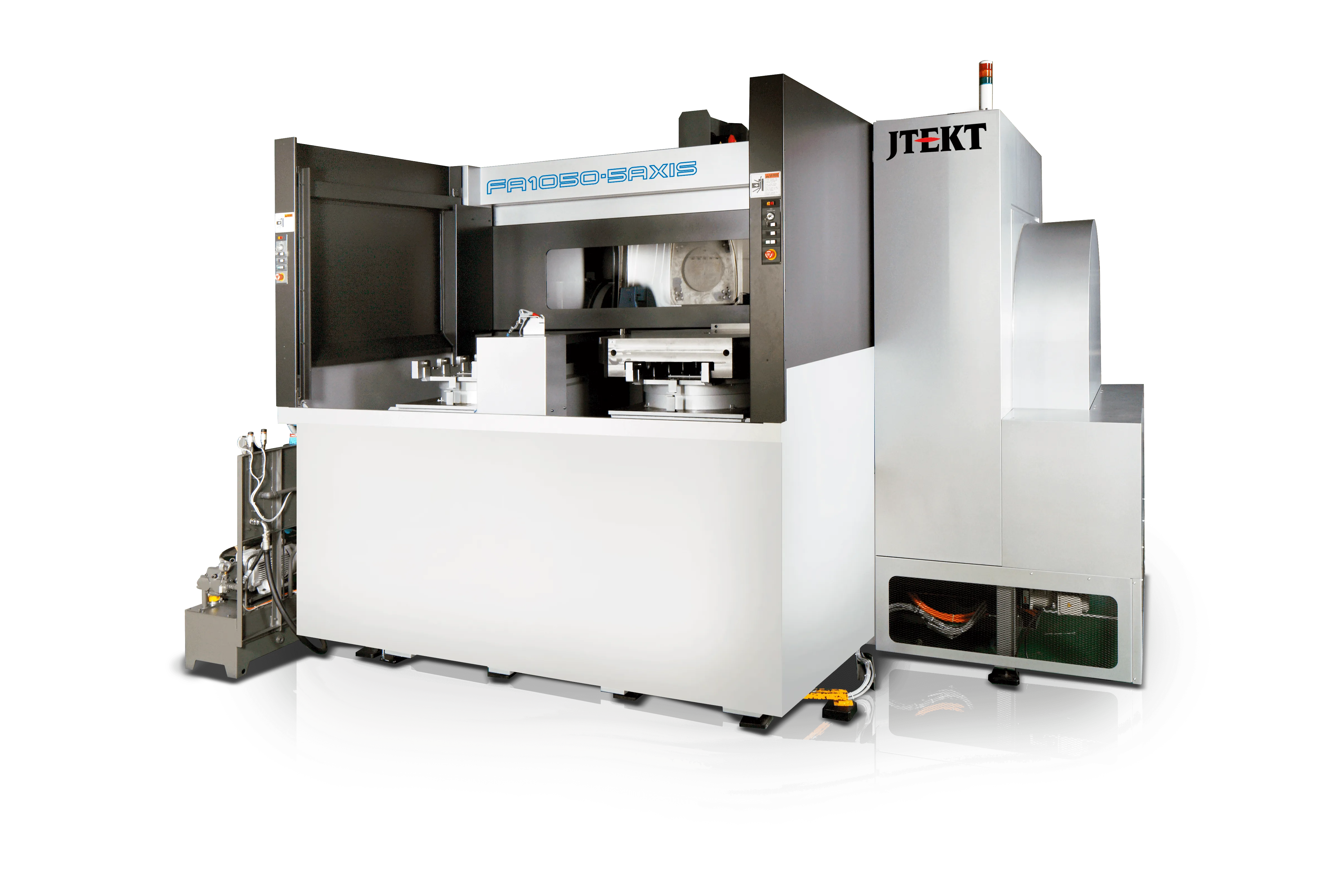

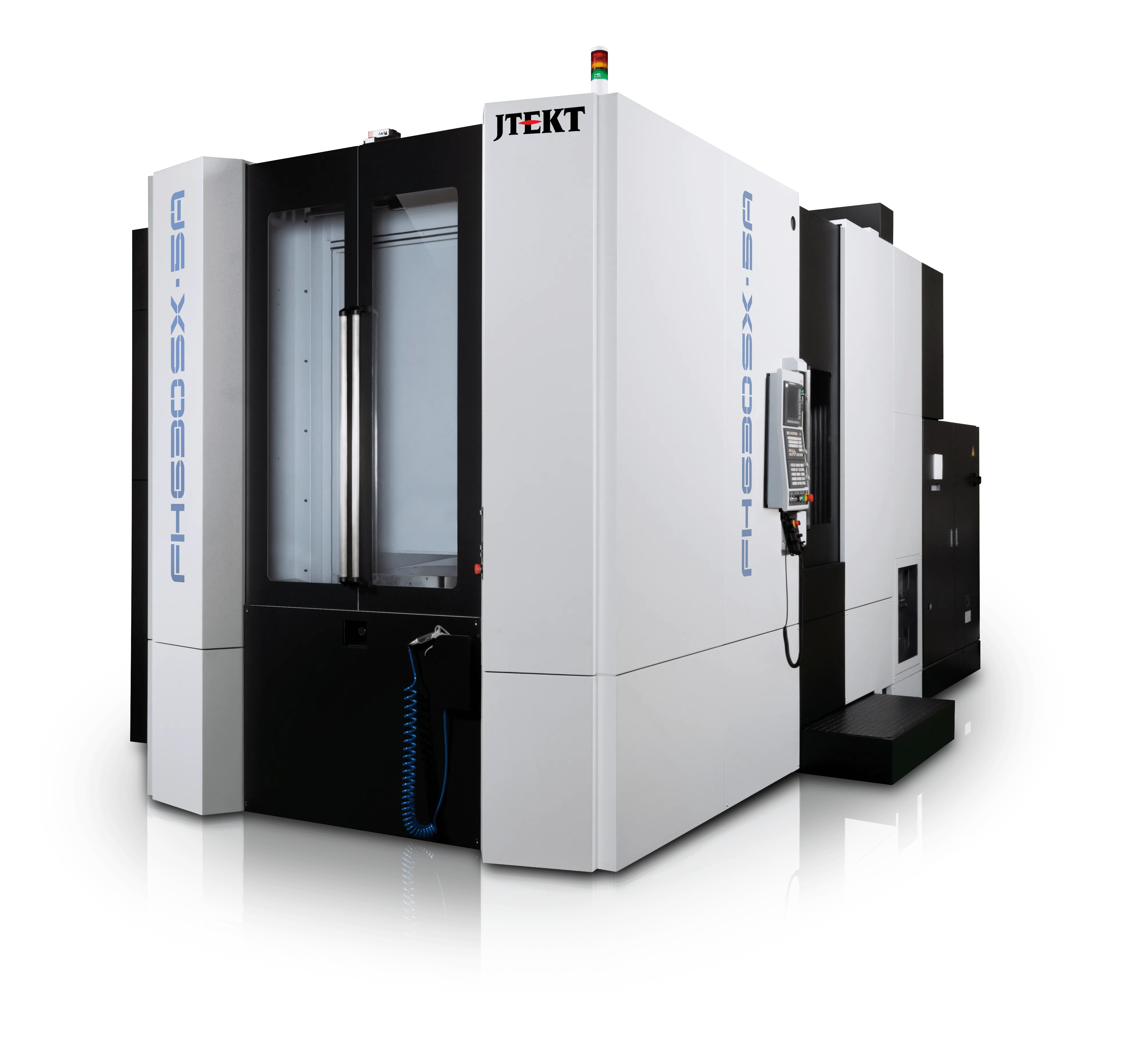

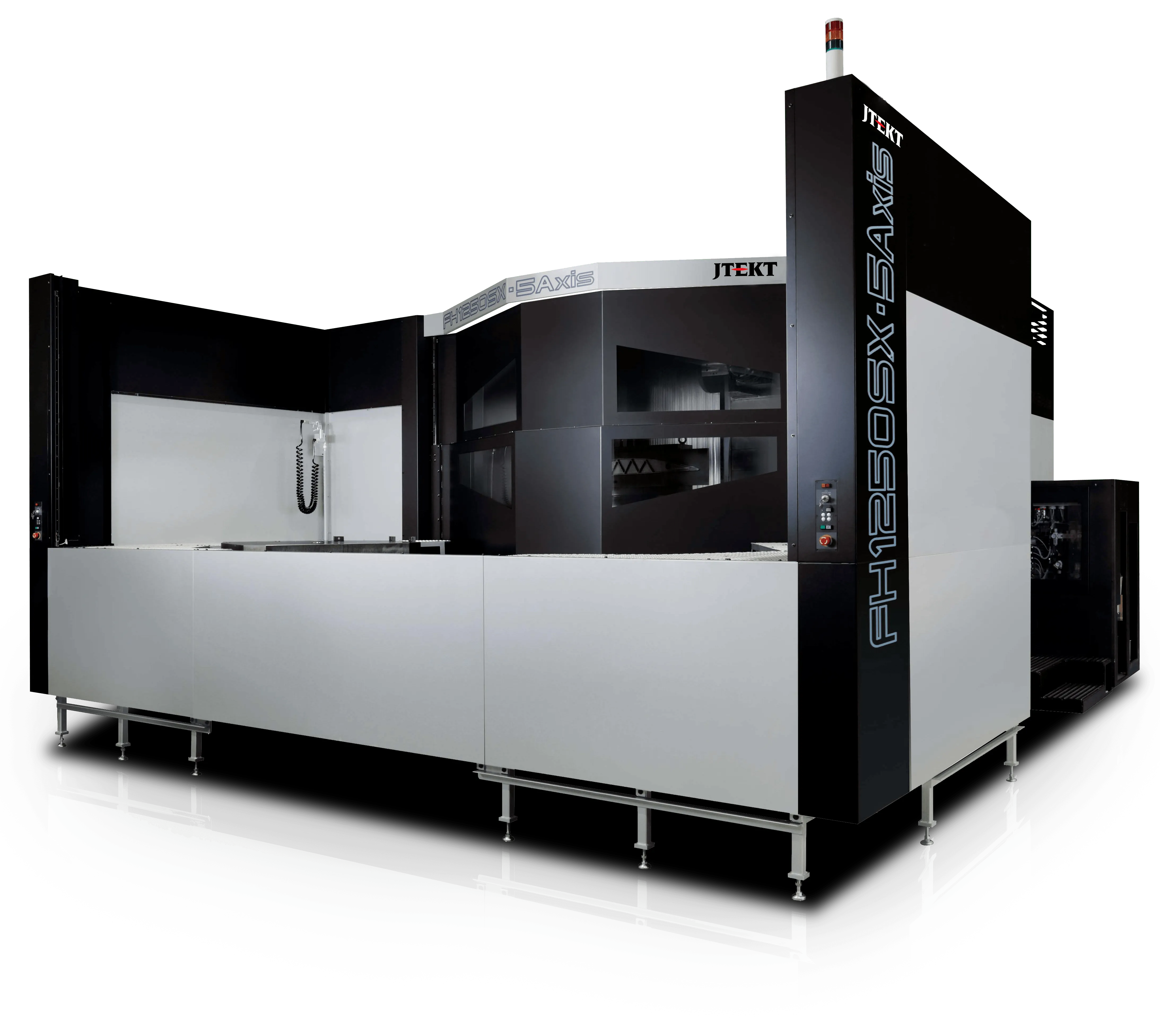

The FH1250SX 5-Axis, FA1050S 5-Axis, and FH630SX-i 5-Axis are advanced five-axis horizontal machining centers engineered for complex part machining. They feature high-speed spindles up to 15,000 RPM, robust tilting or trunnion tables, dual-drive mechanisms, and precise rotary encoders. With rapid feedrates, C-axis swivel capability, and replaceable taper designs, these machines provide high maintainability, rigidity, and precision for heavy or large components.
Request A Quote
Specifications
Specifications
| Pallet Size |
49.2" x 49.2" (1,250 mm x 1,250 mm) |
| X-axis Travel |
86.6" (2,200 mm) |
| Y-axis Travel (spindle head) |
63” (1,600 mm) |
| Z-Axis Travel |
72.8" (1,850 mm) |
| Max. Workpiece Swing (diameter) |
94.48” (2,400 mm) |
| Max. Workpiece Height |
70.87” (1,800 mm) |
| Maximum Load on Pallet |
11,000 lb (5,000 kg) |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
1,260 ipm (32 m/min) |
| Tool Storage Capacity |
60, 121, 240, 330 |
| Pallet Size |
41.3" x 41.3" (1,050 mm x 1,050 mm) |
| X-axis Travel |
59.1" (1,500 mm) |
| Y-axis Travel (spindle head) |
55.1" (1,400 mm) |
| Z-Axis Travel |
45.2” (1,150 mm) |
| Max. Workpiece Swing (diameter) |
51.18” (1,300 mm) |
| Max. Workpiece Height |
32.48” (825 mm) |
| Maximum Load on Pallet |
4,400 lb (2,000 kg) |
| Spindle Speed |
6,000, 8,000, 15,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
944 ipm (24 m/min) |
| Tool Storage Capacity |
60, 190, 240, 384 |
| Pallet Size |
24.8" x 24.8" (630 mm x 630 mm) |
| X-axis Travel |
31.5” (800 mm) |
| Y-axis Travel (spindle head) |
33.46” (850 mm) |
| Z-Axis Travel |
41.33” (1,050 mm) |
| Max. Workpiece Swing (diameter) |
46.06” (1,170 mm) |
| Max. Workpiece Height |
62.99" (1,600 mm) |
| Maximum Load on Pallet |
3,306 lb (1,500 kg) |
| Spindle Speed |
8,000 , 15,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
2,362 ipm (60 m/min) |
| Tool Storage Capacity |
60, 120, 240, 330 |
