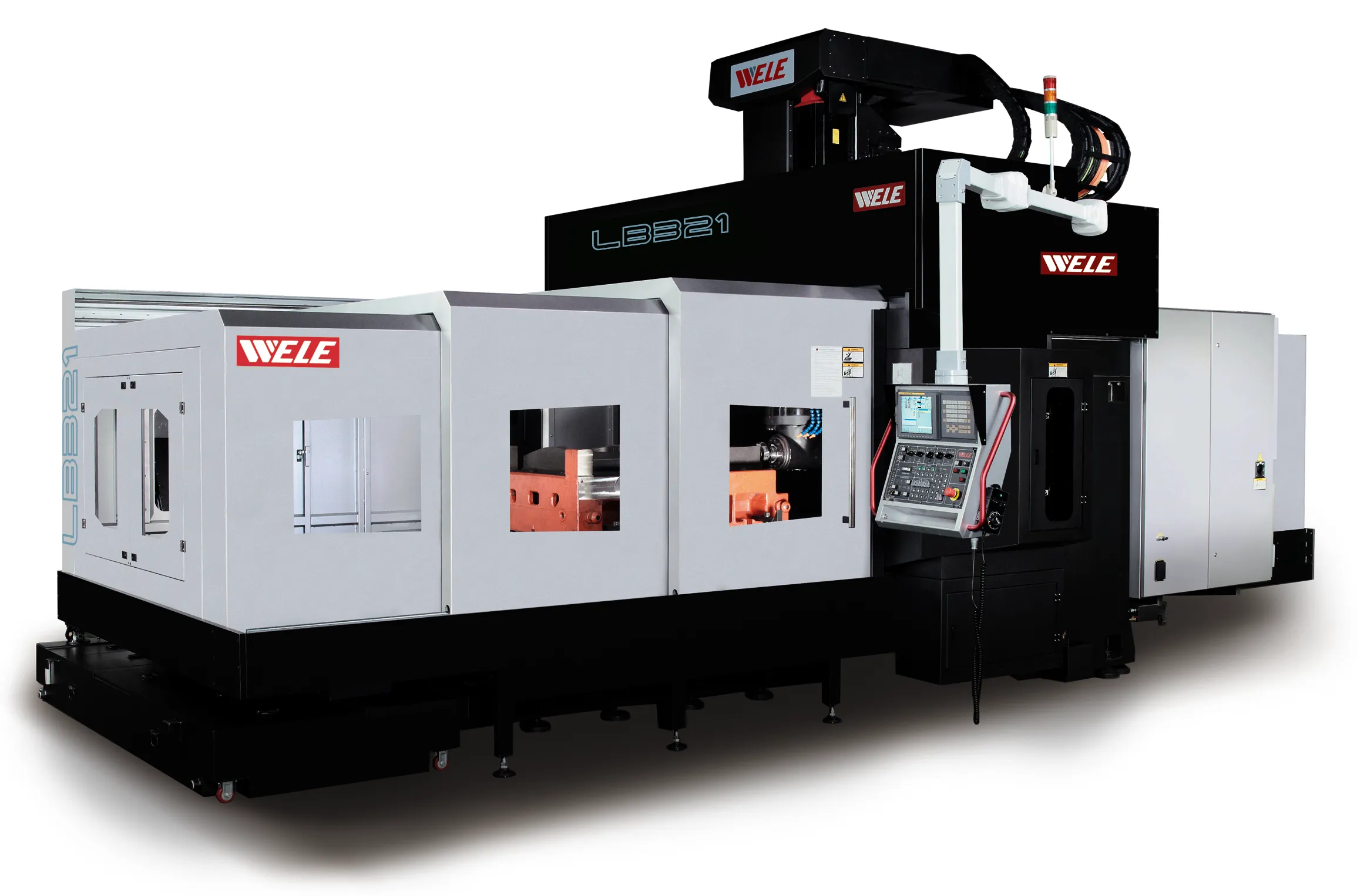

LB Series

The LB Series is a double column, fixed rail bridge machine designed for heavy cutting applications. It features a robust geared-head spindle, a hydraulic counterbalance system on the headstock, and a Meehanite cast iron base. These features allow the machine to excel in the heaviest of cuts.

The LB Series models have extended Y-axis travel with 5-face machining capabilities to allow for the machining of complex workpieces. This machine features automatic tool changes in the vertical and horizontal orientations and offers automatic clamping of the headstock. Headstock options include 30 degree, 90 degree, extension, and manual universal.

Request A Quote

Specifications

Table Size	118" x 78.7" (3,000 mm x 2,000 mm)
X-axis Travel	120.5" (3,060 mm)
Y-axis Travel (spindle head)	84.6" (2,150 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	90.5" (2,300 mm)
Maximum Table Load	26,450 lb (12,000 kg)
Spindle Speed	6,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	945 ipm, 787 ipm, 590 ipm (24m/min, 20m/min, 15m/min)
Tool Storage Capacity	32
Maximum Cutting Feedrate	394 ipm (10 m/min)

Table Size	157.4" x 78.7" (4,000 mm x 2,000 mm)
X-axis Travel	159.8" (4,060 mm)
Y-axis Travel (spindle head)	84.6" (2,150 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	90.5" (2,300 mm)
Maximum Table Load	33,000 lb (15,000 kg)
Spindle Speed	6,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	787 ipm (20 m/min)
Tool Storage Capacity	32

Table Size	196.8" x 78.7" (5,000 mm x 2,000 mm)
X-axis Travel	199.2" (5,060 mm)
Y-axis Travel (spindle head)	84.6" (2,150 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	90.5" (2,300 mm)
Maximum Table Load	39,600 lb (18,000 kg)
Spindle Speed	6,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	787 ipm (20 m/min)

Table Size	118" x 94.5" (3,000 mm x 2,400 mm)
X-axis Travel	120.5" (3,060 mm)
Y-axis Travel (spindle head)	100.4" (2,550 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	106.3" (2,700 mm)
Maximum Table Load	26,450 lb (12,000 kg)
Spindle Speed	6,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	787 ipm (20 m/min)
Tool Storage Capacity	32
Maximum Cutting Feedrate	394 ipm (10 m/min)

Table Size	157.4" x 94.5" (4,000 mm x 2,400 mm)
X-axis Travel	159.8" (4,060 mm)
Y-axis Travel (spindle head)	100.4" (2,550 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	106.3" (2,700 mm)
Maximum Table Load	33,000 lb (15,000 kg)
Spindle Speed	6,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	787 ipm (20 m/min)
Tool Storage Capacity	32
Maximum Cutting Feedrate	394 ipm (10 m/min)

Table Size	196.8" x 94.5" (5,000 mm x 2,400 mm)
X-axis Travel	199.2" (5,060 mm)
Y-axis Travel (spindle head)	100.4" (2,550 mm)
Y-axis Travel for -YM Configuration	125.9" (3,200 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	106.3" (2,700 mm)
Maximum Table Load	39,600 lb (18,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Rapid Feedrate (X and Z axes)	590 ipm (15 m/min)
Rapid Feedrate (X,Y and Z)	787 ipm (20 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	498" x 224" x 171" (12,660 mm x 5,700 mm x 4,350 mm)
Cutting feedrate	97,900 lb (45,500 kg)

Table Size	236.2" x 94.5" (6,000 mm x 2,400 mm)
X-axis Travel	238.5" (6,060 mm)
Y-axis Travel (spindle head)	100.4" (2,550 mm)
Y-axis Travel for -YM Configuration	125.9" (3,200 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	106.3" (2,700 mm)
Maximum Table Load	44,000 lb (20,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	492 ipm (12 m/min)
Rapid Feedrate (X,Y and Z)	787 ipm (20 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	315 ipm (8 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	568" x 224" x 171" (14,415 mm x 5,700 mm x 4,350 mm)
Cutting feedrate	105,800 lb (48,000 kg)

Table Size	157.4" x 94.5" (4,000 mm x 2,400 mm)
X-axis Travel	159.8" (4,060 mm)
Y-axis Travel (spindle head)	131.9" (3,350 mm)
Y-axis Travel for -YM Configuration	157.4" (4,000 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	137.8" (3,500 mm)
Maximum Table Load	33,000 lb (15,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	708 ipm (18 m/min)
Rapid Feedrate (X,Y and Z)	590 ipm (15 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	423" x 310" x 171" (10,747 mm x 7,648 mm x 4,353 mm)
Cutting feedrate	112,000 lb (51,000 kg)

Table Size	196.8" x 94.5" (5,000 mm x 2,400 mm)
X-axis Travel	199.2" (5,060 mm)
Y-axis Travel (spindle head)	131.9" (3,350 mm)
Y-axis Travel for -YM Configuration	157.4" (4,000 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	39,600 lb (18,000 kg)
Maximum Table Load	33,000 lb (15,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	590 ipm (15 m/min)
Rapid Feedrate (X,Y and Z)	590 ipm (15 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	515" x 310" x 171" (13,071 mm x 7,648 mm x 4,353 mm)
Cutting feedrate	116,600 lb (53,000 kg)

Table Index	236.2" x 94.5" (6,000 mm x 2,400 mm)
X-axis Travel	238.5" (6,060 mm)
Y-axis Travel (spindle head)	131.9" (3,350 mm)
Y-axis Travel for -YM Configuration	157.4" (4,000 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm), 47.2" (1,200 mm), 55.1" (1,400 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	137.8" (3,500 mm)
Maximum Table Load	44,000 lb (20,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	492 ipm (12 m/min)
Rapid Feedrate (X,Y and Z)	590 ipm (15 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	597" x 310" x 171" (15,161 mm x 7,648 mm x 4,353 mm)
Cutting feedrate	121,000 lb (55,000 kg)

LB Series

Specifications

Specifications

LB321

LB421

LB521

LB325

LB425

LB525

LB625

LB433

LB533

LB633
