SB Series

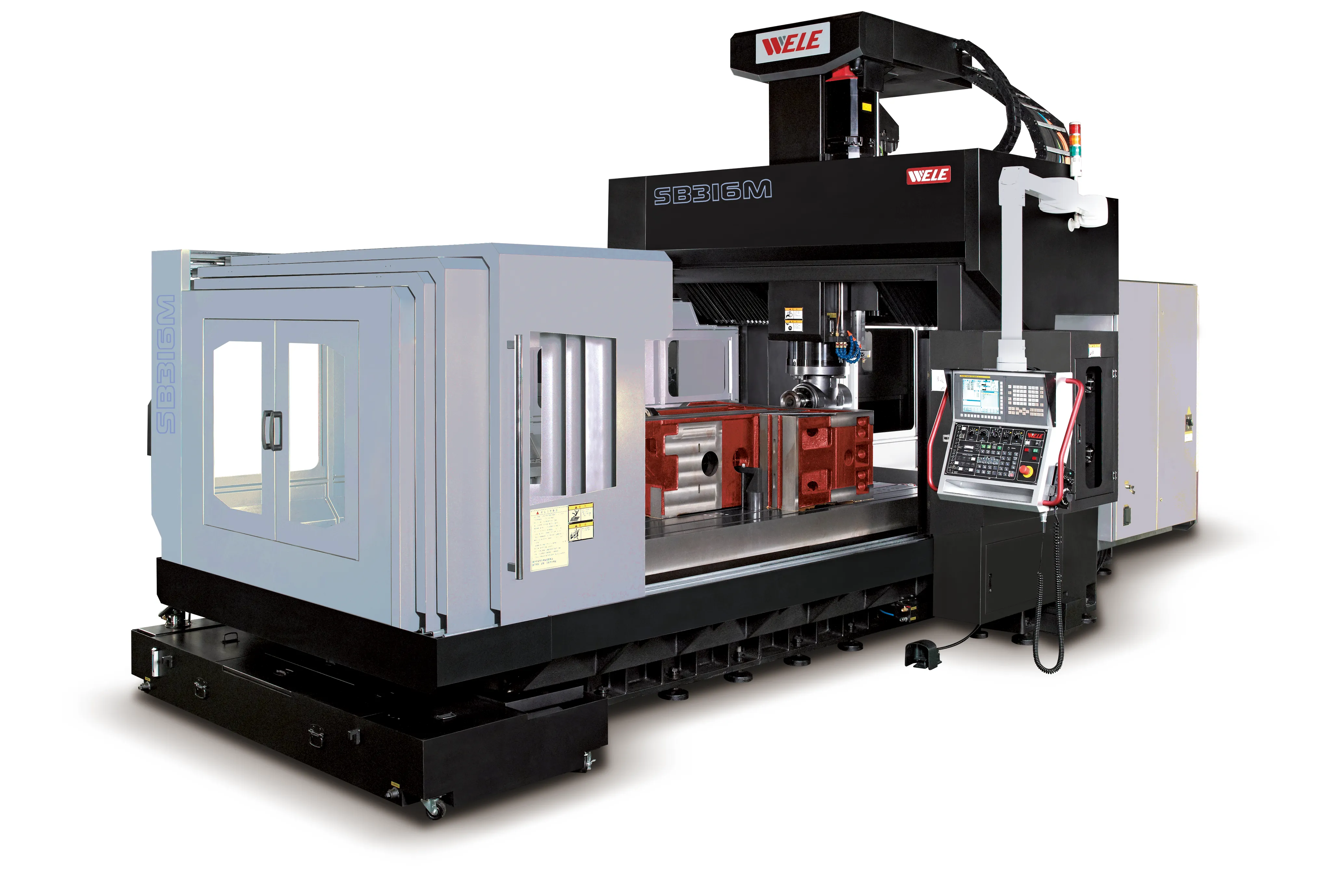

The SB216, SB316, and SB416 are fixed rail bridge machines built for heavy cutting applications, featuring roller guides, hydraulic counterbalance headstocks, and powerful spindles for precise, high-speed machining. The YM variants of each model add extended Y-axis travel and 5-face machining capabilities, automatic tool changes in vertical and horizontal orientations, automatic headstock clamping, and flexible headstock options including 30°, 90°, extension, and manual universal for complex workpieces.

Request A Quote

Specifications

Table Size	78.7"x 59" (2,000 mm x 1,500 mm)
X-axis Travel	83.5" (2,120 mm)
Y-axis Travel (spindle head)	63" (1,600 mm)
Y-axis Travel for -YM Configuration	90.5" (2,300 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	66.9" (1,700 mm)
Maximum Table Load	17,600 lb (8,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	945 ipm (24 m/min)
Rapid Feedrate (X,Y and Z)	945 ipm (24 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	246" x 183" x 171" (6,250 mm x 4,650 mm x 4,350 mm)
Cutting feedrate	48,500 lb (22,000 kg)

Table Size	118" x 59" (3,000 mm x 1,500 mm)
X-axis Travel	120.5" (3,060 mm)
Y-axis Travel (spindle head)	63" (1,600 mm)
Y-axis Travel for -YM Configuration	90.5" (2,300 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	66.9" (1,700 mm)
Maximum Table Load	22,000 lb (10,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	945 ipm (24 m/min)
Rapid Feedrate (X,Y and Z)	945 ipm (24 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	327" x 183" x 171" (8,300 mm x 4,650 mm x 4,350 mm)
Cutting feedrate	59,500 lb (27,000 kg)

Table Size	157.4" x 59" (4,000 mm x 1,500 mm)
X-axis Travel	159.8" (4,060 mm)
Y-axis Travel (spindle head)	63" (1,600 mm)
Y-axis Travel for -YM Configuration	90.5" (2,300 mm)
Z-Axis Travel	31.5" (800 mm)
Optional Z-axis Travel	39.4" (1,000 mm)
Distance Between Table and Spindle Nose in Vertical Position	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	66.9" (1,700 mm)
Maximum Table Load	26,450 lb (12,000 kg)
Spindle Speed	6,000 RPM: 35 HP (26 kW) / 30 HP (22 kW)
Spindle Speed	5:000 RPM: 40 HP (30 kW) / 35 HP (26 kW)
Spindle Torque	6,000 RPM: 461 ft-lb (626.2 Nm)
Spindle Torque	5,000 RPM: 1,115 ft-lb (1,512 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Gearbox (CAT50): 5,000 RPM
Spindle Taper	945 ipm (24 m/min)
Rapid Feedrate (X,Y and Z)	945 ipm (24 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60, 90, 120 Optional)
Rapid feedrate - Y axis	407" x 183" x 171" (10,358 mm x 4,650 mm x 4,350 mm)
Cutting feedrate	63,934 lb (29,000 kg)
