VB Series

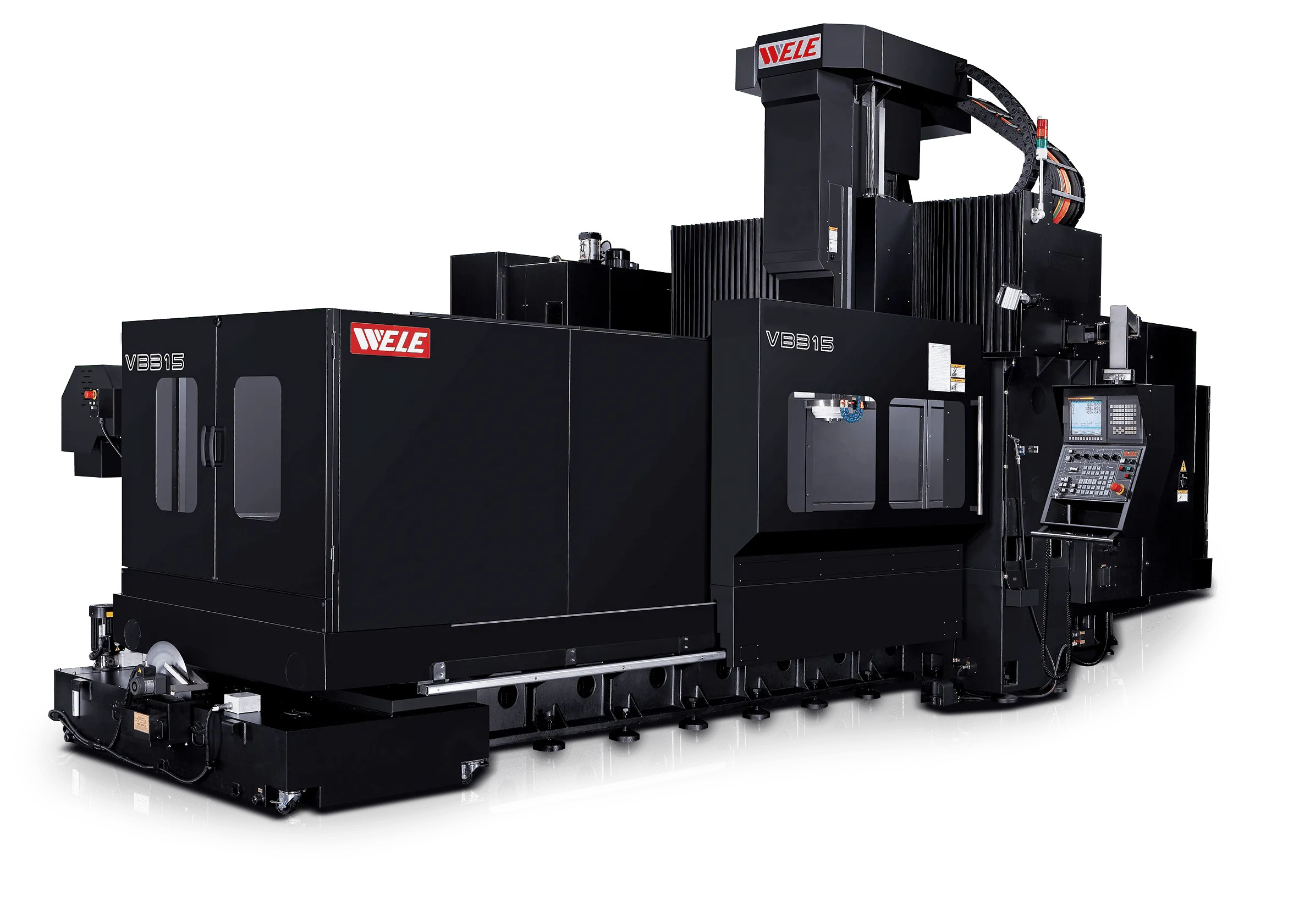

The VB215, VB315, VB320, and VB420 are heavy-duty bridge and double-column vertical machining centers built for precision and high-performance cutting. They feature robust roller or box guideways, powerful spindles, and hydraulic counterbalance systems for smooth, energy-efficient operation, delivering accurate cuts without sacrificing speed or tool life.

Request A Quote

Specifications

Table Size	82.6"x 55.1" (2,100 mm x 1,400 mm)
X-axis Travel	79.5" (2,020 mm)
Y-axis Travel (spindle head)	59" (1,500 mm)
Z-Axis Travel	31.5" (800 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	62.9" (1,600 mm)
Maximum Table Load	17,600 lb (8,000 kg)
Spindle Speed	35 HP (26 kW) / 30 HP (22 kW)
Spindle Torque	461 ft-lb (626.2 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Taper	944 ipm (24 m/min)
Rapid Feedrate (X,Y and Z)	944 ipm (24 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60 Optional)
Rapid feedrate - Y axis	317" x 179" x 163" (8,058 mm x 4,550 mm x 4,128 mm)
Cutting feedrate	44,000 lb (20,000 kg)
Chip Conveyor	Hinged Belt Lift Up type, 47" Drop Height from floor

Table Size	122" x 55.1" (3,100 mm x 1,400 mm)
X-axis Travel	118.8" (3,020 mm)
Y-axis Travel (spindle head)	59" (1,500 mm)
Z-Axis Travel	31.5" (800 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	62.9" (1,600 mm)
Maximum Table Load	22,046 lb (10,000 kg)
Spindle Speed	35 HP (26 kW) / 30 HP (22 kW)
Spindle Torque	461 ft-lb (626.2 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Taper	945 ipm (24 m/min)
Rapid Feedrate (X,Y and Z)	945 ipm (24 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60 Optional)
Rapid feedrate - Y axis	394" x 179" x 163" (10,029 mm x 4,550 mm x 4,128 mm)
Cutting feedrate	55,116 lb (25,000 kg)
Chip Conveyor	Hinged Belt Lift Up type, 47" Drop Height from floor

Table Size	122" x 70.8" (3,100 mm x 1,800 mm)
X-axis Travel	118.8" (3,020 mm)
Y-axis Travel (spindle head)	78.7" (2,000 mm)
Z-Axis Travel	31.5" (800 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	82.6" (2,100 mm)
Maximum Table Load	26,400 lb (12,000 kg)
Spindle Speed	35 HP (26 kW) / 30 HP (22 kW)
Spindle Torque	461 ft-lb (626.2 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Taper	945 ipm (24 m/min)
Rapid Feedrate (X,Y and Z)	787.4 ipm (20 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60 Optional)
Rapid feedrate - Y axis	330" x 208" x 163" (8,376 mm x 5,276 mm x 4,152 mm)
Cutting feedrate	59,400 lb (27,000 kg)
Chip Conveyor	Hinged Belt Lift Up type, 47" Drop Height from floor

Table Size	161.4" x 70.8" (4,100 mm x 1,800 mm)
X-axis Travel	158.2" (4,020 mm)
Y-axis Travel (spindle head)	78.7" (2,000 mm)
Z-Axis Travel	31.5" (800 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Distance Between Columns	82.6" (2,100 mm)
Maximum Table Load	33,000 lb (15,000 kg)
Spindle Speed	35 HP (26 kW) / 30 HP (22 kW)
Spindle Torque	461 ft-lb (626.2 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Taper	708.5 ipm (18 m/min)
Rapid Feedrate (X,Y and Z)	787.4 ipm (20 m/min)
Tool Storage Capacity	590 ipm (15 m/min)
Maximum Cutting Feedrate	394 ipm (10 m/min)
Rapid feedrate - X axis	32 Standard (60 Optional)
Rapid feedrate - Y axis	414" x 207" x 163" (10,520 mm x 5,276 mm x 4,152 mm)
Cutting feedrate	66,000 lb (30,000 kg)
Chip Conveyor	Hinged Belt Lift Up type, 47" Drop Height from floor
