Camshaft Grinders
Camshaft Grinders
Camshaft Grinders

Camshaft Grinders

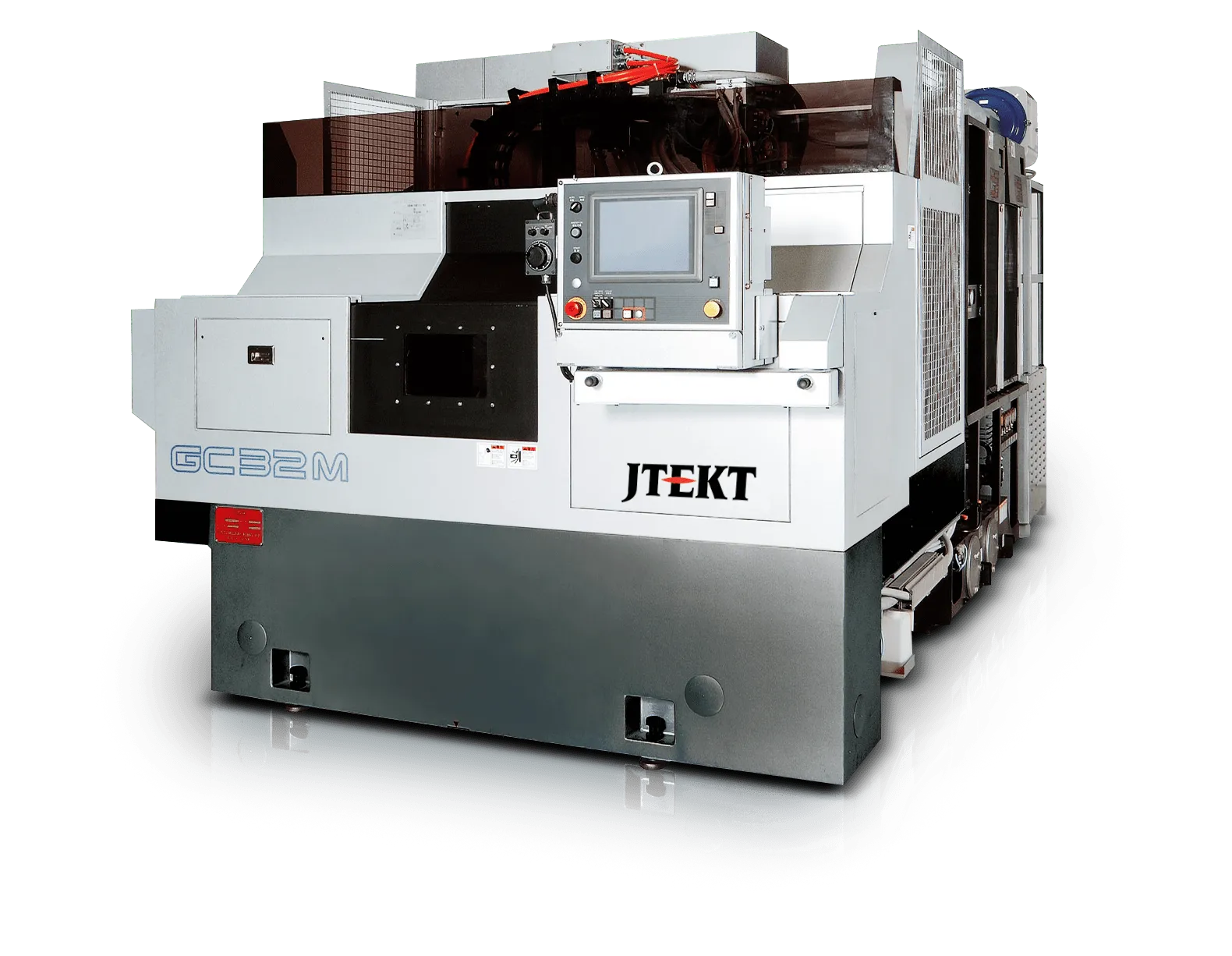

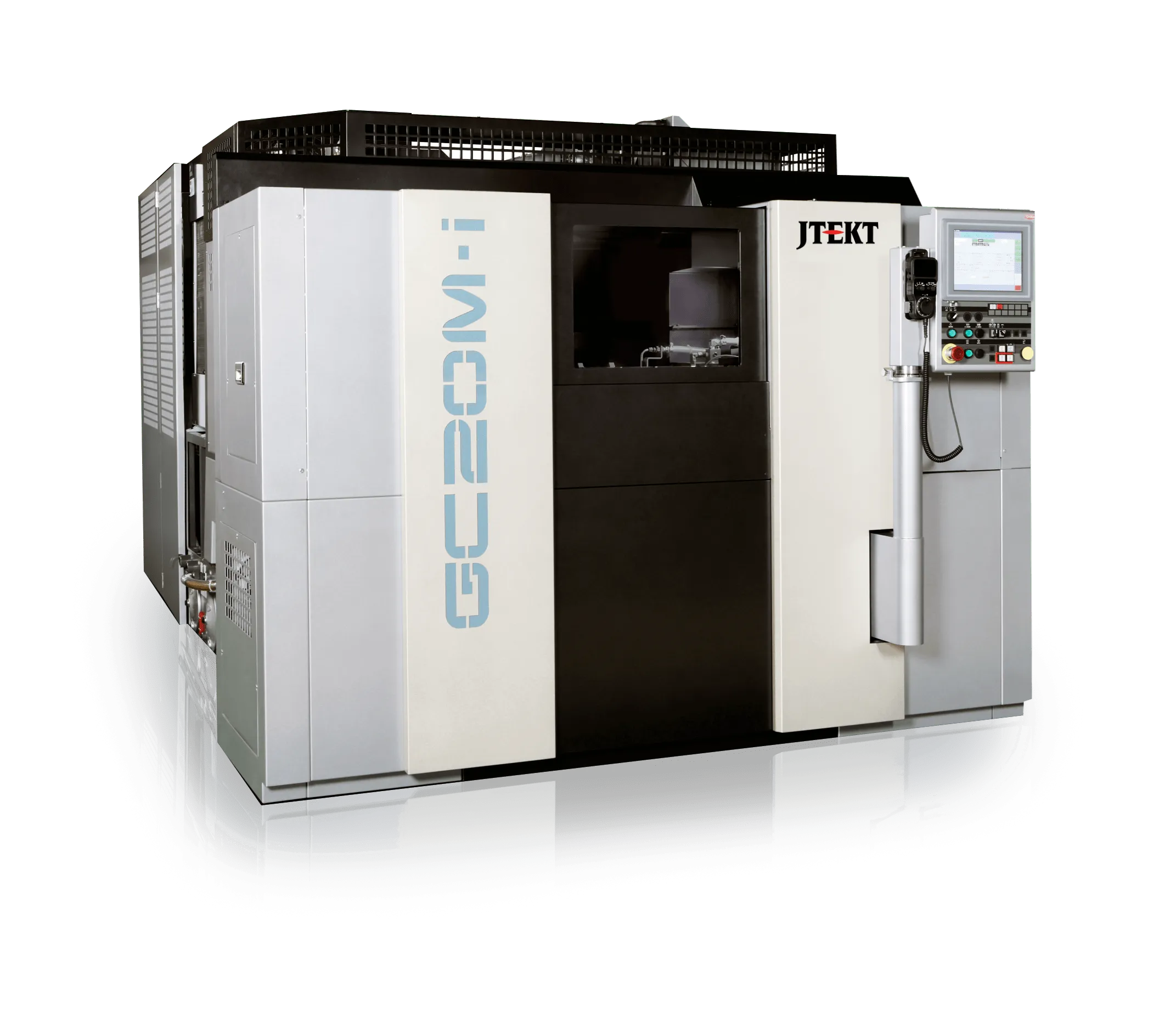

The GC20Mi and GC32 are high-speed camshaft grinding machines, CBN-capable, featuring TOYODA STAT® bearings, floating plates, and Toyoda GC50 controls for precise and efficient grinding in a compact footprint.

Request A Quote

Specifications

Specifications

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 13.8" (350 mm)
Grinding Diameter (Max) 11.8 (300) in (mm)
Wheel Surface Speed φ350 wheel: 4.7 (120) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 24.8" (630 mm)
Grinding Diameter (Max) 11.8 (300) in (mm)
Wheel Surface Speed φ350 wheel: 4.7 (120) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 24.8" (630 mm)
Grinding Diameter (Max) 7.8 (200) in (mm)
Wheel Surface Speed 6.2 (160) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 78.7" (2,000 mm)
Grinding Diameter (Max) 13.7 (350) in (mm)
Wheel Surface Speed 23,500 (120) SFPM (m/s)
