Crankshaft Grinders
Crankshaft Grinders
Crankshaft Grinders
Crankshaft Grinders

Crankshaft Grinders

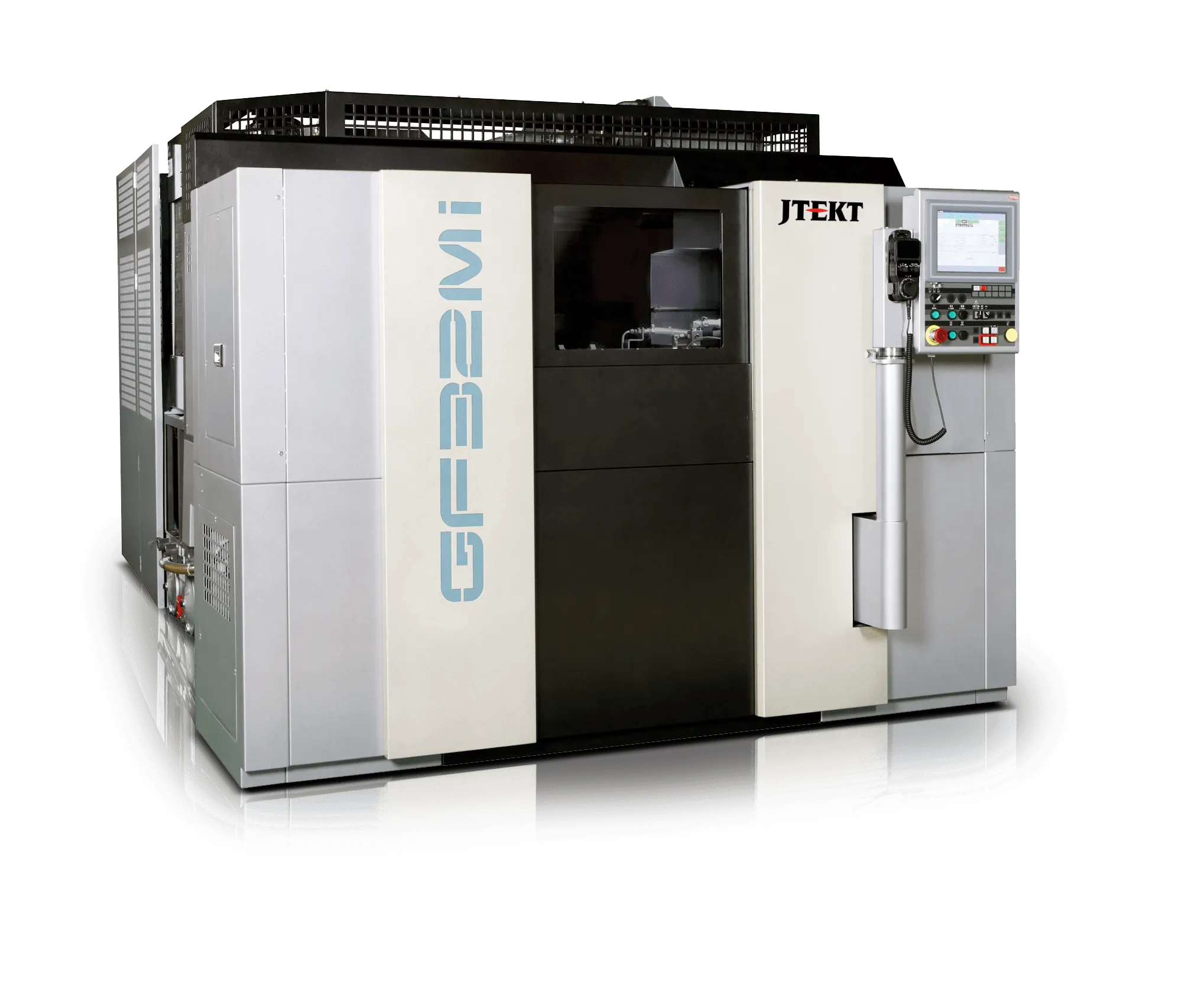

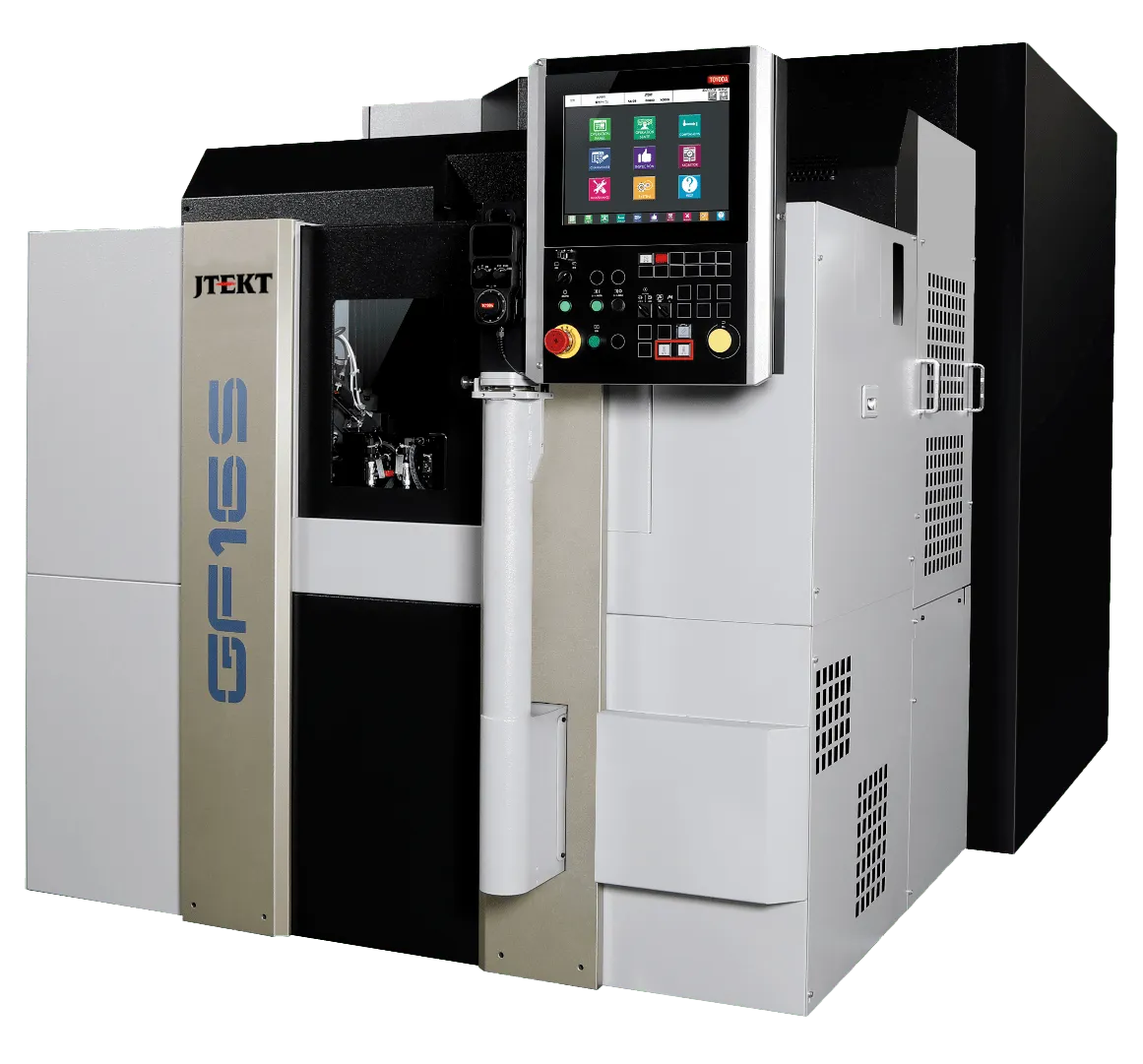

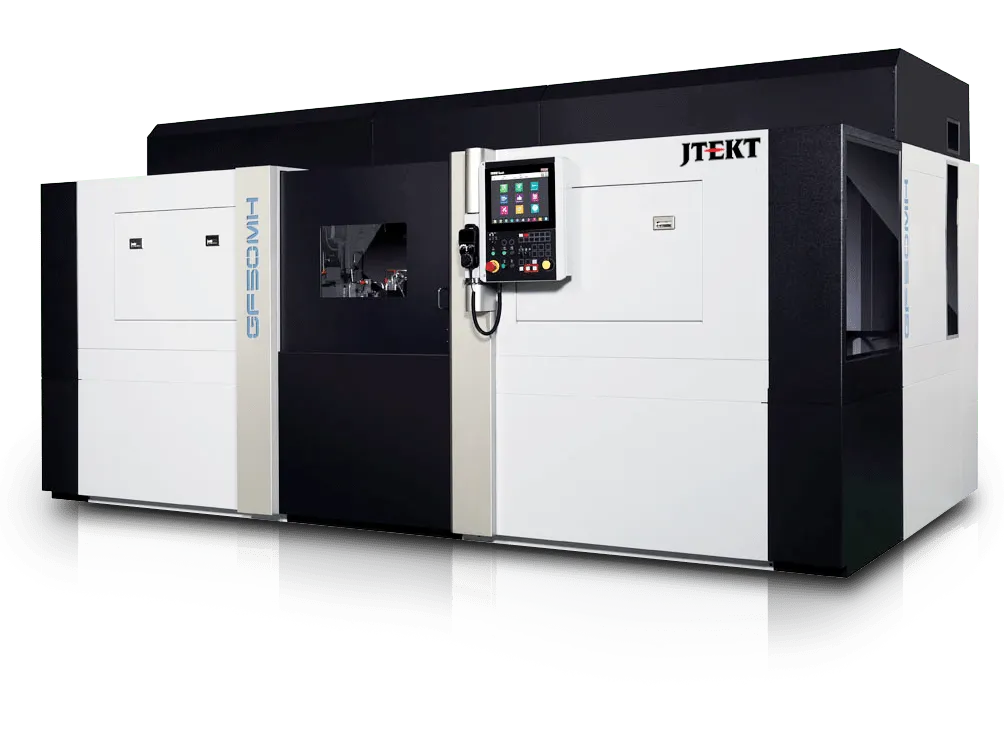

The GF16S, GF32Mi, and GF50Mi are high-precision crankshaft grinding machines designed for accuracy and efficiency. They feature TOYODA STAT® bearings, floating plates, and advanced Toyoda GC50 or GC70 controls, with single or dual linear motor wheelheads depending on the model.

Request A Quote

Specifications

Specifications

Swing Over Table Ø 6.29" (160 mm)
Distance Between Centers 9.84" (250 mm)
Grinding Diameter (Max) 6.2 (160) in (mm)
Wheel Surface Speed 3.1 (80) SFPM (m/s)

Swing Over Table Ø 6.29" (160 mm)
Distance Between Centers 12.60" (320 mm)
Grinding Diameter (Max) 6.2 (160) in (mm)
Wheel Surface Speed 3.1 (80) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 13.8" (350 mm)
Grinding Diameter (Max) 2.7 (70) in (mm)
Wheel Surface Speed 4.7 (120) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 24.8" (630 mm)
Grinding Diameter (Max) 2.7 (70) in (mm)
Wheel Surface Speed 4.7 (120) SFPM (m/s)

Swing Over Table Ø 19.7" (500 mm)
Distance Between Centers 27.6" (700 mm)
Grinding Diameter (Max) 3.3 (85) in (mm)
Wheel Surface Speed 4.7 (120) SFPM (m/s)

Swing Over Table Ø 19.7" (500 mm)
Distance Between Centers 55.1" (1,400 mm)
Grinding Diameter (Max) 3.3 (85) in (mm)
Wheel Surface Speed 4.7 (120) SFPM (m/s)
