E Series OD Grinders

E Series OD Grinders

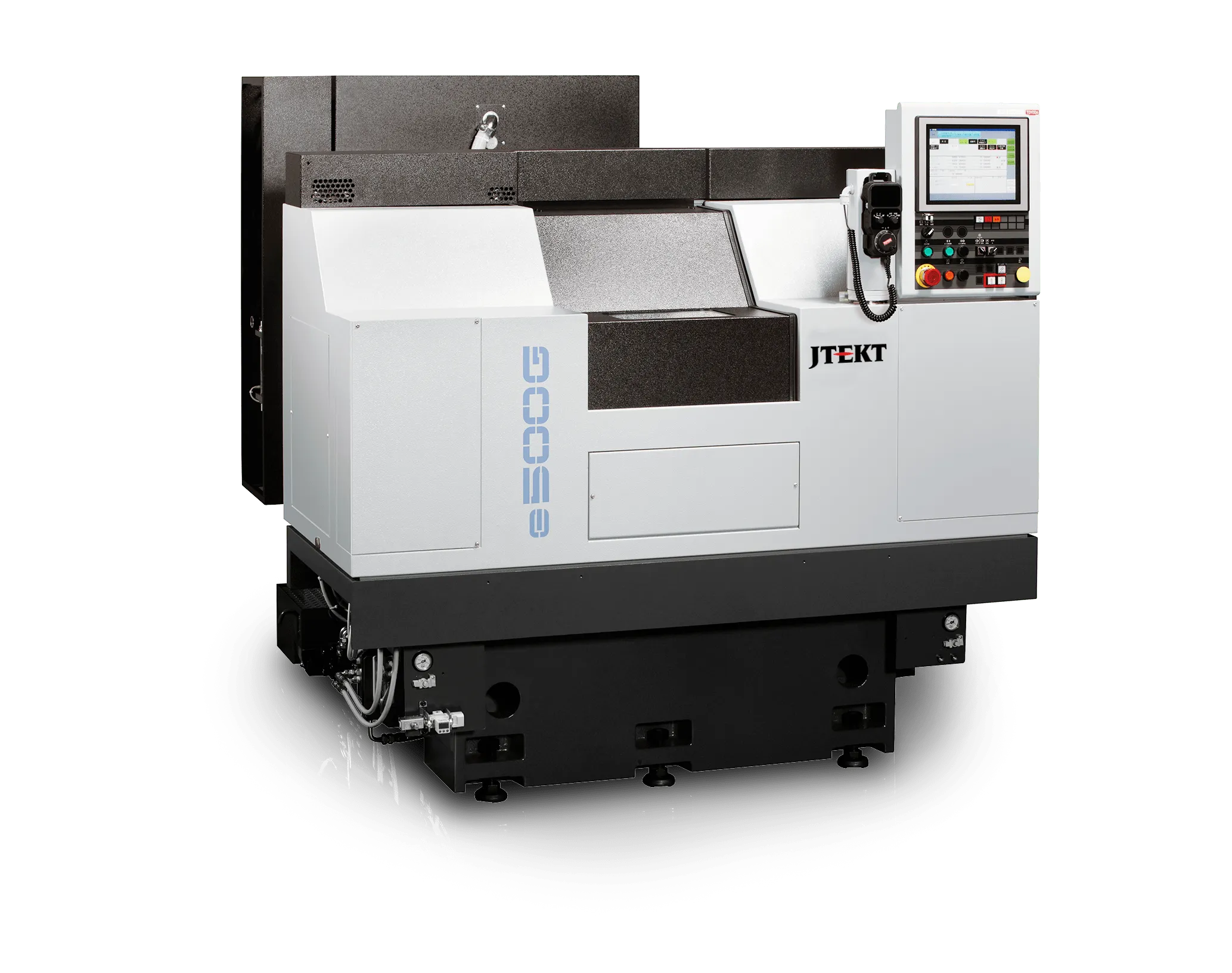

The e500G is a compact grinding machine for mass production of transmission components. Dual-center drive eliminates the driving dog, allowing all surfaces to be accessed by the extremely rigid and accurate TOYODA STAT® BEARING.

Request A Quote

Specifications

Specifications

Swing Over Table Ø 7.9" (200 mm)
Distance Between Centers 11.0" (280 mm)
Maximum Load Between Centers 11.0" (280 mm)
Wheel Surface Speed 11 lb (5 kg)
Grinding Diameter 8,860 SFPM (45 m/s)
