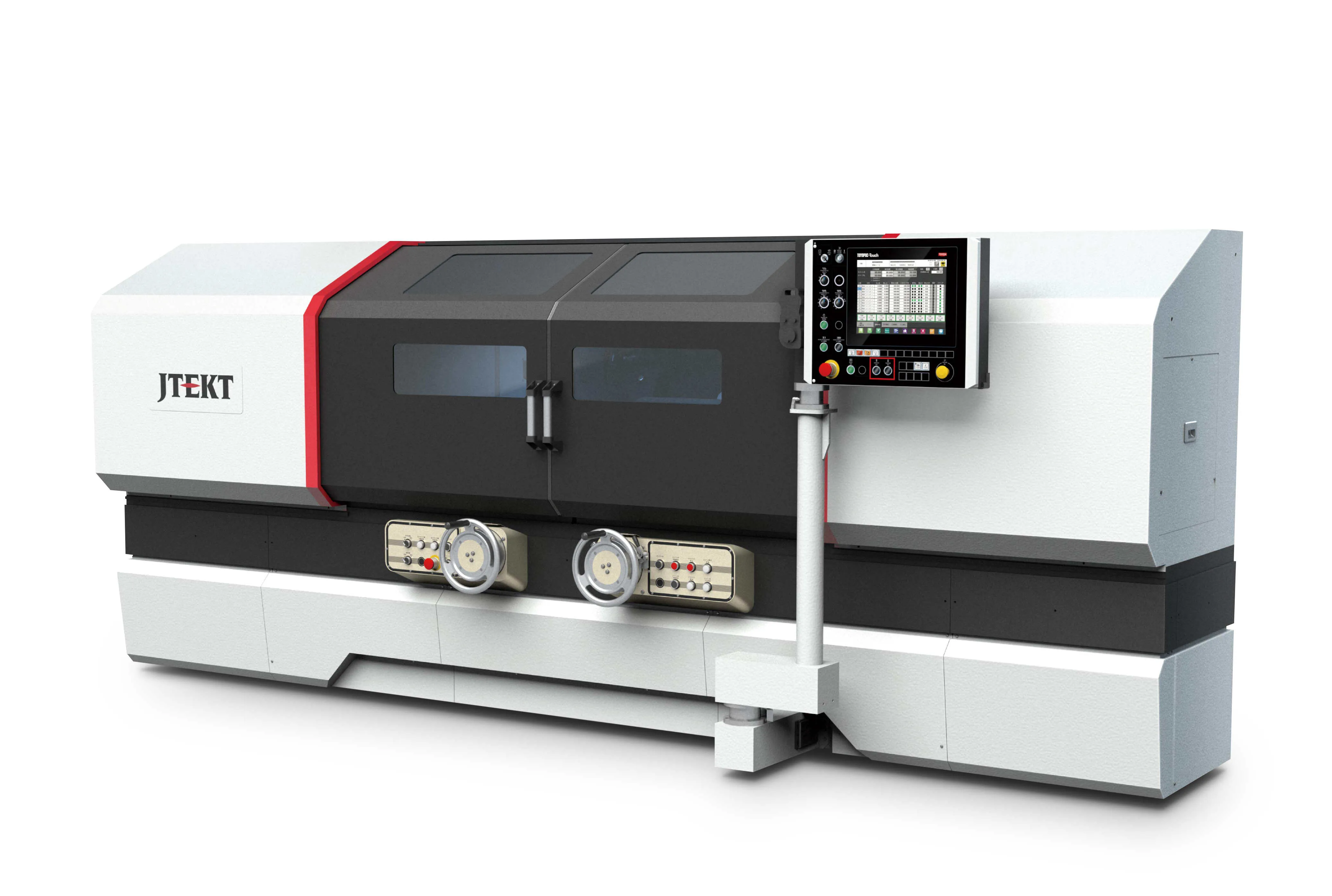

G3 Series

Setting standards in productivity - versatile, universal grinding machine with a manually adjustable wheelhead for straight and angular applications.

Specifications

Swing Over Table	Ø 12.6” (320 mm)
Distance Between Centers	19.6” (500 mm)
Maximum Load Between Centers	330 lb (150 kg)
Wheel Surface Speed	33 m/s (6,500 sfpm)
Grinding Diameter	300 mm (11.8”)
Wheelhead Infeed (Rapid Feedrate)	394 IPM (10 m/min)
Wheelhead Infeed (Smallest Input Increment)	0.000010” (0.0001 mm)
Table Traverse (Rapid Feedrate)	394 IPM (10 m/min)
Table Traverse (Smallest Input Increment)	0.000010” (0.0001 mm)
Wheel Spindle	30 Degree Fixed
Table Swiveling Unit (Swivel Unit)	12.5° to 0°
