GE Series OD Grinders

GE Series OD Grinders

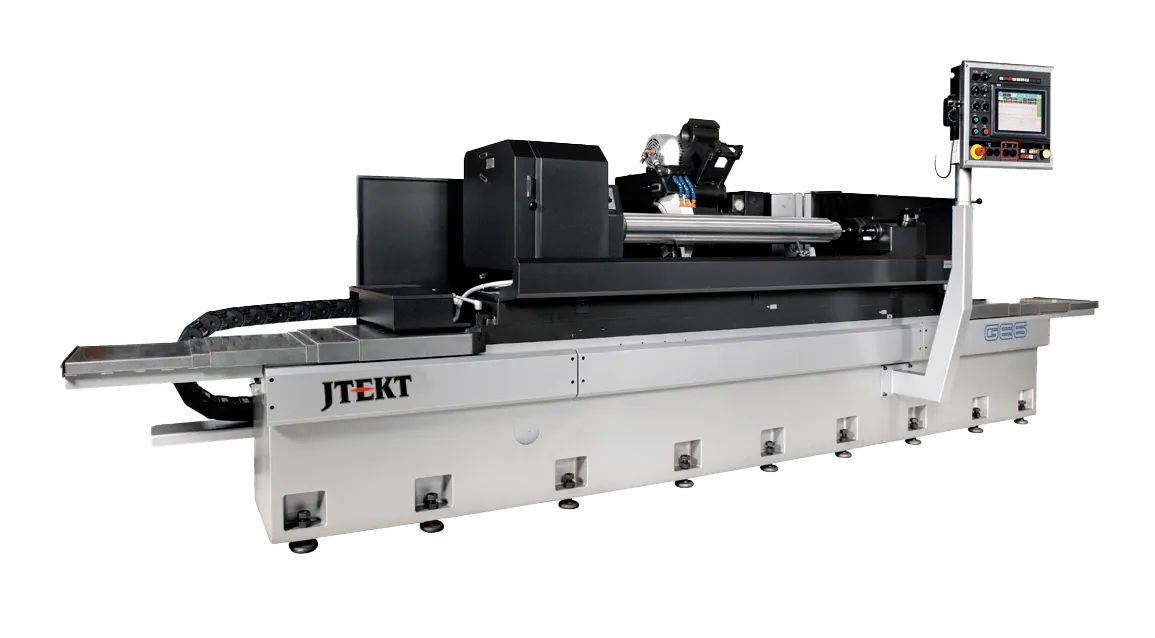

The GE6 is a cylindrical grinding machine designed for large workpieces. It features a hydrostatic wheelhead bearing and way system, handscraped precision surfaces, and the patented TOYODA STAT® BEARING and floating plate to ensure high accuracy and positioning. The GE6 is made from a single Meehanite casting for ultimate thermal stability.

Request A Quote

Specifications

Specifications

Swing Over Table Ø 22.0" (560 mm)
Distance Between Centers 39.0" (1,000 mm)
Optional Wheel Surface Speed 8,500 SFPM (43 m/s)
Grinding Diameter (Max) 21.6 (550) in (mm)
Wheel Surface Speed 6,500 (30) SFPM (m/s)

Swing Over Table Ø 22.0" (560 mm)
Distance Between Centers 63.0" (1,600 mm)
Optional Wheel Surface Speed 8,500 SFPM (43 m/s)
Grinding Diameter (Max) 21.6 (550) in (mm)
Wheel Surface Speed 6,500 (30) SFPM (m/s)

Swing Over Table Ø 22.0" (560 mm)
Distance Between Centers 98.4" (2,500 mm)
Optional Wheel Surface Speed 8,500 SFPM (43 m/s)
Grinding Diameter (Max) 21.6 (550) in (mm)
Wheel Surface Speed 6,500 (30) SFPM (m/s)

Swing Over Table Ø 22.0" (560 mm)
Distance Between Centers 125.9" (3,200 mm)
Optional Wheel Surface Speed 8,500 SFPM (43 m/s)
Grinding Diameter (Max) 21.6 (550) in (mm)
Wheel Surface Speed 6,500 (30) SFPM (m/s)

Swing Over Table Ø 22.0" (560 mm)
Distance Between Centers 157.4" (4,000 mm)
Optional Wheel Surface Speed 8,500 SFPM (43 m/s)
Grinding Diameter (Max) 21.6 (550) in (mm)
Wheel Surface Speed 6,500 (30) SFPM (m/s)
