GL Series OD Grinders
GL Series OD Grinders
GL Series OD Grinders
GL Series OD Grinders

GL Series OD Grinders

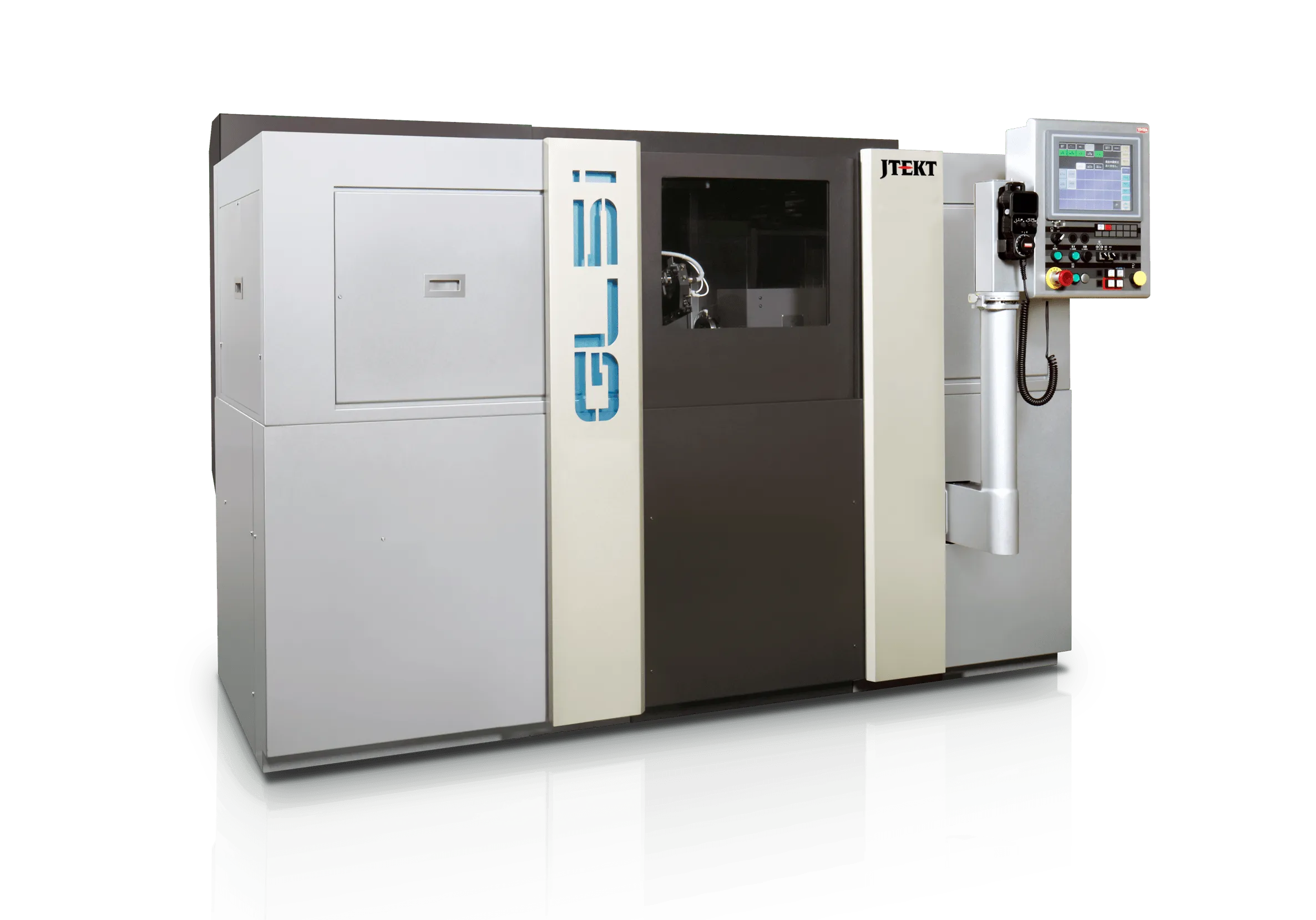

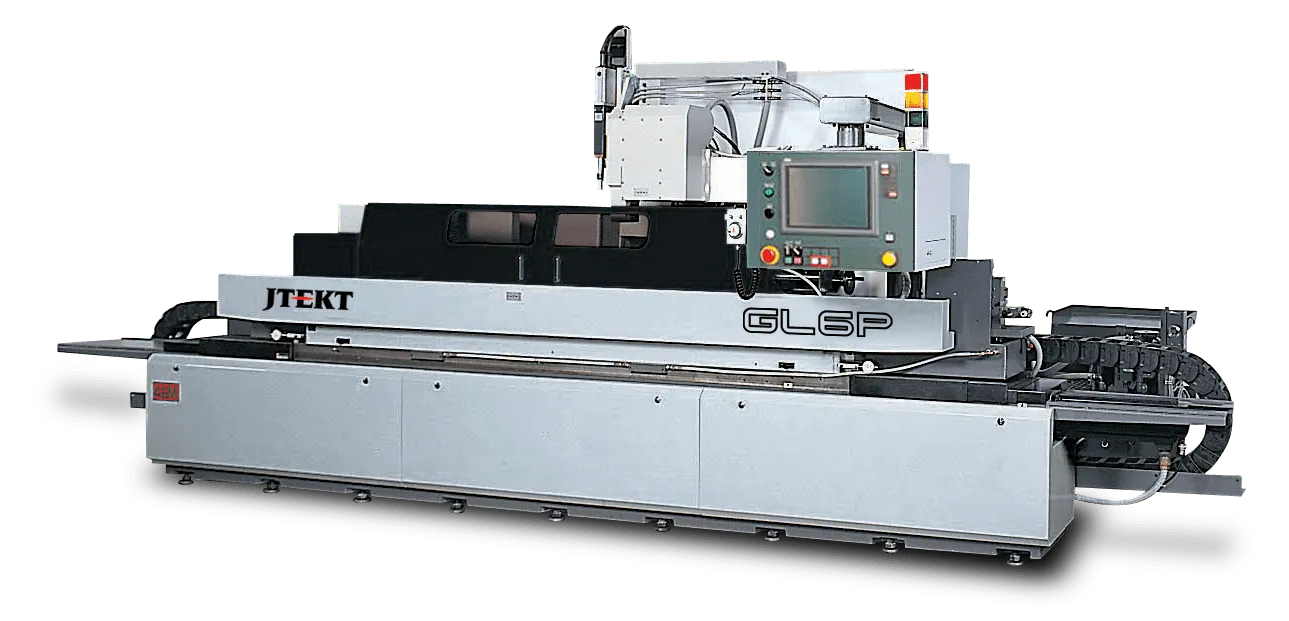

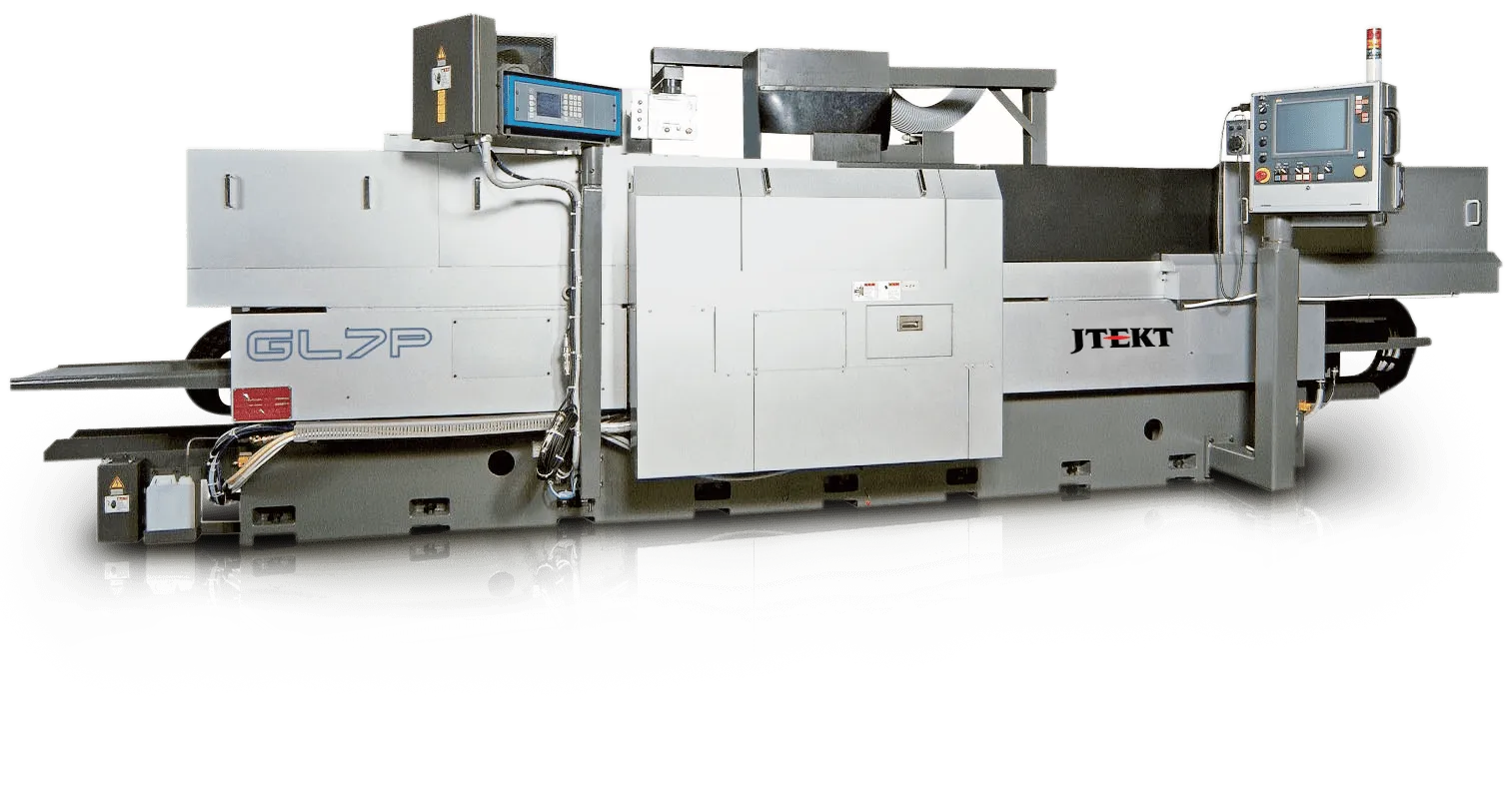

The GL Series are cylindrical grinding machines for dedicated processes in a high-production environment. It features a hydrostatic wheelhead bearing and way system, and the patented TOYODA STAT® BEARING and floating plate to ensure high accuracy and positioning. This machine is offered in plain- and angled-head configurations.

Request A Quote

Specifications

Specifications

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 12.6" (320 mm)
Grinding Diameter (Max) 8.6 (220) in (mm)
Wheel Surface Speed 11,800 (60) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 24.8" (630 mm)
Grinding Diameter (Max) 8.6 (220) in (mm)
Wheel Surface Speed 11,800 (60) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 39.4" (1,000 mm)
Grinding Diameter (Max) 8.6 (220) in (mm)
Wheel Surface Speed 11,800 (60) SFPM (m/s)

Swing Over Table Ø 12.6" (320 mm)
Distance Between Centers 59.0" (1,500 mm)
Grinding Diameter (Max) 8.6 (220) in (mm)
Wheel Surface Speed 11,800 (60) SFPM (m/s)

Swing Over Table Ø 15.7" (400 mm)
Distance Between Centers 12.6" (320 mm)
Optional Wheel Surface Speed 11,800 SFPM (60 m/s)
Grinding Diameter (Max) 11.8 (300) in (mm)
Wheel Surface Speed 8,860 (45) SFPM (m/s)

Swing Over Table Ø 15.7" (400 mm)
Distance Between Centers 24.8" (630 mm)
Optional Wheel Surface Speed 11,800 SFPM (60 m/s)
Grinding Diameter (Max) 11.8 (300) in (mm)
Wheel Surface Speed 8,860 (45) SFPM (m/s)

Swing Over Table Ø 15.7" (400 mm)
Optional Swing Ø 19.7" (500 mm)
Grinding Diameter (Max) 11.8 (300) in (mm)
Wheel Surface Speed 8,860 (45) SFPM (m/s)

Swing Over Table Ø 15.7" (400 mm)
Distance Between Centers 39.4" (1,000 mm)
Grinding Diameter (Max) 11.8 (300) in (mm)
Wheel Surface Speed 8,860 (45) SFPM (m/s)

Swing Over Table Ø 15.7" (400 mm)
Distance Between Centers 63" (1,600 mm)
Grinding Diameter (Max) 11.8 (300) Optional 15.7 (400) in (mm)
Wheel Surface Speed 8,860 (45) SFPM (m/s)

Swing Over Table Ø 15.7" (400 mm)
Distance Between Centers 98.4" (2,500 mm)
Grinding Diameter (Max) 11.8 (300) Optional 15.7 (400) in (mm)
Wheel Surface Speed 8,860 (45) SFPM (m/s)
