1600mm Pallet

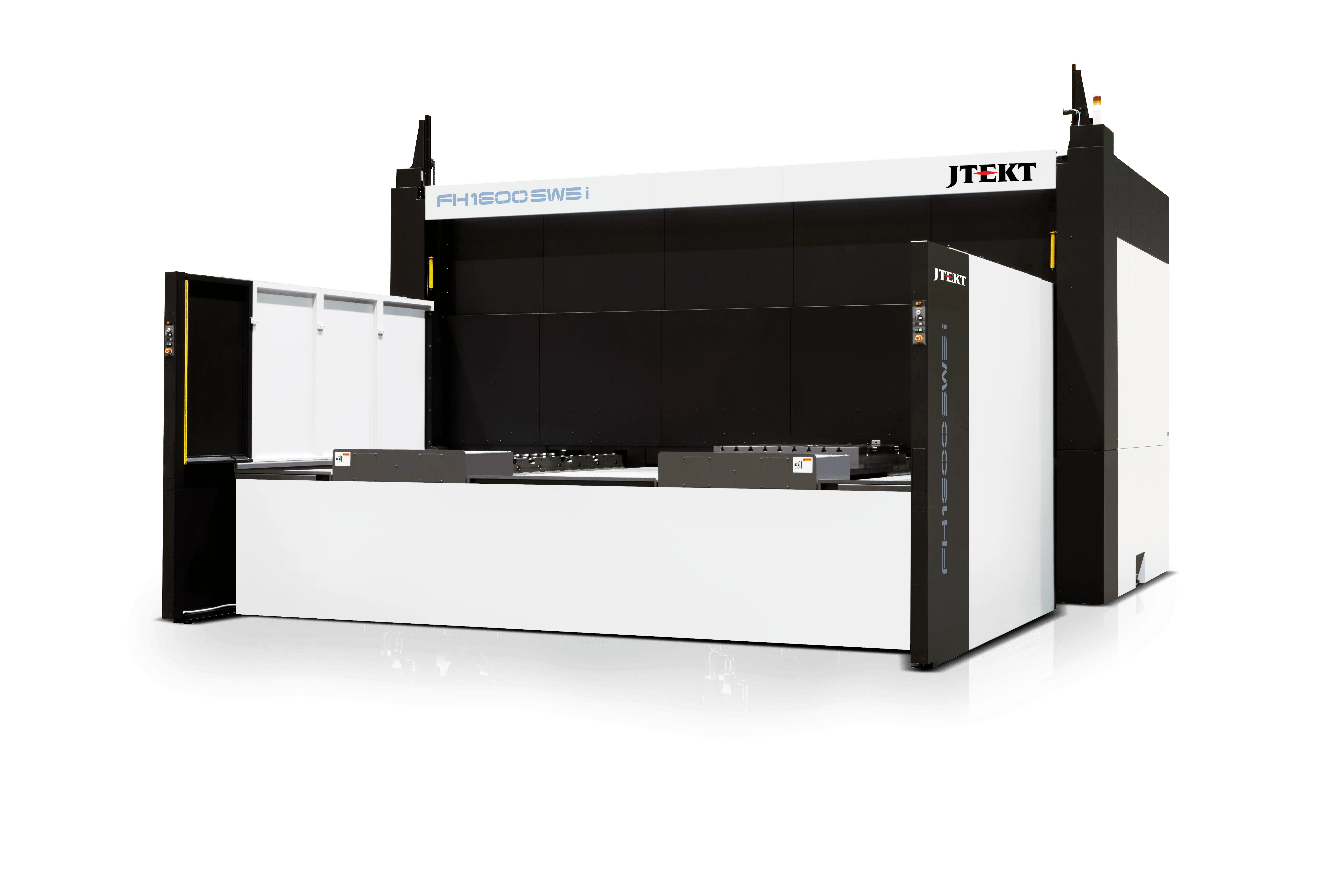

Toyoda's FH1600SW-i horizontal machining center features the largest work envelope in its class with a maximum swing of ⌀126" (⌀3,200 mm) and a workpiece height of 83" (2,100 mm). Engineered for heavy cutting, the FH1600SW-i's 5.9" (150 mm) diameter quill spindle allows for powerful cutting with high material removal rates.
Request A Quote
Specifications
Specifications
| Pallet Size |
63" x 49.2" (1,600 mm x 1,250 mm) |
| X-axis Travel |
118.1" (3,000 mm) |
| Y-axis Travel (spindle head) |
74.8" (1,900 mm) |
| Z-Axis Travel |
82.6" (2,100 mm) |
| W-Axis Travel |
29.5 (750 mm) |
| Max. Workpiece Swing (diameter) |
126” (3,200 mm) |
| Max. Workpiece Height |
82.6” (2,100 mm) |
| Maximum Load on Pallet |
17,600 lbs (8,000 kg) |
| Spindle Torque |
1,560 ft-lb (2,115 Nm) |
| Spindle Speed |
4,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
1,575 ipm (40 m/min) |
| Tool Storage Capacity |
120, 240, 330 |
