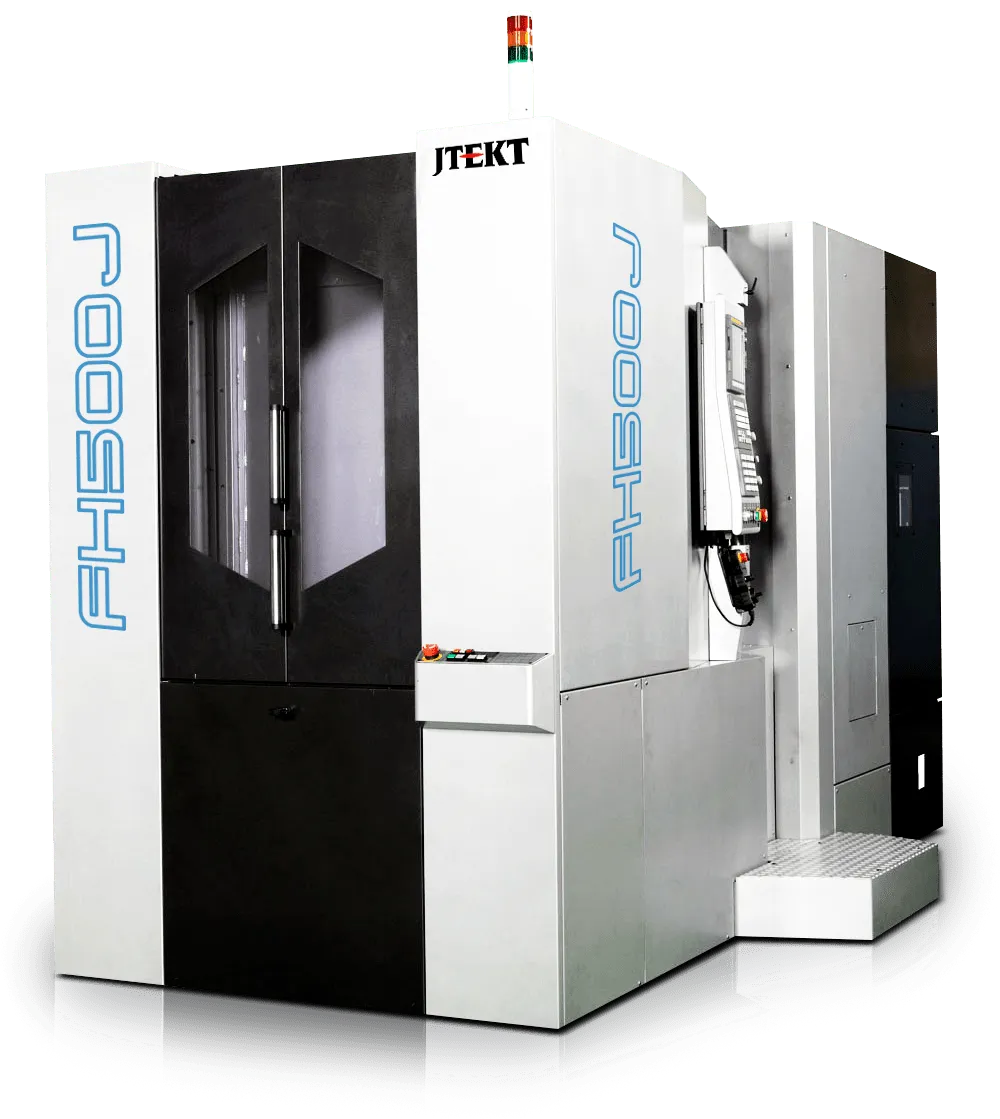

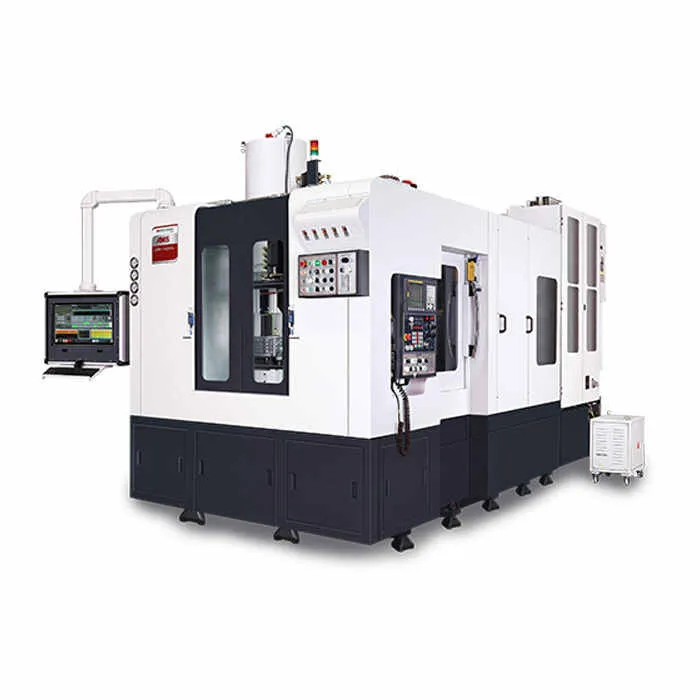

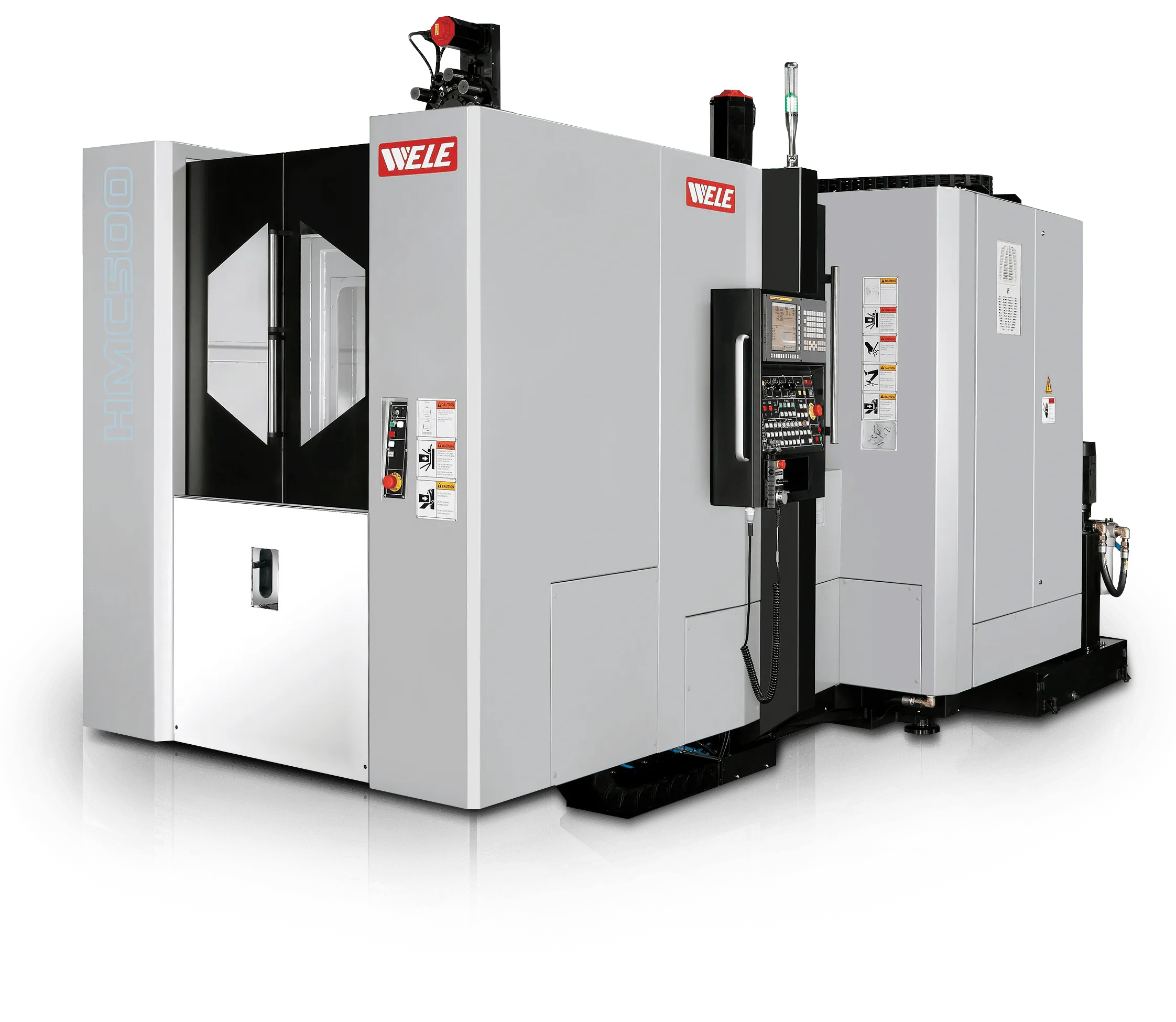

The FH500J, FH500J-50, HMC500, and CMH500XL are high-speed, compact horizontal machining centers designed for precision and productivity. They feature spindles up to 15,000 RPM, rapid feedrates up to 2,362 ipm, and ultra-fast tool-to-tool and axis index times. Equipped with robust B-axis tables, automatic tool changers, and high-torque motors, these machines handle larger work envelopes and challenging applications with speed and accuracy.

Request A Quote

Specifications

Specifications

Pallet Size 19.68" x 19.68" (500 mm x 500 mm)
X-axis Travel 28.74” (730 mm)
Y-axis Travel (spindle head) 28.74” (730 mm)
Z-Axis Travel 33.46” (850 mm)
Max. Workpiece Swing (diameter) 31.50” (800 mm)
Maximum Load on Pallet 1,540 lb (700 kg)
Rapid Feedrate (X axis) 2,362 ipm (60 m/min)
Rapid Feedrate (Y axis) 2,362 ipm (60 m/min)
Rapid Feedrate (Z axis) 2,362 ipm (60 m/min)

Pallet Size 19.68" x 19.68" (500 mm x 500 mm)
X-axis Travel 25.2” (650 mm)
Y-axis Travel (spindle head) 24” (610 mm)
Z-Axis Travel 26.8” (680 mm)
Max. Workpiece Swing (diameter) 29.5” (630 mm)
Maximum Load on Pallet 1,100 lb (500 kg)
Spindle Speed 15,000 RPM
Rapid Feedrate (X,Y and Z) 2,362 ipm (60 m/min)

Spindle Speed 8,000 RPM
Spindle Nose Taper CT40
X-axis Travel 31.5" (800 mm)
Y-axis Travel (spindle head) 21.65" (550 mm)
Z-Axis Travel 21.65" (550 mm)
Distance from Spindle Face to Pallet Center 5.9" - 27.6" (150 mm - 700 mm)
Distance from Spindle Center to Pallet Top 4.7" - 26.4" (120 mm - 670 mm)
Maximum Load on Pallet 500 kgf
Spindle Bearing Diameter 2.8" (70 mm)
Rapid Traverse X, Y, & Z Axes 1,575/1,575/1,575 ipm (40/40/40 m/min)
