630mm Pallet

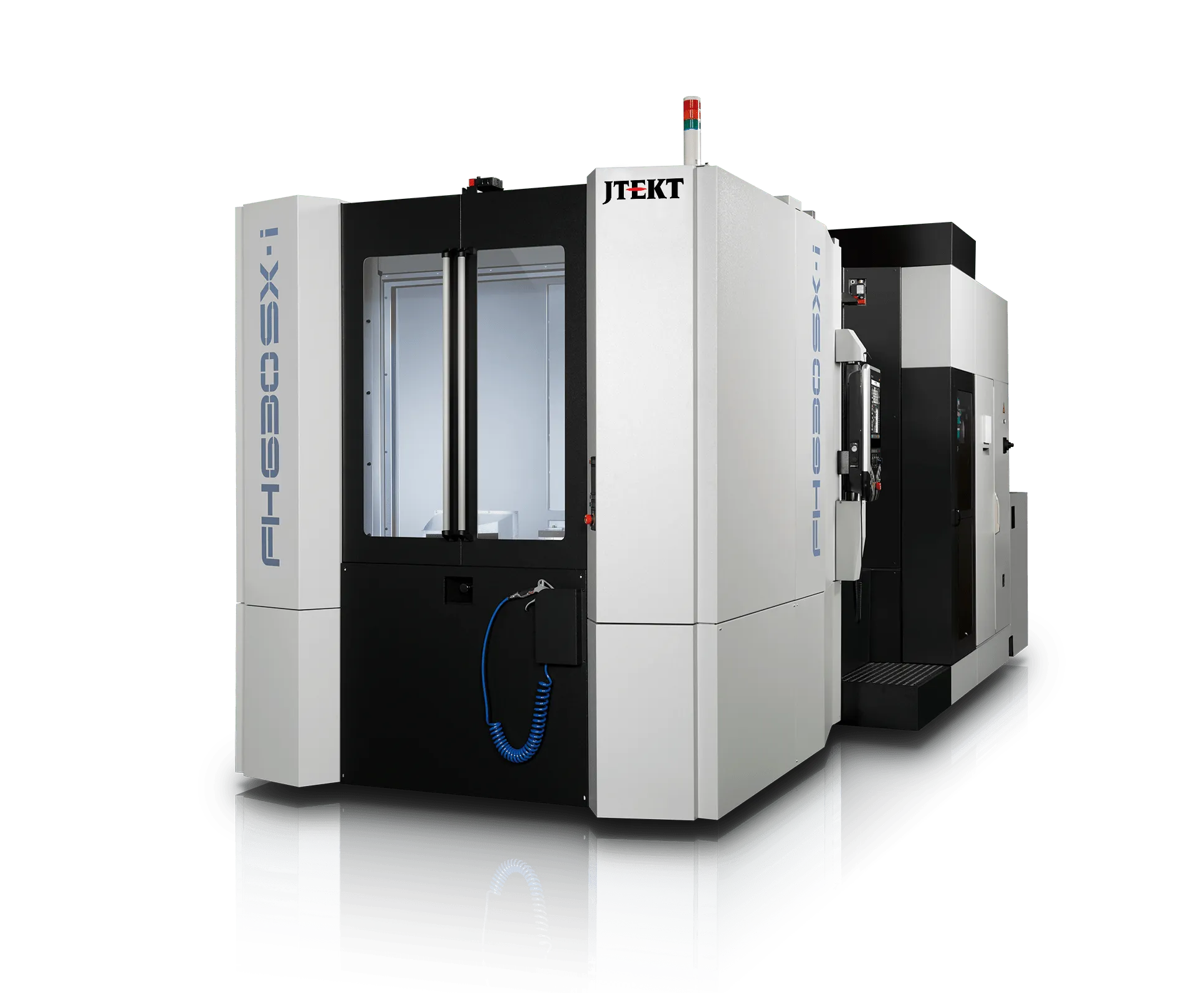

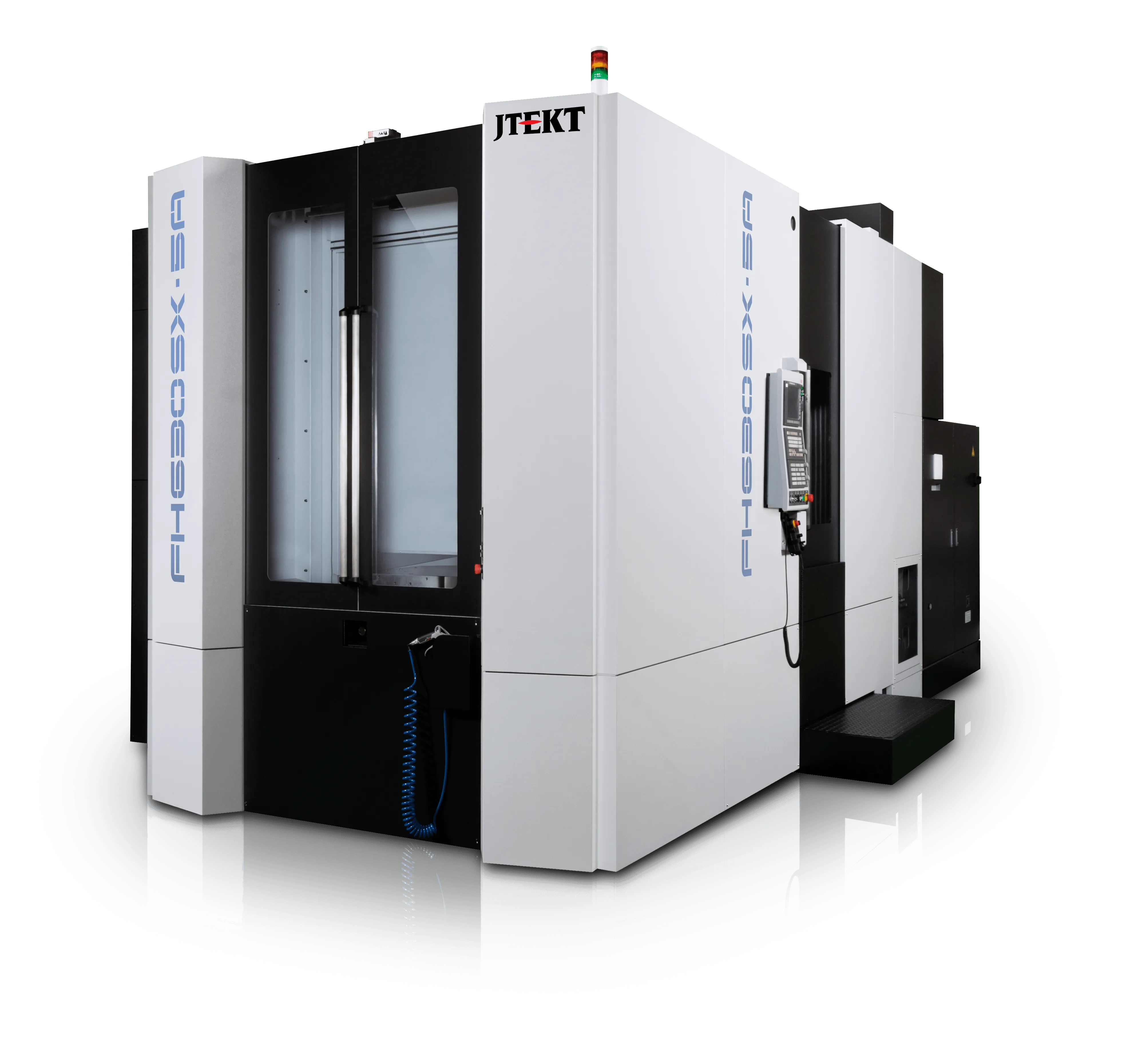

The FH630SX-i, FA630S, and FH630SX-i 5-Axis are high-performance horizontal machining centers designed for precision and heavy-duty operations. They feature spindles up to 15,000 RPM, rapid feedrates of 2,362 ipm, dual ballscrew drives on the Y and Z axes, and rigid Meehanite cast iron bases. The 5-axis model adds a tilting spindle with a robust C-axis drive and 230-degree swivel for complex part machining, while all models provide high accuracy, maintainability, and versatility for demanding applications.

Request A Quote

Specifications

Pallet Size	24.8" x 24.8" (630 mm x 630 mm)
X-axis Travel	41.34” (1,050 mm)
Y-axis Travel (spindle head)	35.43” (900 mm)
Z-Axis Travel	41.34” (1,050 mm)
Max. Workpiece Swing (diameter)	46.06” (1,170 mm)
Max. Workpiece Height	49.21" (1,250 mm)
Maximum Load on Pallet	3,306 lb (1,500 kg)
Spindle Torque	887 ft-lb (1,202 Nm)
Spindle Speed	8,000, 15,000 RPM
Rapid Feedrate (X,Y and Z)	2,362 ipm (60 m/min)
Tool Storage Capacity	60, 121, 240, 330

Pallet Size	24.8" x 24.8" (630 mm x 630 mm)
X-axis Travel	39.37" (1,000 mm)
Y-axis Travel (spindle head)	33.46” (850 mm)
Z-Axis Travel	29.52” (750 mm)
Max. Workpiece Swing (diameter)	39.37" (1,000 mm)
Max. Workpiece Height	39.37" (1,000 mm)
Maximum Load on Pallet	2,860 lb (1,300 kg)
Spindle Speed	15,000 RPM
Rapid Feedrate (X,Y and Z)	1,417 ipm (36 m/min)

Pallet Size	24.8" x 24.8" (630 mm x 630 mm)
X-axis Travel	31.5” (800 mm)
Y-axis Travel (spindle head)	33.46” (850 mm)
Z-Axis Travel	41.33” (1,050 mm)
Max. Workpiece Swing (diameter)	46.06” (1,170 mm)
Max. Workpiece Height	62.99" (1,600 mm)
Maximum Load on Pallet	3,306 lb (1,500 kg)
Spindle Speed	8,000 , 15,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	2,362 ipm (60 m/min)
Tool Storage Capacity	60, 120, 240, 330
