800mm Pallet

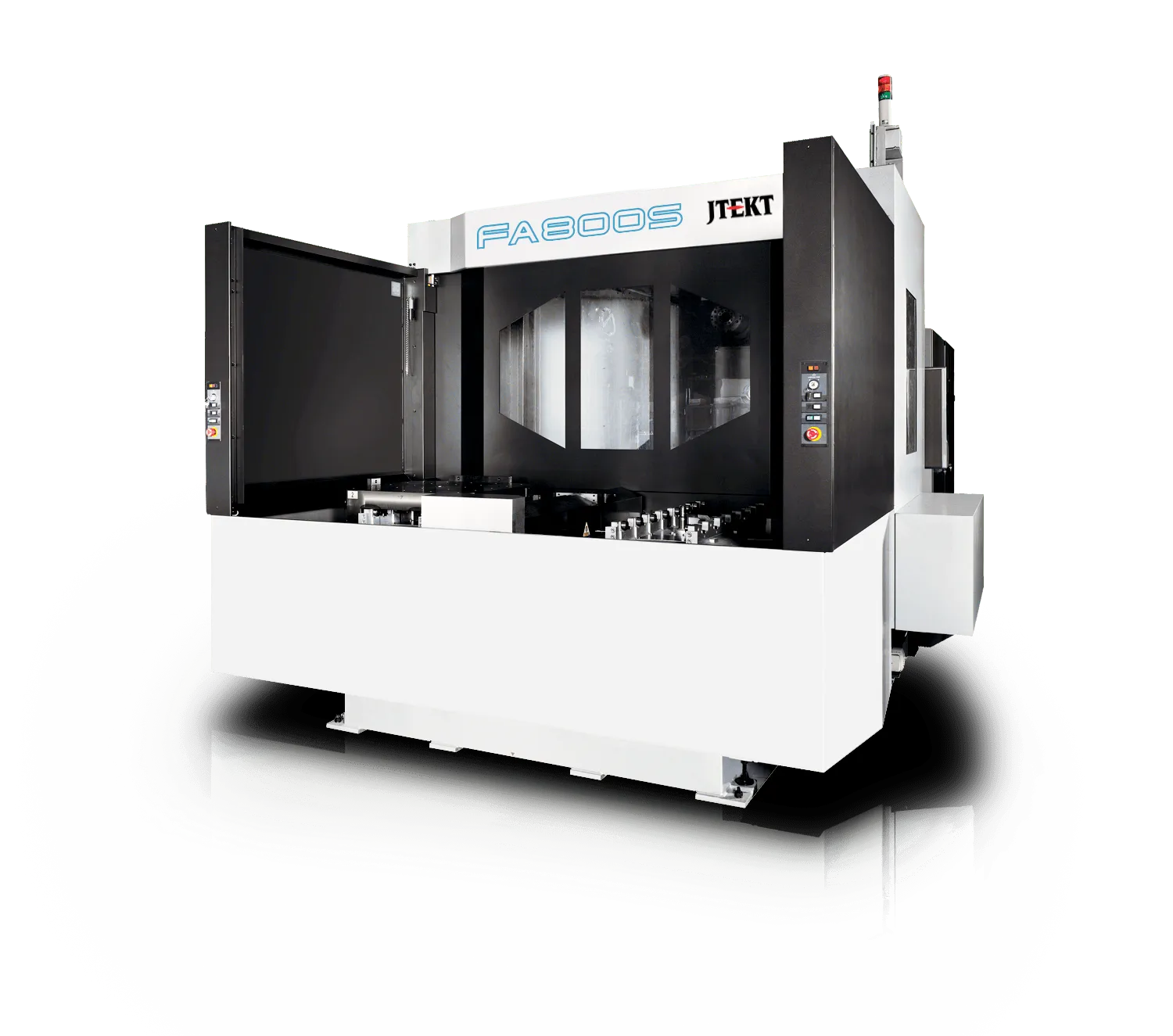

The FH800SX-i and FA800S are high-performance horizontal machining centers built for precision and heavy-duty machining. They feature spindles up to 15,000 RPM, dual ballscrew drives on the Y and Z axes, and rigid Meehanite cast iron bases. With expansive work envelopes, robust columns and beds, and high rapid feedrates, these machines handle large parts and demanding applications with accuracy and reliability.

Request A Quote

Specifications

Pallet Size	31.5” x 31.5” (800 mm x 800 mm)
X-axis Travel	57.1” (1,450 mm)
Y-axis Travel (spindle head)	49.2” (1,250 mm)
Z-Axis Travel	61” (1,550 mm)
Max. Workpiece Swing (diameter)	59.06” (1,500 mm)
Max. Workpiece Height	59.06” (1,500 mm)
Maximum Load on Pallet	5,500 lb (2,500 kg)
Spindle Torque	887 ft-lb (1,202 Nm)
Spindle Speed	8,000, 15,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	2,127 ipm (54 m/min)
Tool Storage Capacity	60, 121, 240, 330

Pallet Size	31.5" x 31.5" (800 mm x 800 mm)
X-axis Travel	53.1” (1,350 mm)
Y-axis Travel (spindle head)	45.2” (1,150 mm)
Z-Axis Travel	45.2” (1,150 mm)
Max. Workpiece Swing (diameter)	62.99” (1,600 mm)
Maximum Load on Pallet	5,500 lb (2,500 kg)
Spindle Speed	6,000 RPM
Spindle Taper	CAT50
Rapid Feedrate (X,Y and Z)	944 ipm (24 m/min)
