AA-65 Series

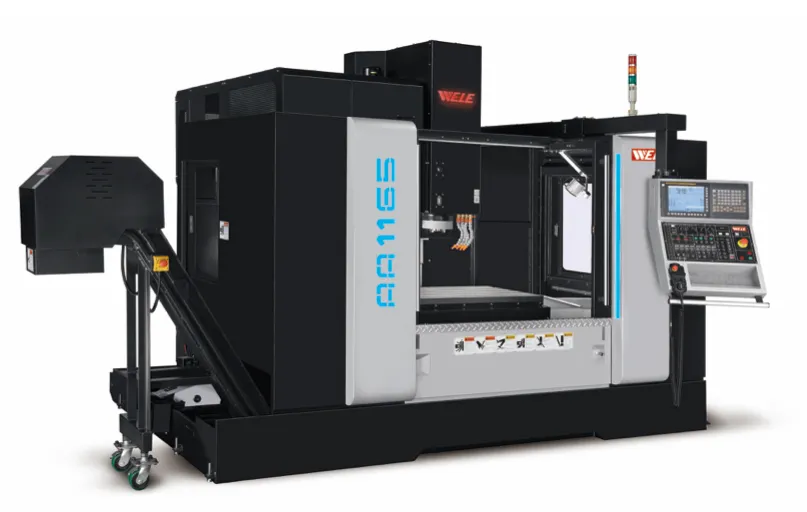

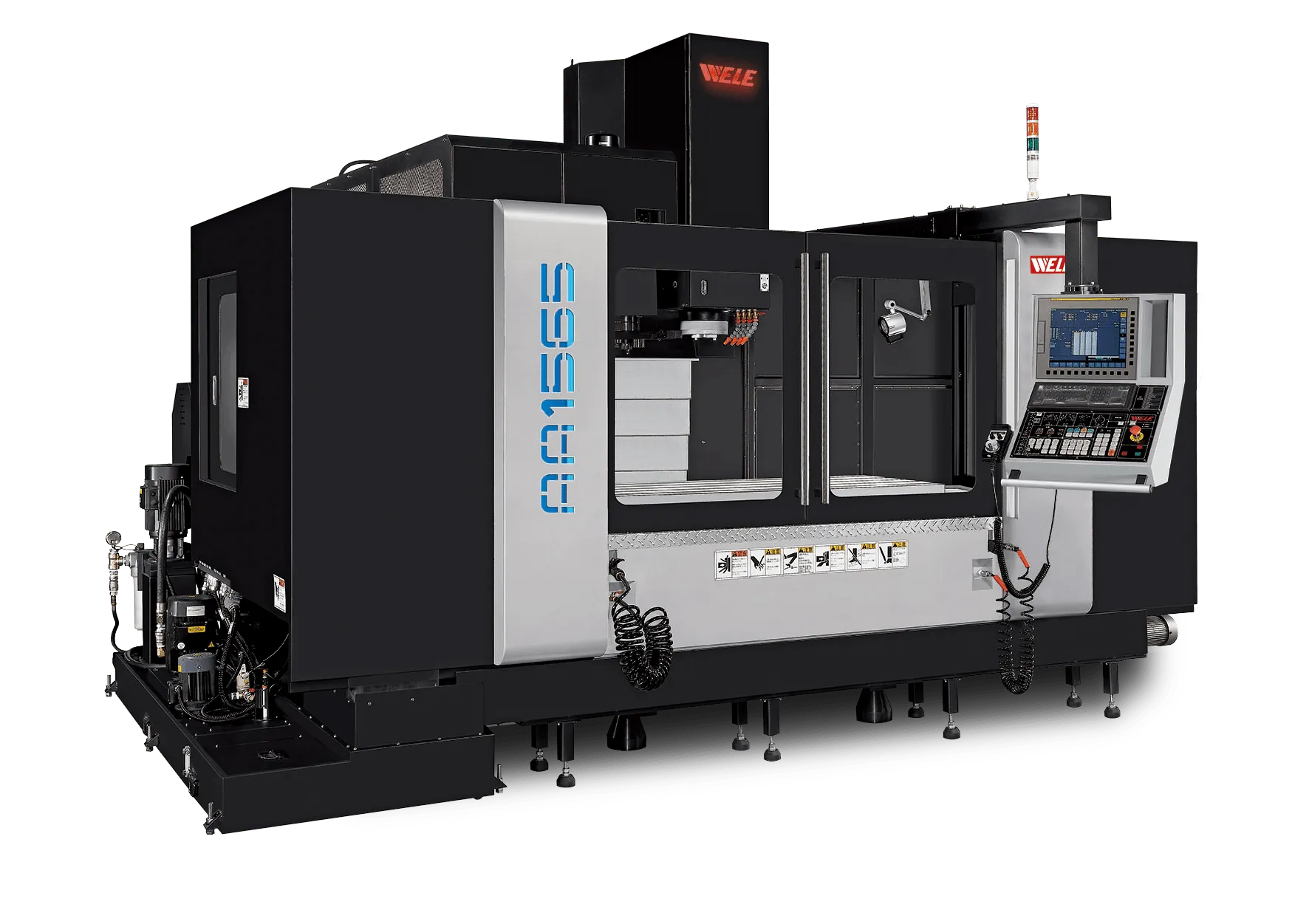

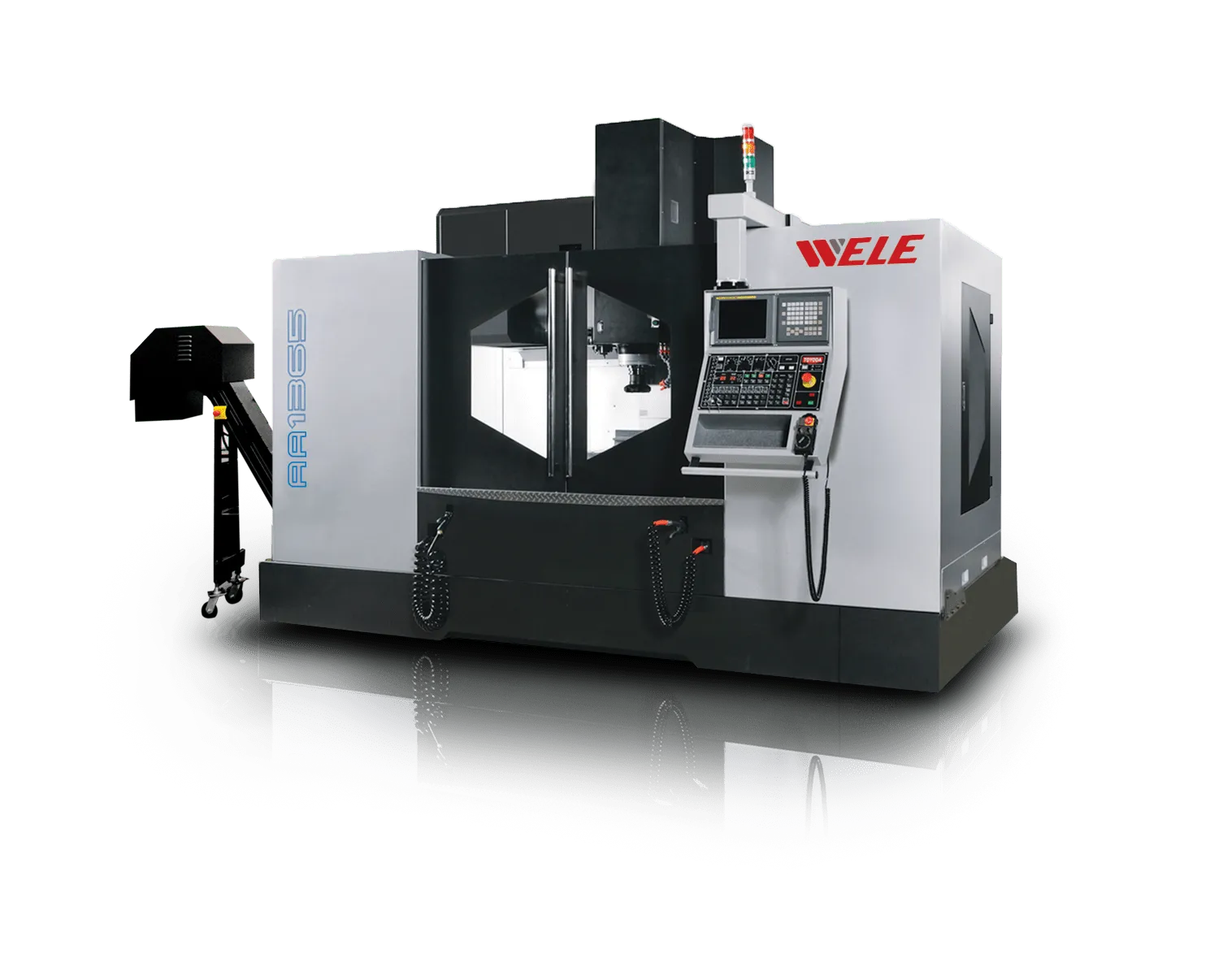

The AA1165, A1365, and AA1565 are heavy-duty vertical machining centers designed for strength and precision, featuring four Y-axis box guideways, a robust Meehanite cast iron base, and a high-performance spindle.
Request A Quote
Specifications
Specifications
| Table Size |
51.2" x 25.6" (1,300 mm x 650 mm) |
| X-axis Travel |
43.3" (1,100 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Distance from Spindle Nose to Table Top |
4.9" to 28.5" (125 mm to 725 mm) |
| Spindle Speed |
6,000 RPM |
| Spindle Drive Motor |
25 HP (kW) |
| Tool Taper |
CAT50 |
| Table Size |
57.1" x 25.6" (1,450 mm x 650 mm) |
| X-axis Travel |
51.2" (1,300 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Distance from Spindle Nose to Table Top |
4.9" to 28.5" (125 mm to 725 mm) |
| Spindle Speed |
6,000 RPM |
| Spindle Drive Motor |
25 HP (kW) |
| Tool Taper |
CAT50 |
| Table Size |
65" x 25.6" (1,650 mm x 650 mm) |
| X-axis Travel |
59.1" (1,500 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Distance from Spindle Nose to Table Top |
4.9" to 28.5" (125 mm to 725 mm) |
| Spindle Speed |
6,000 RPM |
| Spindle Drive Motor |
30 HP (kW) |
| Tool Taper |
CAT50 |
