AA-80 Series

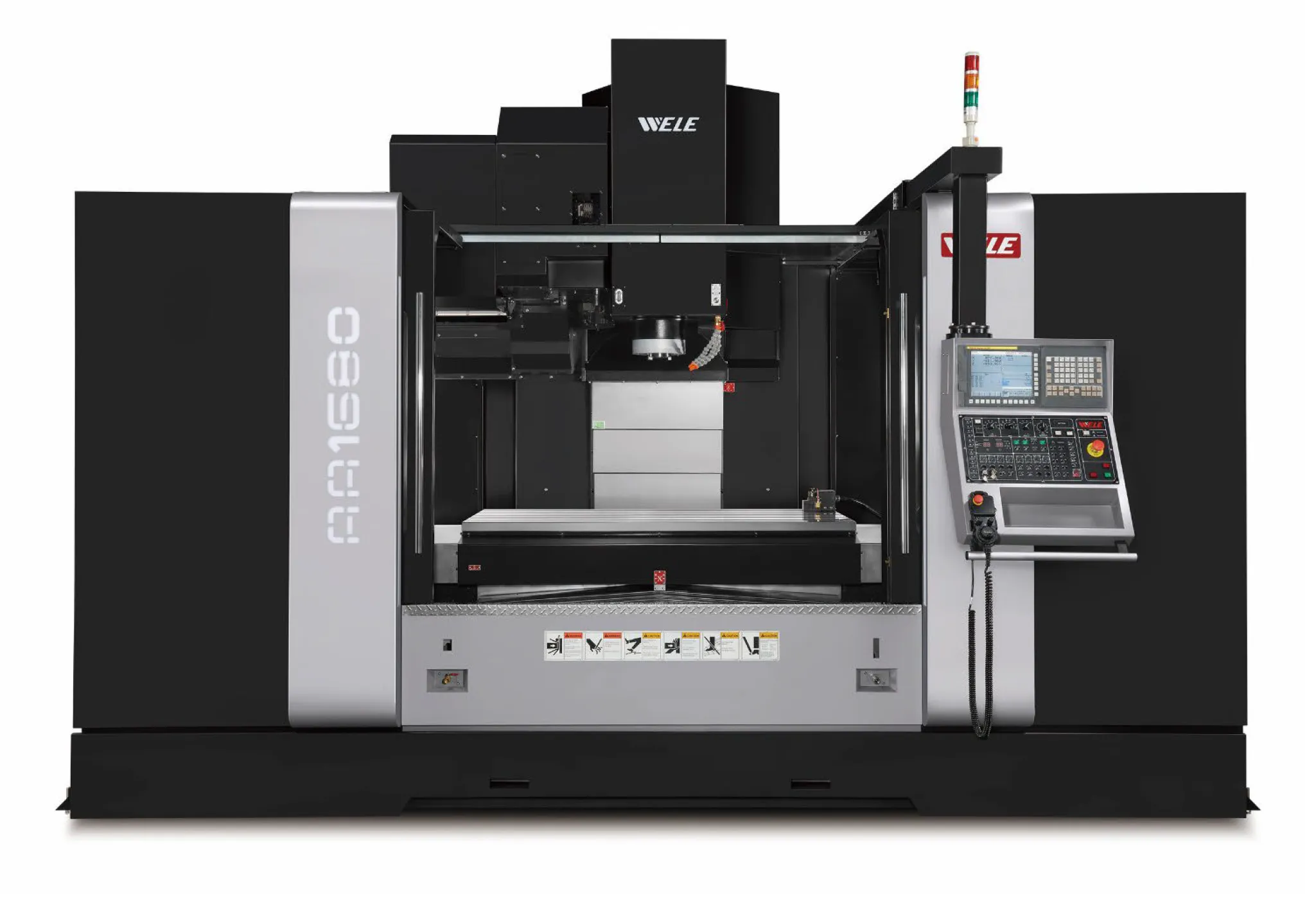

The AA1680 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.

Request A Quote

Specifications

Table Size	68.9" x 31.5" (1,750 mm x 800 mm)
X-axis Travel	63" (1,600 mm)
Y-axis Travel (spindle head)	31.5" (800 mm)
Z-Axis Travel	31.5" (800 mm)
Distance from Spindle Nose to Table Top	7.9" to 39.4" (200 mm to 1,000 mm)
Spindle Speed Max.	6,000 RPM
Tool Taper	CAT50
Rapid Traverse (Feedrate) (x-y-z)	945-945-708 ipm (24-24-18) m/min
Toll Storage Capacity (Optional)	40
Tool Weight Max.	33 lbs (15) kg
