AA-90 Series

AA-90 Series

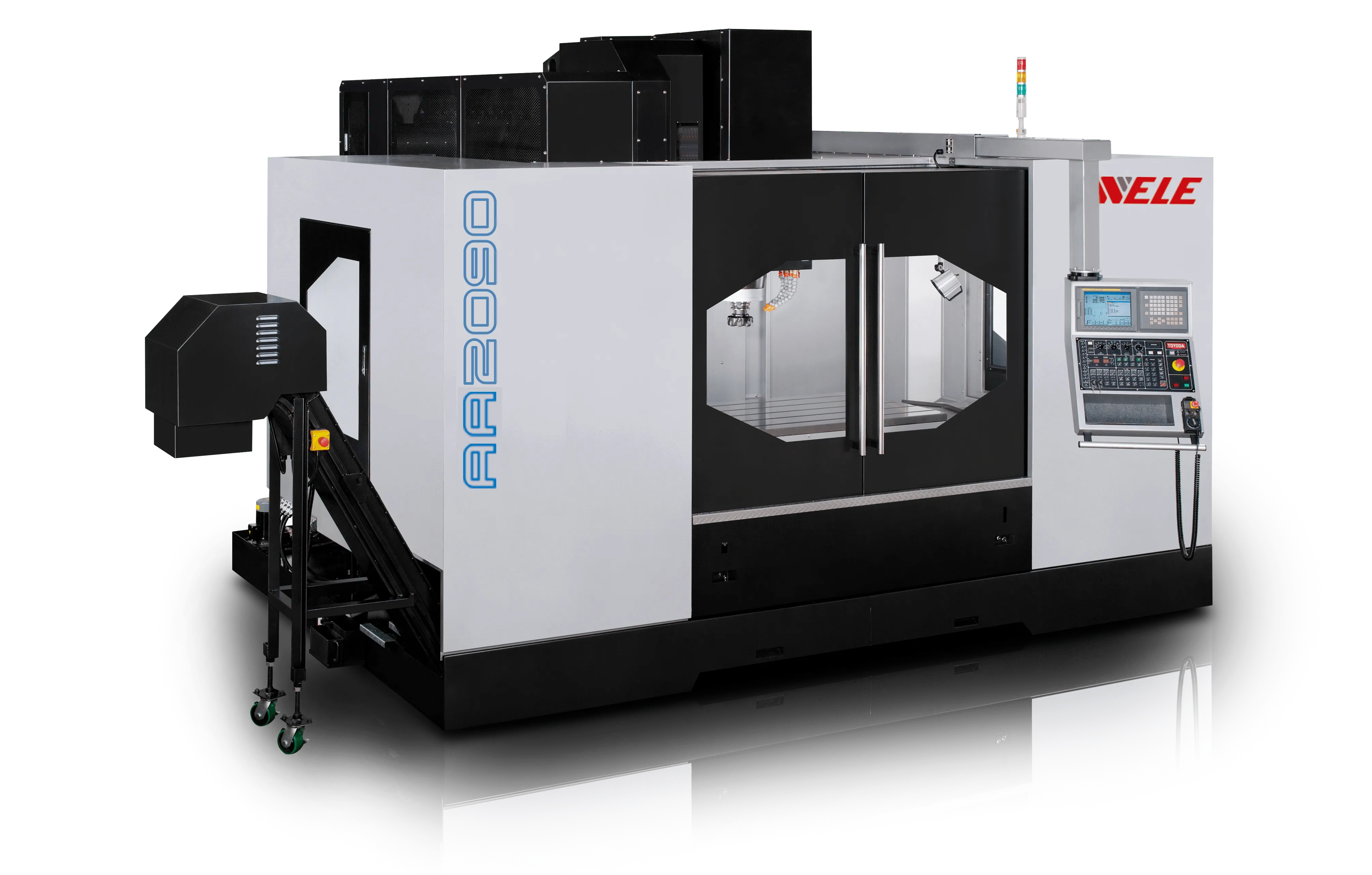

The AA2090 is a heavy-duty vertical machining center that features four Y-axis box guideways, a Meehanite cast iron base, and a high-performance spindle.

Request A Quote

Specifications

Specifications

Table Size	84.6" x 35.4" (2,150 mm x 900 mm)
X-axis Travel	78.7" (2,000 mm)
Y-axis Travel (spindle head)	35.4" (900 mm)
Z-Axis Travel	35.4" (900 mm)
Maximum Table Load	4,840 lb (2,200 kg)
Distance from Spindle Nose to Table Top	7.9" to 43.3" (200 mm to 1,100 mm)
Spindle Speed	35 HP (26 kW) / 30 HP (22 kW)
Spindle Torque	485 ft-lb (658 Nm)
Spindle Nose	Gearbox (CAT50): 6,000 RPM
Spindle Nose	Direct Drive (CAT50): 10,000 RPM DIRECT DRIVE
Rapid feedrate - X axis	30 Standard (40, 60 Optional)
Rapid feedrate - Y axis	255" x 195" x 143" (6,480 mm x 4,948 mm x 3,620 mm)
Machine Weight	50,705 lb (23,000 kg)
Chip Conveyor	Hinged Belt Lift Up type, 47" Drop Height from floor
