AQ Series

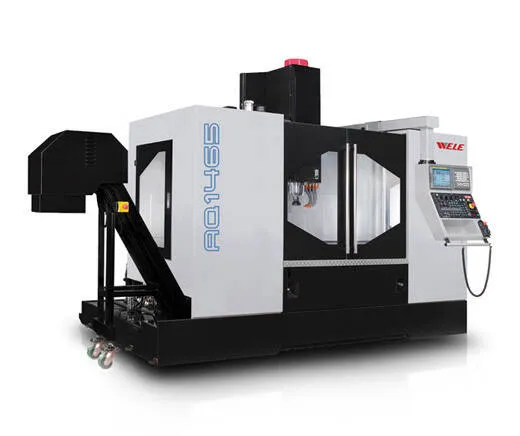

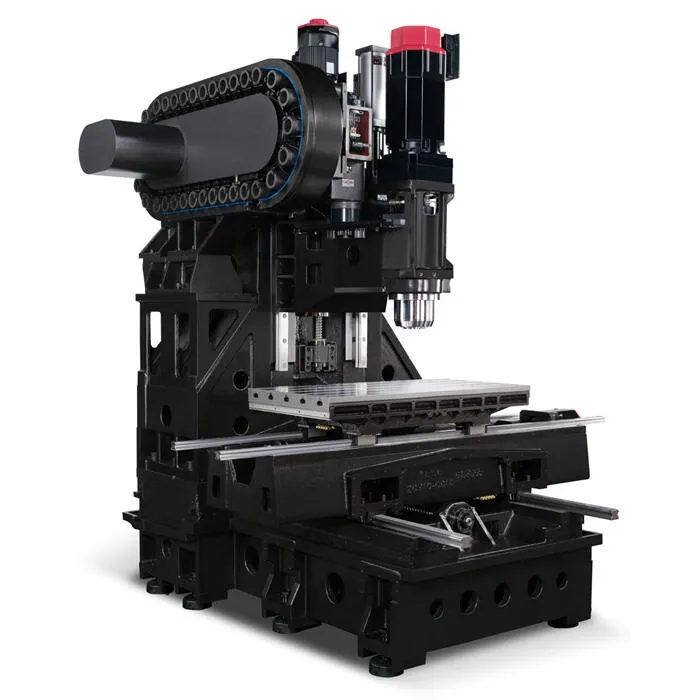

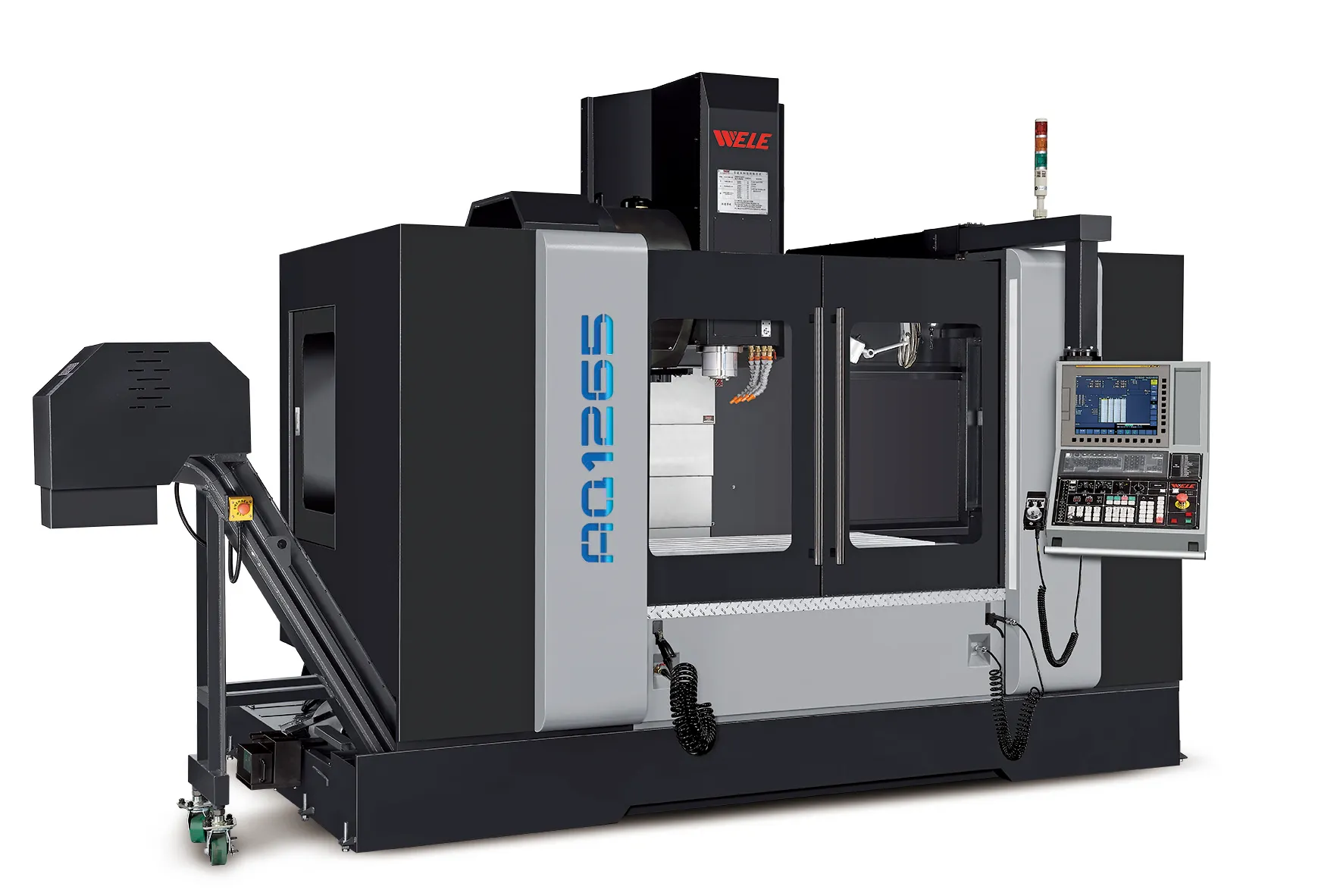

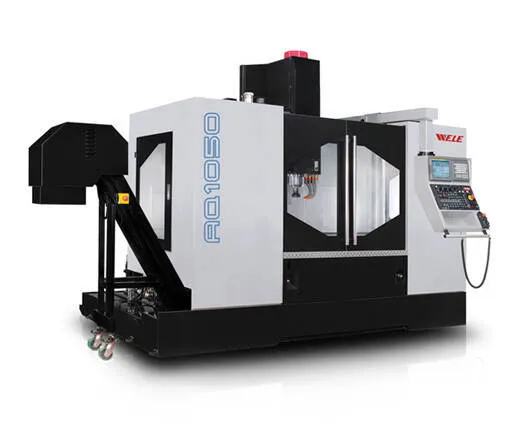

The AQ Series—models 850, 1050, 1265, 1465, and 1665—are high-speed vertical machining centers designed for maximum cutting performance. Each features cylindrical roller guides, a robust Meehanite cast iron base, and a powerful high-performance spindle that delivers rigidity and precision for demanding applications.
Request A Quote
Specifications
Specifications
| Table Size |
39.4" x 20.1" (1,000 mm x 510 mm) |
| X-axis Travel |
31.5" (800 mm) |
| Y-axis Travel (spindle head) |
20.1" (510 mm) |
| Z-Axis Travel |
20.1" (510 mm) |
| Distance from Spindle Nose to Table Top |
4.9" to 25" (125 mm to 635 mm) |
| Maximum Table Load |
1,100 lb (500 kg) |
| Spindle Speed |
25 HP (18.5 kW) / 20 HP (15 kW) |
| Spindle Torque |
92 ft-lb (125 Nm) |
| Spindle Nose |
Direct Drive (CAT40): 15,000 RPM |
| Rapid feedrate - X axis |
32 Standard (40 Optional) |
| Rapid feedrate - Y axis |
163" x 155" x 117" (4,130 mm x 3,930 mm x 2,975 mm) |
| Machine Weight |
12,566 lb (5,700 kg) |
| Chip Conveyor |
Hinged Belt Lift Up type, 47" Drop Height from floor |
| Table Size |
47.2" x 20.1" (1,200 mm x 510 mm) |
| X-axis Travel |
40.2" (1,020 mm) |
| Y-axis Travel (spindle head) |
20.1" (510 mm) |
| Z-Axis Travel |
20.1" (510 mm) |
| Distance from Spindle Nose to Table Top |
4.9" to 25" (125 mm to 635 mm) |
| Spindle Speed |
15,000 RPM |
| Spindle Drive Motor |
30 HP (kW) |
| Tool Taper |
CAT40 |
| Table Size |
55.1" x 25.6" (1,400 mm x 650 mm) |
| X-axis Travel |
47.2" (1,200 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
24" (610 mm) |
| Distance from Spindle Nose to Table Top |
5.9" to 29.9" (150 mm to 760 mm) |
| Spindle Speed |
15,000 RPM |
| Spindle Drive Motor |
30 HP (kW) |
| Tool Taper |
CAT40 |
| Table Size |
63" x 25.6" (1,600 mm x 650 mm) |
| X-axis Travel |
55.1" (1,400 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
24" (610 mm) |
| Distance from Spindle Nose to Table Top |
5.9" to 29.9" (150 mm to 760 mm) |
| Spindle Speed |
15,000 RPM |
| Spindle Drive Motor |
30 HP (kW) |
| Tool Taper |
CAT40 |
| Table Size |
68.9" x 25.6" (1,750 mm x 650 mm) |
| X-axis Travel |
63" (1,600 mm) |
| Y-axis Travel (spindle head) |
25.6" (650 mm) |
| Z-Axis Travel |
24" (610 mm) |
| Distance from Spindle Nose to Table Top |
5.9" to 29.9" (150 mm to 760 mm) |
| Spindle Speed |
15,000 RPM |
| Spindle Drive Motor |
30 HP (kW) |
| Tool Taper |
CAT40 |
