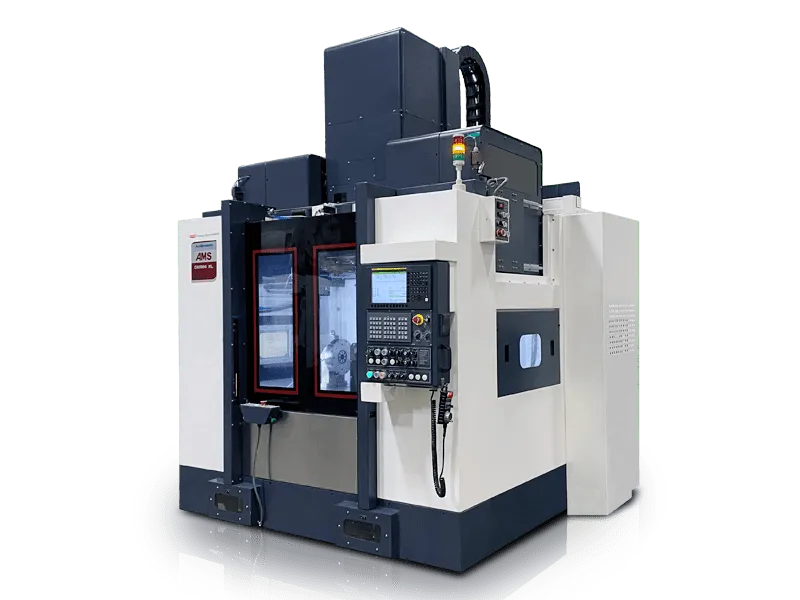

Twin Spindle
The Gemini Twin Spindle series is designed to handle high production volumes in a variety of different sizes. The twin spindle allows for a large reduction in the cost and cycle time per component and twice the productivity with a footprint only slightly larger than a single spindle machine.
Request A Quote
Specifications
Specifications
| Table Size |
55.1" x 20.5" (1,400 mm x 520 mm) |
| X-axis Travel |
29.5" (750 mm) |
| Y-axis Travel (spindle head) |
19.6" (500 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Maximum Table Load |
2,200 Ibs (1,000 kg) |
| Spindle Drive Motor |
20 HP (opt. 35 HP) |
| Spindle Taper |
CAT 50 |
| Spindle Nose |
4,000 RPM |
| CNC Controller |
Fanuc 0iMF |
| Standard Floor Space |
118.2 x 165.4" (3,000 mm x 4,200 mm) |
| Table Size |
47.24" x 18.9" (1,200 mm x 480 mm) |
| X-axis Travel |
23.6" (600 mm) |
| Y-axis Travel (spindle head) |
17.7" (450 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Maximum Table Load |
1,760 lbs (800 kg) |
| Spindle Drive Motor |
20 HP |
| Spindle Taper |
CAT 40 |
| Spindle Nose |
8,000 RPM |
| CNC Controller |
Fanuc 0iMF |
| Standard Floor Space |
90.5 x 141.7" (2,300 mm x 3,600 mm) |
| Table Size |
35.5" x 17.7" (900 mm x 450 mm) |
| X-axis Travel |
19.7" (500 mm) |
| Y-axis Travel (spindle head) |
17.7" (450 mm) |
| Z-Axis Travel |
23.6" (600 mm) |
| Maximum Table Load |
1,100 Ibs (500 kg) |
| Spindle Drive Motor |
10 HP |
| Spindle Taper |
CAT 40 |
| Spindle Nose |
8,000 RPM |
| CNC Controller |
Fanuc 0iMF |
| Automatic Pallet Changer: |
Rotary type |
| Standard Floor Space |
78.7" x 130" (2,000 mm x 3,300 mm) |
| Table Size |
43.3" x 17.7" (1,100 mm x 450 mm) |
| X-axis Travel |
23.6" (600 mm) |
| Y-axis Travel (spindle head) |
15.7" (400 mm) |
| Z-Axis Travel |
18.8" (480 mm) |
| Maximum Table Load |
770 Ibs (350 kg) |
| Spindle Drive Motor |
10 HP |
| Spindle Taper |
CAT 30 |
| Spindle Nose |
8,000 RPM |
| CNC Controller |
Fanuc 0iMF |
| Standard Floor Space |
75" x 116" (1,900 mm x 2,950 mm) |
