MATSUURA H.PLUS-300
MATSUURA H.PLUS-300
MATSUURA H.PLUS-300
MATSUURA H.PLUS-300
MATSUURA H.PLUS-300
MATSUURA H.PLUS-300

MATSUURA H.PLUS-300

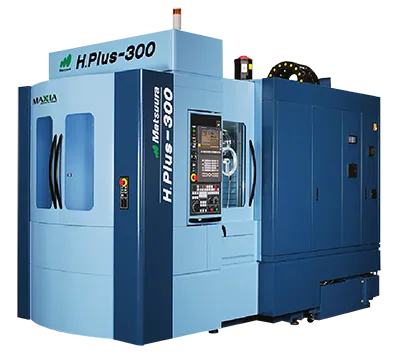

The Matsuura H.Plus-300 Horizontal Machining Center is the most compact HMC available and offers high-speed, high-precision, and efficient production. Travels and part capacity are equal to typical 400 mm horizontals, while only utilizing 70% of the space. These machines are consistently known for high accuracy in a variety of conditions with thermal compensation standards.

Request A Quote

Specifications

Specifications

Specification Detail
X Axis Travel 19.68 in.
Y Axis Travel 22.04 in.
Z Axis Travel 19.68 in.
Working Surface 11.81 in. x 11.81 in.
Loading Capacity 551 lb.
Max. Workpiece Size Ø20.86xH29.92
Spindle Speed 15,000 - 20,000 min-1
Rapid Traverse Rate X/Y/Z 2,362.2 / 2,362.2 / 2,362.2
Tool Change Time 2.4 sec: Chip to Chip
Tool Storage Capacity 60 : Drum Magazine
