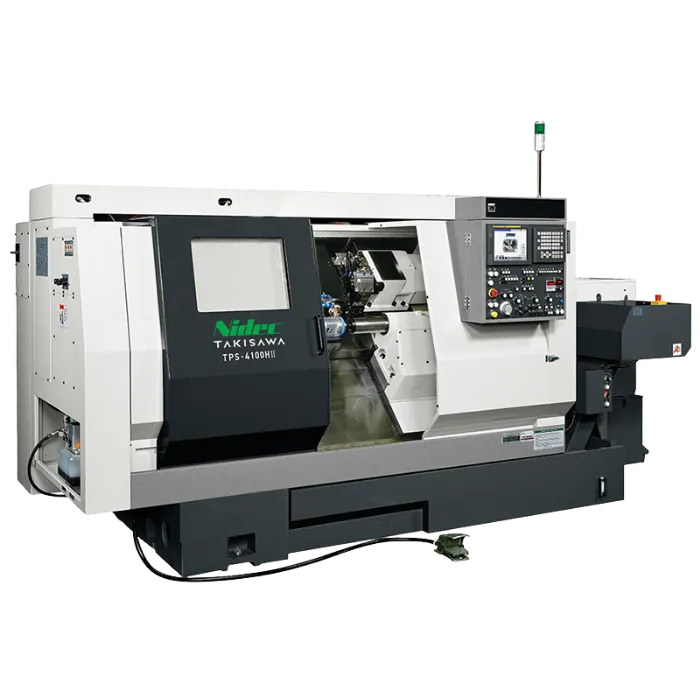

TAKISAWA TPS-SERIES

TAKISAWA TPS-SERIES

TAKISAWA TPS-SERIES

TAKISAWA TPS-SERIES

TAKISAWA TPS-SERIES

TAKISAWA TPS-SERIES

TAKISAWA TPS-SERIES

The Takisawa TPS Series provides the total solution for pinhole machining. Fastest speed and the highest accuracy in the world scale for 3D piston pin hole machine.

Request A Quote

Specifications

Specifications

B Type
Max Turning Diameter	7.87"
Max Turning Length	14.57"
Spindle Speed	2,000
Spindle Horsepowet	6.45 HP
# of Octangonal Drum Turrets	-
# of Non-Circular Machining Turrets	1
Tool Spindle	-
Tool Spindle Travel	-
Tool Spindle Horsepower	-
Tool Spindle Taper	-

C Type
Max Turning Diameter	7.87"
Max Turning Length	14.57"
Spindle Speed	3,000
Spindle Horsepowet	6.45 HP
# of Octangonal Drum Turrets	-
# of Non-Circular Machining Turrets	1
Tool Spindle	-
Tool Spindle Travel	-
Tool Spindle Horsepower	-
Tool Spindle Taper	-

Specification	Detail
Max Turning Diameter	9.49"
Max Turning Length	12.60"
Spindle Speed	2,000 (opt. 1,500/1,00)
Spindle Horsepowet	6.45 HP
# of Octangonal Drum Turrets	-
# of Non-Circular Machining Turrets	1
Tool Spindle	-
Tool Spindle Travel	-
Tool Spindle Horsepower	-
Tool Spindle Taper	-

Specification	Detail
Max Turning Diameter	-
Max Turning Length	-
Spindle Speed	1,000
Spindle Horsepowet	6.45 HP
# of Octangonal Drum Turrets	-
# of Non-Circular Machining Turrets	-
Tool Spindle	42,000 rpm
Tool Spindle Travel	X: 9.1" Z: 10.2"
Tool Spindle Horsepower	20.11 HP
Tool Spindle Taper	HSK-C40

Specification	Detail
Max Turning Diameter	12.60"
Max Turning Length	9.84"
Spindle Speed	4000
Spindle Horsepowet	14.75 HP
# of Octangonal Drum Turrets	1
# of Non-Circular Machining Turrets	1
Tool Spindle	-
Tool Spindle Travel	-
Tool Spindle Horsepower	-
Tool Spindle Taper	-

Specification	Detail
Max Turning Diameter	12.60"
Max Turning Length	9.84"
Spindle Speed	4000
Spindle Horsepowet	14.75 HP
# of Octangonal Drum Turrets	2
# of Non-Circular Machining Turrets	1
Tool Spindle	-
Tool Spindle Travel	-
Tool Spindle Horsepower	-
Tool Spindle Taper	-
