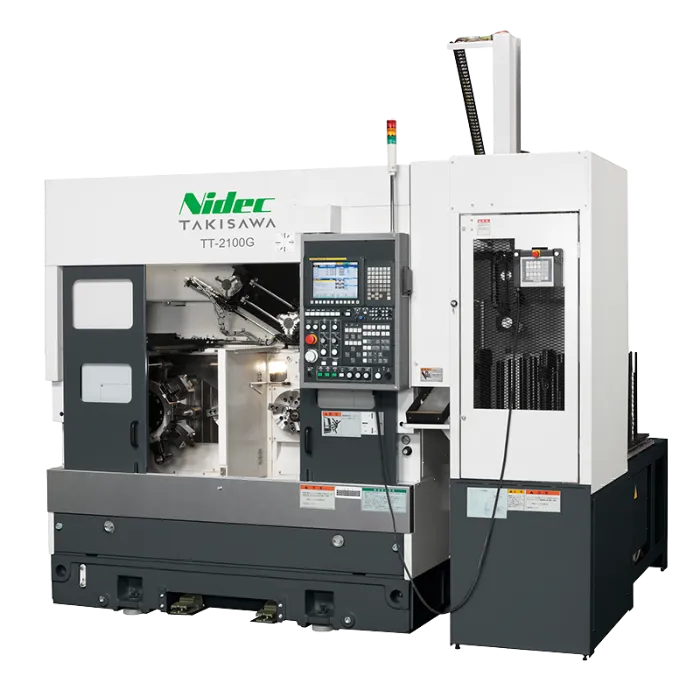

TAKISAWA TT-SERIES

The Takisawa TT Series is a parallel twin-spindle, twin-turret CNC lathe.The spindles can be controlled independently in machining. The CM specification can integrate the processes of workpieces involving both turning and milling processes.

Request A Quote

Specifications

T8
Distance Between Spindles	25.59"
Maximum Turning Diameter	18.11"
Maximum Turning Length	12.80"
Number of Spindles	2
Spindle Speed	3000 / 2000 / 4000
Spindle Horsepower	22 / 18.5 29.3 / 24.7
Number of Turrets	2
Number of Tools	8+8
Chuck Size	12"
Control	FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2)
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

T10
Distance Between Spindles	25.59"
Maximum Turning Diameter	18.11"
Maximum Turning Length	12.84"
Number of Spindles	2
Spindle Speed	3000 / 2000 / 4000
Spindle Horsepower	22 / 18.5 29.3 / 24.7
Number of Turrets	2
Number of Tools	10+10
Chuck Size	10"
Control	FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2)
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

T12
Distance Between Spindles	25.59"
Maximum Turning Diameter	18.11"
Maximum Turning Length	12.84"
Number of Spindles	2
Spindle Speed	3000 / 2000 / 4000
Spindle Horsepower	22 / 18.5 29.3 / 24.7
Number of Turrets	2
Number of Tools	12+12
Chuck Size	10"
Control	FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2)
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

CM
Distance Between Spindles	25.59"
Maximum Turning Diameter	18.11"
Maximum Turning Length	11.08"
Number of Spindles	2
Spindle Speed	3000 / 2000 / 4000
Spindle Horsepower	22 / 18.5 29.3 / 24.7
Number of Turrets	2
Number of Tools	12+12
Chuck Size	10"
Control	FANUC Oi-TD+Oi-TD(2) / FANUC Oi-TD(2)+Oi-TD(2)
Rotating Tools	12+12
Rotating Tool RPM	3600
Rotating Tool HP	4.9 / 1.5

Specification	Detail
Distance Between Spindles	27.56"
Maximum Turning Diameter	2.00"
Maximum Turning Length	2.00"
Number of Spindles	2
Spindle Speed	5000 / 8000
Spindle Horsepower	10 / 4.9
Number of Tool Posts	2
Tool Post Type	Comb Type
Number of Attachable Tools [Width]	5 [12.99"]
Chuck Size	5"
Control	FANUC Oi-TF

Specification	Detail
Distance Between Spindles	23.62"
Maximum Turning Diameter	5.5"
Maximum Turning Length	4.76"
Number of Spindles	2
Spindle Speed	4500 / 6500 min-1
Main Spindle Motor	5.5 / 3.7 7.5 / 5.5
Number of Turrets	2
Number of Tools	10+10
Chuck Size	6"

T10
Distance Between Spindles	13.38"
Maximum Turning Diameter	9.45"
Maximum Turning Length	5.33"
Number of Spindles	2
Spindle Speed	4500 / 6000
Spindle Horsepower	10 / 7.3 14.7 / 10
Number of Turrets	2
Number of Tools	10+10
Chuck Size	6"
Control	FANUC Oi-TD / 31i-B
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

T12
Distance Between Spindles	13.38"
Maximum Turning Diameter	9.45"
Maximum Turning Length	5.33"
Number of Spindles	2
Spindle Speed	4500 / 6000
Spindle Horsepower	10 / 7.3 14.7 / 10
Number of Turrets	2
Number of Tools	12+12
Chuck Size	6"
Control	FANUC Oi-TD / 31i-B
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

CM
Distance Between Spindles	13.38"
Maximum Turning Diameter	9.45"
Maximum Turning Length	5.33"
Number of Spindles	2
Spindle Speed	4500 / 6000
Spindle Horsepower	10 / 7.3 14.7 / 10
Number of Turrets	2
Number of Tools	10+10
Chuck Size	6"
Control	FANUC 31i-B
Rotating Tools	5 [Alternate]
Rotating Tool RPM	2500
Rotating Tool HP	7.3 / 4.9

T10
Distance Between Spindles	13.38"
Maximum Turning Diameter	9.45"
Maximum Turning Length	3.70"
Number of Spindles	2
Spindle Speed	3200 / 4500
Spindle Horsepower	14.7 / 10
Number of Turrets	2
Number of Tools	10+10
Chuck Size	8"
Control	FANUC Oi-TD / 31i-B
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

T12
Distance Between Spindles	13.38"
Maximum Turning Diameter	9.45"
Maximum Turning Length	3.70"
Number of Spindles	2
Spindle Speed	3200 / 4500
Spindle Horsepower	14.7 / 10
Number of Turrets	2
Number of Tools	12+12
Chuck Size	8"
Control	FANUC Oi-TD / 31i-B
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

CM
Distance Between Spindles	13.38"
Maximum Turning Diameter	9.45"
Maximum Turning Length	3.70"
Number of Spindles	2
Spindle Speed	3200 / 4500
Spindle Horsepower	14.7 / 10
Number of Turrets	2
Number of Tools	10+10
Chuck Size	8"
Control	FANUC 31i-B
Rotating Tools	5 [Alternate]
Rotating Tool RPM	2500
Rotating Tool HP	7.3 / 4.9

T10
Distance Between Spindles	17.72"
Maximum Turning Diameter	11.42"
Maximum Turning Length	8.43"
Number of Spindles	2
Spindle Speed	4000 / 3200 / 2500
Spindle Horsepower	15 / 11 20 / 14.7
Number of Turrets	2
Number of Tools	10+10
Chuck Size	8"
Control	FANUC Oi-TD / 31i-B
Rotating Tools	-
Rotating Tool RPM	-
Rotating Tool HP	-

CM
Distance Between Spindles	17.72"
Maximum Turning Diameter	11.42"
Maximum Turning Length	8.03"
Number of Spindles	2
Spindle Speed	4000 / 3200 / 2500
Spindle Horsepower	15 / 11 20 / 14.7
Number of Turrets	2
Number of Tools	10+10
Chuck Size	8"
Control	FANUC 31i-B / 32i-B
Rotating Tools	5 [Alternate]
Rotating Tool RPM	2500
Rotating Tool HP	7.3 / 4.9

T10
Distance Between Spindles	17.72"
Maximum Turning Diameter	11.42"
Maximum Turning Length	8.43"
Number of Spindles	2
Spindle Speed	3200 / 4000 / 2500
Spindle Horsepower	18.5 / 15 24.7 / 20
Number of Turrets	2
Number of Tools	10+10
Chuck Size	10"
Control	FANUC Oi-TD / 32i-B
Rotating Tools
Rotating Tool RPM
Rotating Tool HP

CM
Distance Between Spindles	17.72"
Maximum Turning Diameter	11.42"
Maximum Turning Length	8.03"
Number of Spindles	2
Spindle Speed	3200 / 4000 / 2500
Spindle Horsepower	18.5 / 15 24.7 / 20
Number of Turrets	2
Number of Tools	10+10
Chuck Size	10"
Control	FANUC 31i-B / 32i-B
Rotating Tools	5 [Alternate]
Rotating Tool RPM	2500
Rotating Tool HP	7.3 / 4.9
