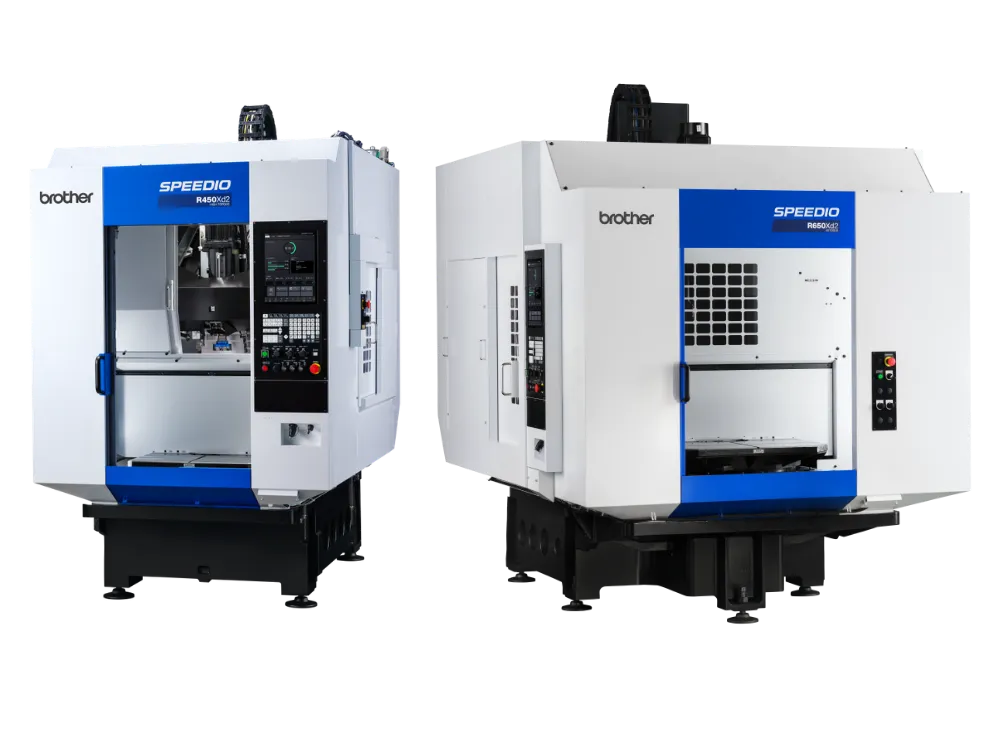

BROTHER SPEEDIO R450Xd2/R650Xd2
Built-In Automation. Keep Production Moving.
The Brother SPEEDIO R-Series is designed to cut down on time spent waiting between parts. Its built-in two-sided QT pallet changer lets operators load, unload, or prepare one pallet while machining continues on the other, keeping the spindle producing instead of waiting for the next setup.
The QT table rotates 180 degrees inside the machine to exchange pallets, giving the operator access to one side while the other is being machined. It is a practical, cost-effective form of automation built directly into the machine, without requiring a robot or separate automation cell.
With pallet changes as fast as 2.7 seconds on the R450Xd2 and 3.1 seconds on the R650Xd2, the R-Series is built for repeat production where reducing non-cutting time matters.
Request A Quote
Tooling Options
Automate With FLEX3
Specifications
Specifications
| Specification |
Detail |
| ATC Capacity |
14/22/28 |
| X Axis Travel |
17.7" |
| Y Axis Travel |
12.6" |
| Z Axis Travel |
12.0" |
| Work area size |
23.6" x 11.8" |
| Max loading capacity |
265 lbs |
| Tapping RPM |
6,000 |
| Rapid Traverse |
1,969 IPM (X, Y, Z) |
| Cutting feed rate |
X, Y, Z: 1~30,000 mm/min (0.04 ~ 1,181 in/min) |
| Tool shank type |
MAS-BT30 |
| Max tool length |
7.9" |
| Max tool diameter |
3.1" |
| Max tool weight |
6.6 lbs |
| Chip to Chip (sec.) |
1.3/1.5 |
| Tool to Tool (sec.) |
0.6/0.7 |
Features
Features
Keep Machining While You Set Up
Machine one pallet while you load, unload, or set up the other. The two-sided QT table reduces spindle downtime between parts.
Fast Automatic Pallet Changeover
Brother’s Quick Turn table changes pallets in 2.7 seconds on the R450Xd2 and 3.1 seconds on the R650Xd2. Its turntable design doesn't require a lift-up motion and uses an enclosed structure designed to limit chips' effects on the mechanism.
Make Better Use of Operator Time
Because loading and setup can happen outside the machining area, an operator doesn't have to wait for every machining cycle to finish before preparing the next part. That makes the R-Series especially relevant for repeat production and environments where one operator is supporting multiple machines.
Reduce Non-Cutting Time Further
Brother coordinates pallet rotation with tool change, X/Y positioning, and additional-axis positioning so multiple non-cutting operations can happen simultaneously rather than sequentially.
20,000 RPM Spindle Option
The R450Xd2 and R650Xd2 offer an optional 20,000 RPM spindle, expanding high-speed machining capability beyond the previous generation’s 16,000 RPM option. A 12,000 RPM spindle remains standard, with a high-torque spindle option also available.
