UG Series

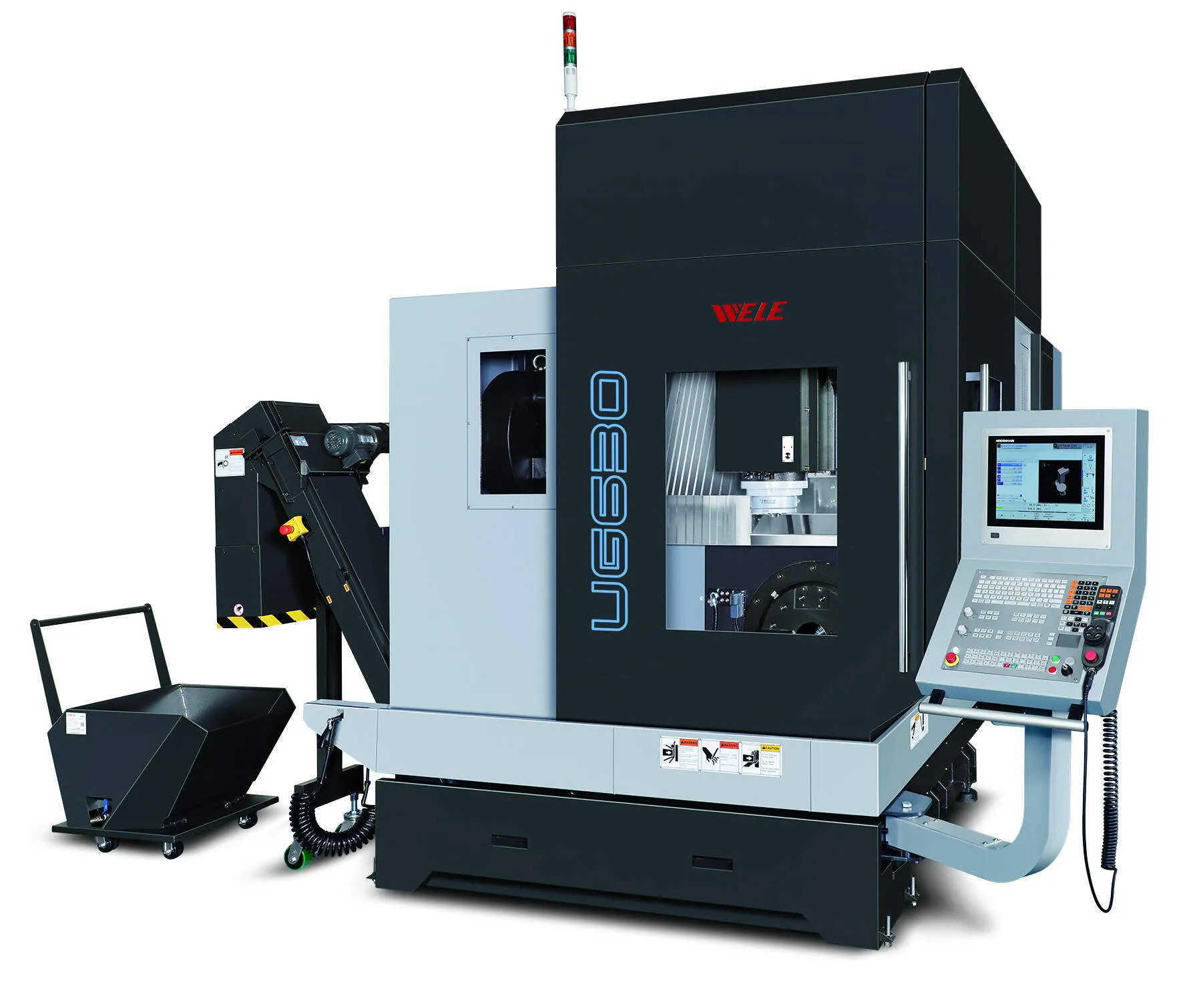

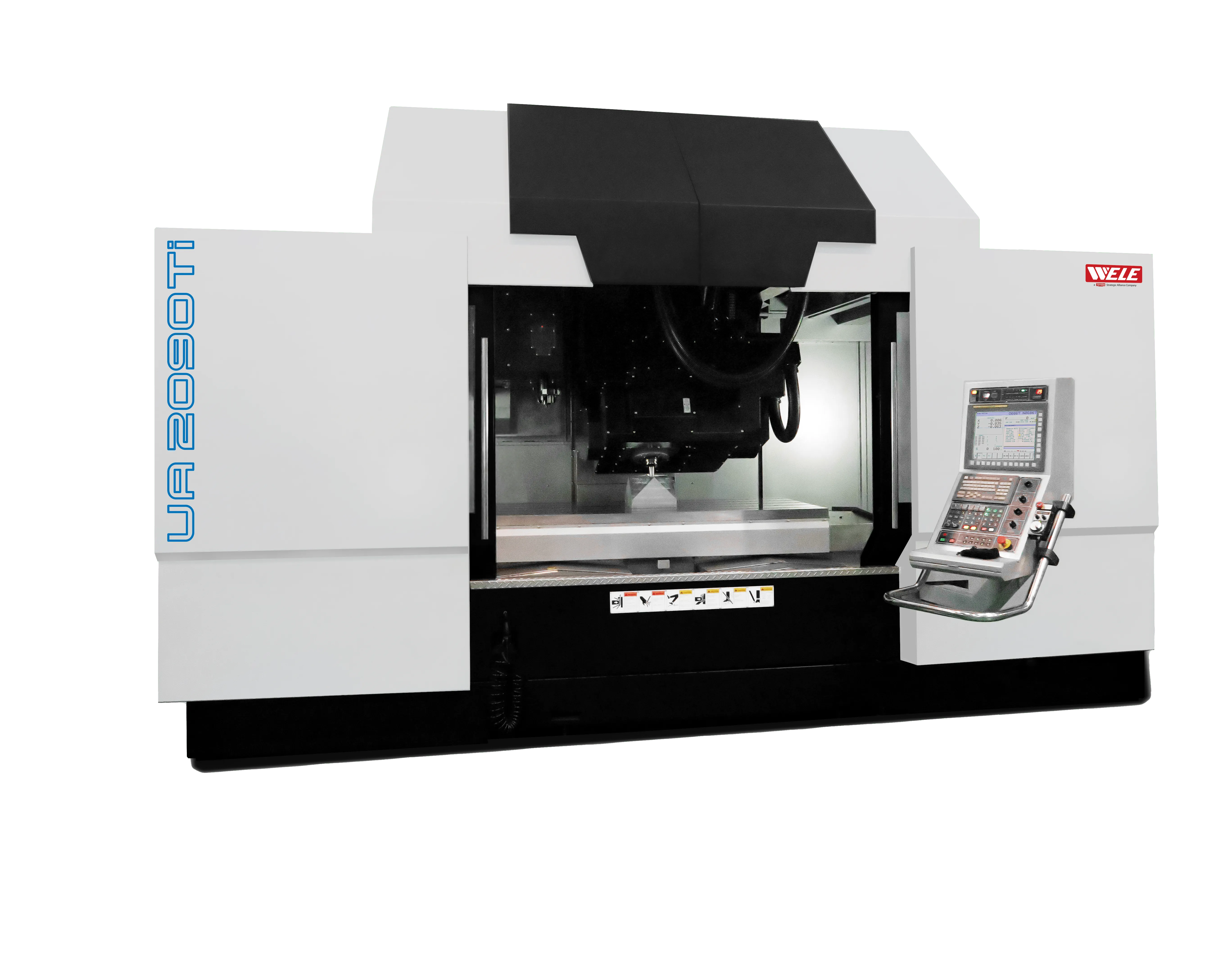

The UG630, UG800, and UA2090Ti are high-performance 5-axis machining centers combining quality, reliability, and precision. They feature advanced overhead gantry or tilting head designs, integrated high-precision trunnion rotary tables, and robust thermal and counterbalance systems for stable, accurate machining of large or hard alloy components.
Request A Quote
Specifications
Specifications
| X-axis Travel |
640 mm / 25.1 in |
| Y-axis Travel (spindle head) |
520 mm / 20.4 in |
| Z-Axis Travel |
460 mm / 18.1 in |
| Distance from Spindle Nose to Table Top |
150-610 mm / 5.9 – 24.0 in |
| Spindle Speed |
15,000 RPM |
| Spindle Drive Motor |
38 HP (kW) |
| Tool Taper |
CAT40 |
| Table diameter |
31.5” (800 mm) |
| X-axis Travel |
31.5” (800 mm) |
| Y-axis Travel (spindle head) |
37.4” (950 mm) |
| Z-Axis Travel |
25.6” (650 mm) |
| Distance from Spindle Nose to Table Top |
0” to 25.6” (0 mm to 650 mm) |
| Spindle Speed |
22,000 RPM |
| Spindle Drive Motor |
35 HP (kW) |
| Tool Taper |
HSKA63 |
| Rapid Traverse X, Y, & Z Axes |
1,889.8 in/min (48,000 mm/min) |
| Clamping Area |
84.6" x 35.4" (2,150 mm x 900 mm) |
| X-axis Travel |
78.7"(2,000 mm) |
| Y-axis Travel (spindle head) |
35.4"(900 mm) |
| Z-Axis Travel |
27.5" (700 mm) |
| Distance Between Table and Spindle Nose in Vertical Position |
3.1" to 30.7" (80 mm to 780 mm) |
| A-axis Swiveling Range |
± 30° |
| B-axis Rotating Range(table) |
± 30° |
| Maximum Table Load |
4,850 lb (2,200 kg) |
| Spindle Speed |
30 HP (22 kW) / 35 HP (25 kW) |
| Spindle Torque |
811 ft-lb (1,100 Nm) |
| Spindle Nose |
Direct Drive (Big Plus #50): 8,000 RPM |
| Rapid feedrate - X axis |
30 (40 Optional) |
| Rapid feedrate - Y axis |
209" x 130" x 157" (5,300 mm x 3,300 mm x 3,990 mm) |
| Machine Weight |
50,706 lb (23,000 kg) |
| Chip Conveyor |
Hinged Belt Lift Up type, 47" Drop Height from floor |
