Drill Tap Centers

Drill Tap Centers

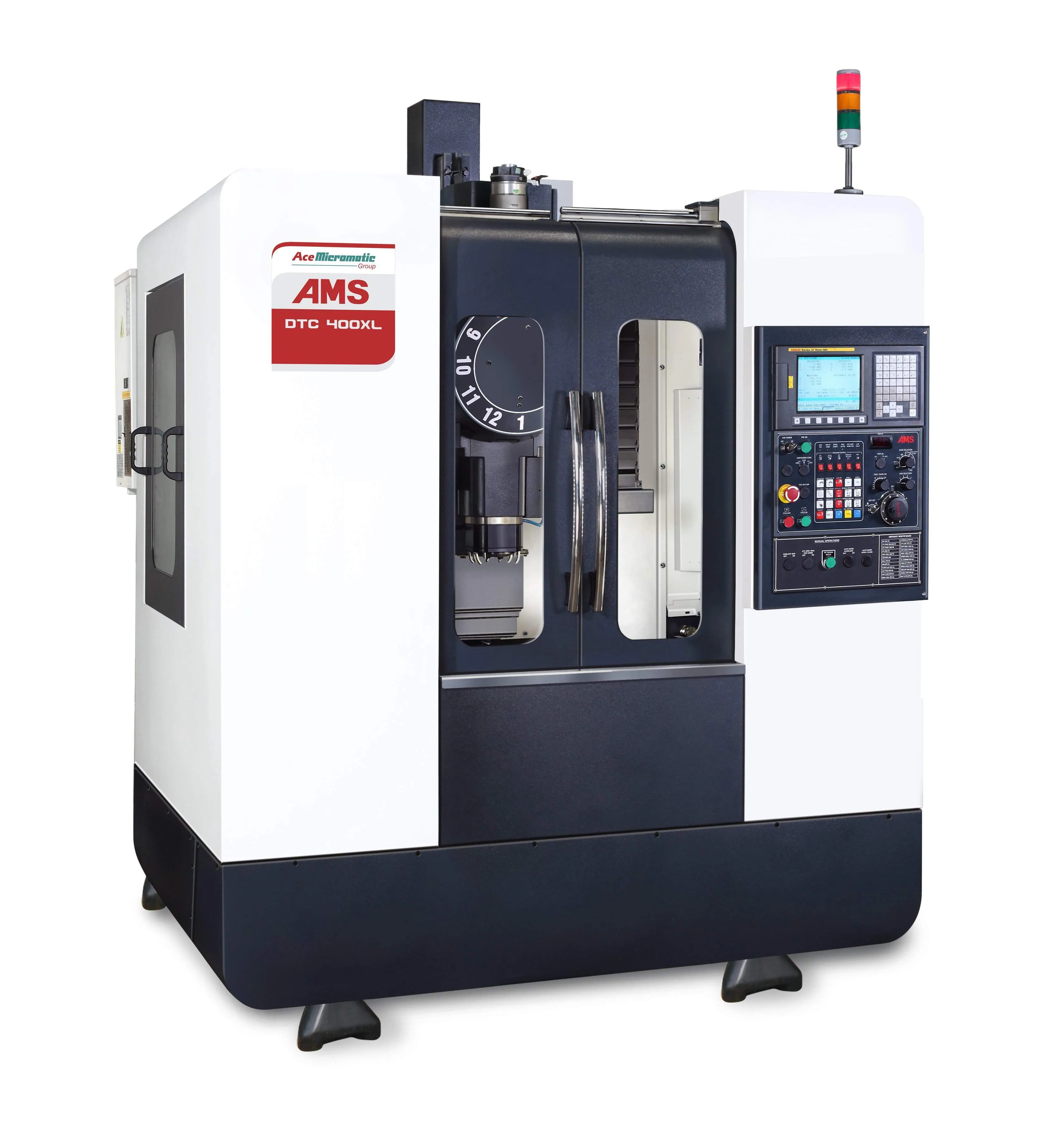

The DTCXL and XL-L machines are designed for drill tap applications and full milling capabilities. These compact machines are designed from the ground up to shave cycle times through both high speed and accurate machining. The added capability of the large capacity (24) pocket tool changer allows for the DTC line to handle applications traditionally pushed off to a larger style machine.

Request A Quote

Specifications

Specifications

X-axis Travel 19.68" (500 mm)
Y-axis Travel (spindle head) 15.75" (400 mm)
Z-Axis Travel 12.6" (320 mm)
Rapid Traverse X, Y, and Z Axes 2,362 / 2,362 / 1, 890 ipm (60 / 60 / 48 m/min)
CNC Controller Fanuc 0iMF
Table Size 29.35" x 15.75" (750 x 400 mm)
Maximum Table Load 660 lb (300 kg)
Spindle Nose 150 - 15,000 RPM
Rapid feedrate - X axis 24
Maximum Tool Diameter 3.15" (80 mm)
Tool Shank Type Bi-Directional & Random
Machine Weight 7,000 lb (3,200 kg)

X-axis Travel 27.5” (700 mm)
Y-axis Travel (spindle head) 15.7” (400 mm)
Z-Axis Travel 12.6” (320 mm)
Rapid Traverse X, Y, and Z Axes 1,969 / 1,969 / 1,575 ipm (50 / 50 /40 m/min)
CNC Controller Fanuc 0iMF
Table Size 33.4" x 15.7" (850 x 400 mm)
Maximum Table Load 660 lb (300 kg)
Spindle Nose 100 ~ 10,000 RPM
Rapid feedrate - X axis 24
Maximum Tool Diameter (Diameter x Length) ø3.14" x 7.87" (ø80 x 200 mm)
Tool Shank Type Bi Directional Random
Machine Weight 7,940 lb (3,600 kg)
