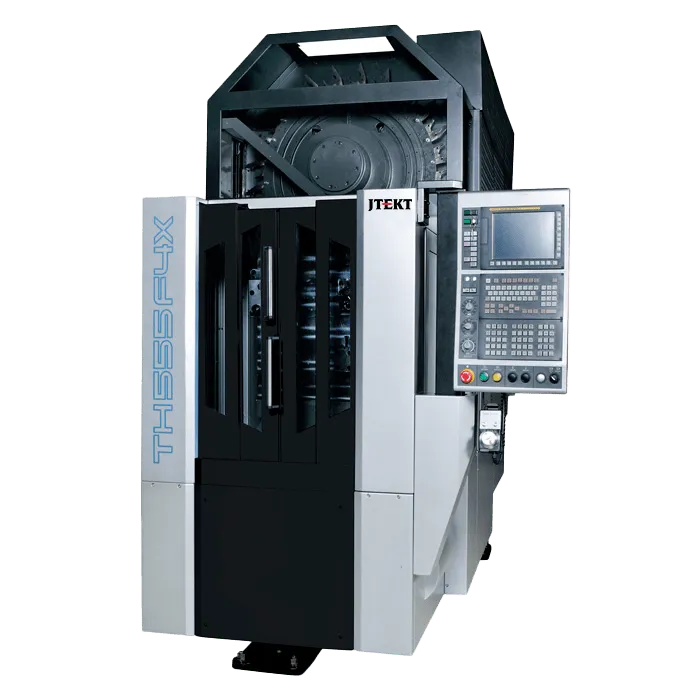

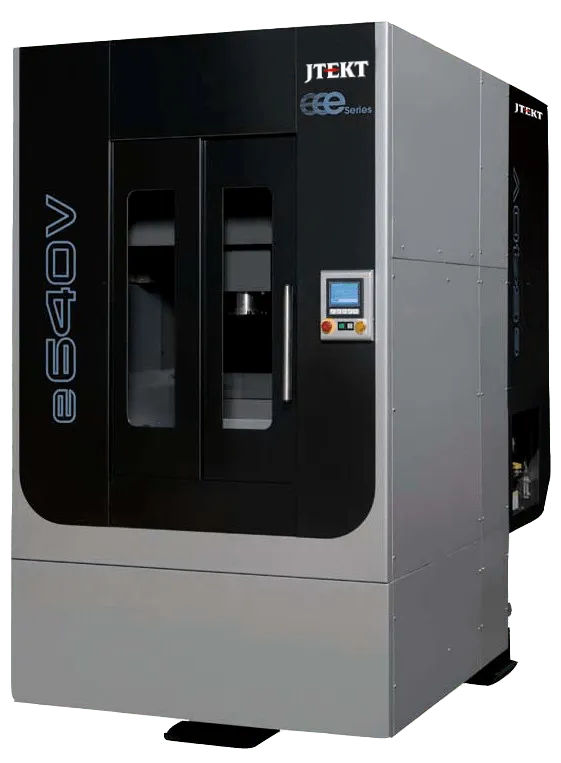

The TH555 F4X, TH555i4, and e640V are high-performance, space-saving machining centers designed for efficient parts production. They feature solid cast iron bases, cylindrical roller guides, and rapid spindles—up to 12,000 RPM on the e640V—for precise, high-speed machining. Optimized for manual or automated cells, these machines include advanced features such as right- and left-hand configurations, through-table hydraulics, broken tool detection, ultra-fast tool changes, and automation-ready interfaces for production-line efficiency.

Request A Quote

Specifications

Specifications

Controller Fanuc 32iMB
Rotary Table Size Ø 23.03" (Ø 585 mm)
Table Index NC Rotary Table (360,000 positions)
Table Options TILT Table (4th Axis) OR TILT/TURN Table (5-Axis)
X-axis Travel 19.68" (500 mm)
Y-axis Travel (spindle head) 21.65" (550 mm)
Z-Axis Travel 20.87" (530 mm)
Max. Workpiece Swing (diameter) Ø 31.50" (Ø 800 mm)
Max. Workpiece Height 51.18" (1,300 mm)
Maximum Work Load on the Table 1,764 lb (800 kg)
Maximum Spindle Output Torque 258 ft-lb (350 Nm)
Spindle Speed HSK A63 40 HP 8,000 RPM (Oversized 100 mm Bearing ID)
Spindle Speed HSK A100 40 HP 8,000 RPM (100 mm Bearing ID)
Spindle Taper 2,362 ipm (60 m/min)
Rapid Feedrate (X,Y and Z) 2,362 ipm (60 m/min)
Tool Storage Capacity 2,362 ipm (60 m/min)
Rapid feedrate - X axis 20 Standard (30 Optional)
Rapid feedrate - Y axis 51.18" x 161.81" (1,300 mm x 4,110 mm)
Rapid feedrate - Z axis 115.24" (2,927 mm)
Cutting feedrate 16,534 lb (7,500 kg)

Controller Fanuc 32iMB
Rotary Table Size Ø 23.03" (Ø 585 mm)
Table Index NC Rotary Table (360,000 positions)
Table Options TILT Table (4th Axis) OR TILT/TURN Table (5-Axis)
X-axis Travel 19.68" (500 mm) Option = 23.62" (600mm)
Y-axis Travel (spindle head) 21.65" (550 mm)
Z-Axis Travel 20.87" (530 mm)
Max. Workpiece Swing (diameter) Ø 31.50" (Ø 800 mm)
Max. Workpiece Height 51.18" (1,300 mm)
Maximum Work Load on the Table 1,764 lb (800 kg)
Maximum Spindle Output Torque 105 ft-lb (143 Nm)
Spindle Speed HSK-A63 30 HP 8,000 RPM (Ø80 Bearing ID)
Spindle Taper 2,362 ipm (60 m/min)
Rapid Feedrate (X,Y and Z) 2,362 ipm (60 m/min)
Tool Storage Capacity 2,362 ipm (60 m/min)
Rapid feedrate - X axis 20 Standard (30 Optional)
Rapid feedrate - Y axis 48.03" x 150.0" (1,220 mm x 3,810 mm)
Rapid feedrate - Z axis 104.72" (2,660 mm)
Cutting feedrate 14,770 lb (6,700 kg)

Controller Fanuc 32i MB
Work Envelope 18.90" x 29.53" (480 mm x 750 mm)
Table Index NC Rotary TILT Table (360,000 positions)
X-axis Travel 23.62" (600 mm)
Y-axis Travel (spindle head) 19.69" (500 mm)
Z-Axis Travel 15.75" (400 mm)
Max. Workpiece Swing (diameter) Ø23.62" (Ø600 mm)
Maximum Table Load 551.16 lb (250 kg)
Spindle Torque 48 Nm
Spindle Speed HSK-A63 15 HP 12,000 RPM
Spindle Taper 1,889.76 ipm (48 m/min)
Rapid Feedrate (X,Y and Z) 1,889.76 ipm (48 m/min)
Tool Storage Capacity 1,889.76 ipm (48 m/min)
Rapid feedrate - X axis 22 Standard
Rapid feedrate - Y axis 55.12" x 144.06" (1,400 mm x 3,659 mm)
Rapid feedrate - Z axis 100.63" (2,556 mm)
Cutting feedrate 12,125 lb (5,500 kg)
Notes Includes Fixture Hyd PU & Valves
