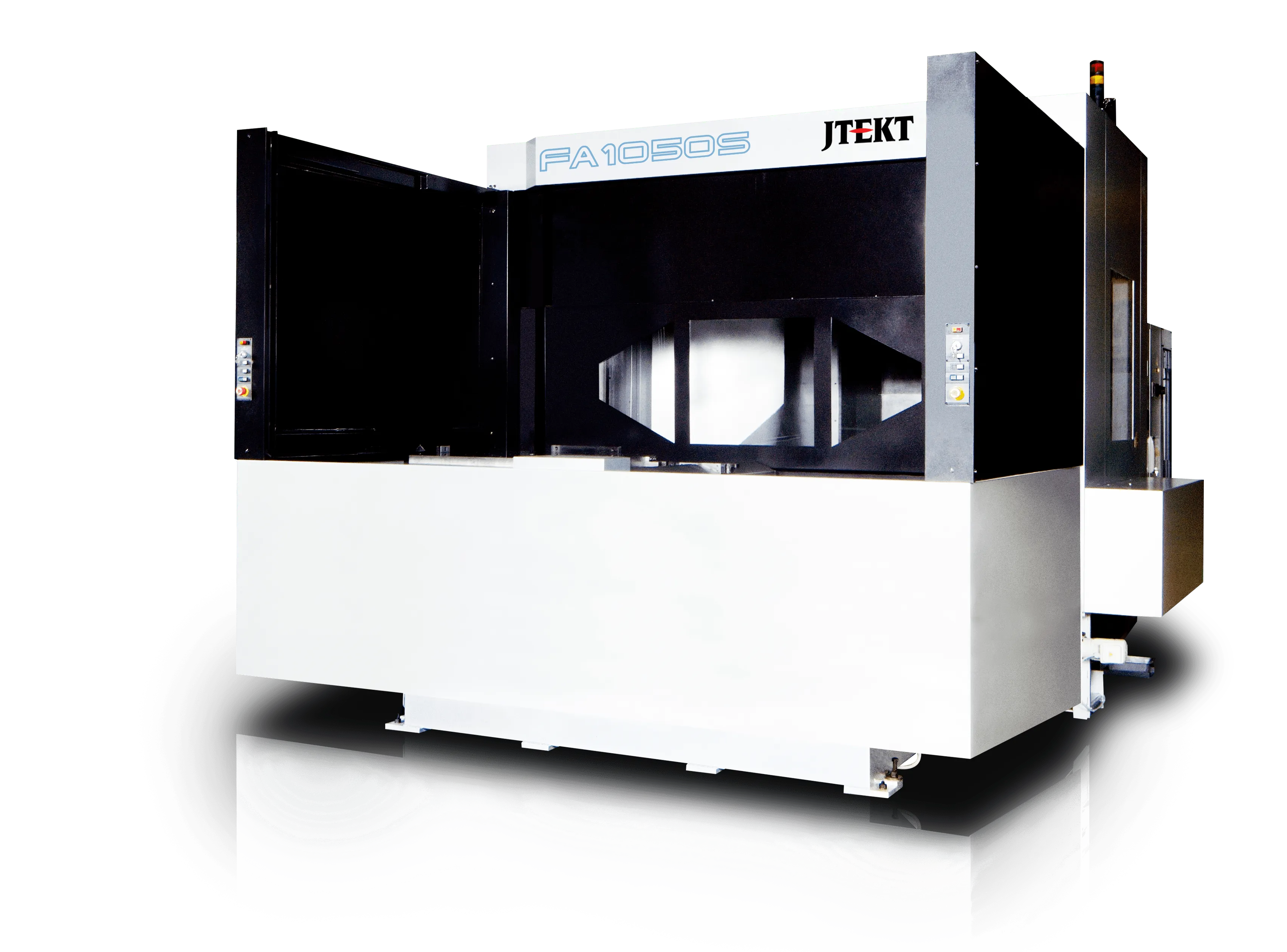

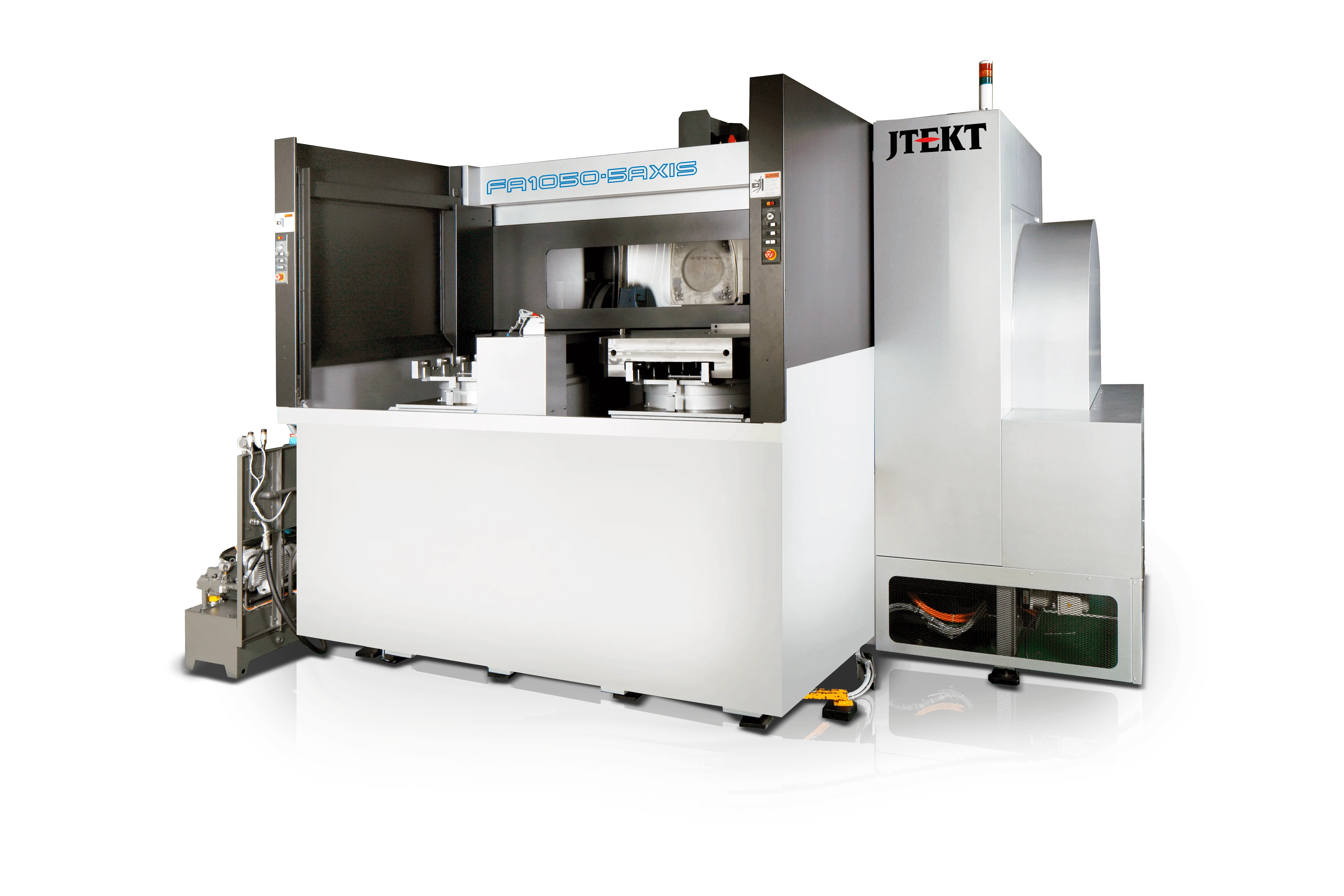

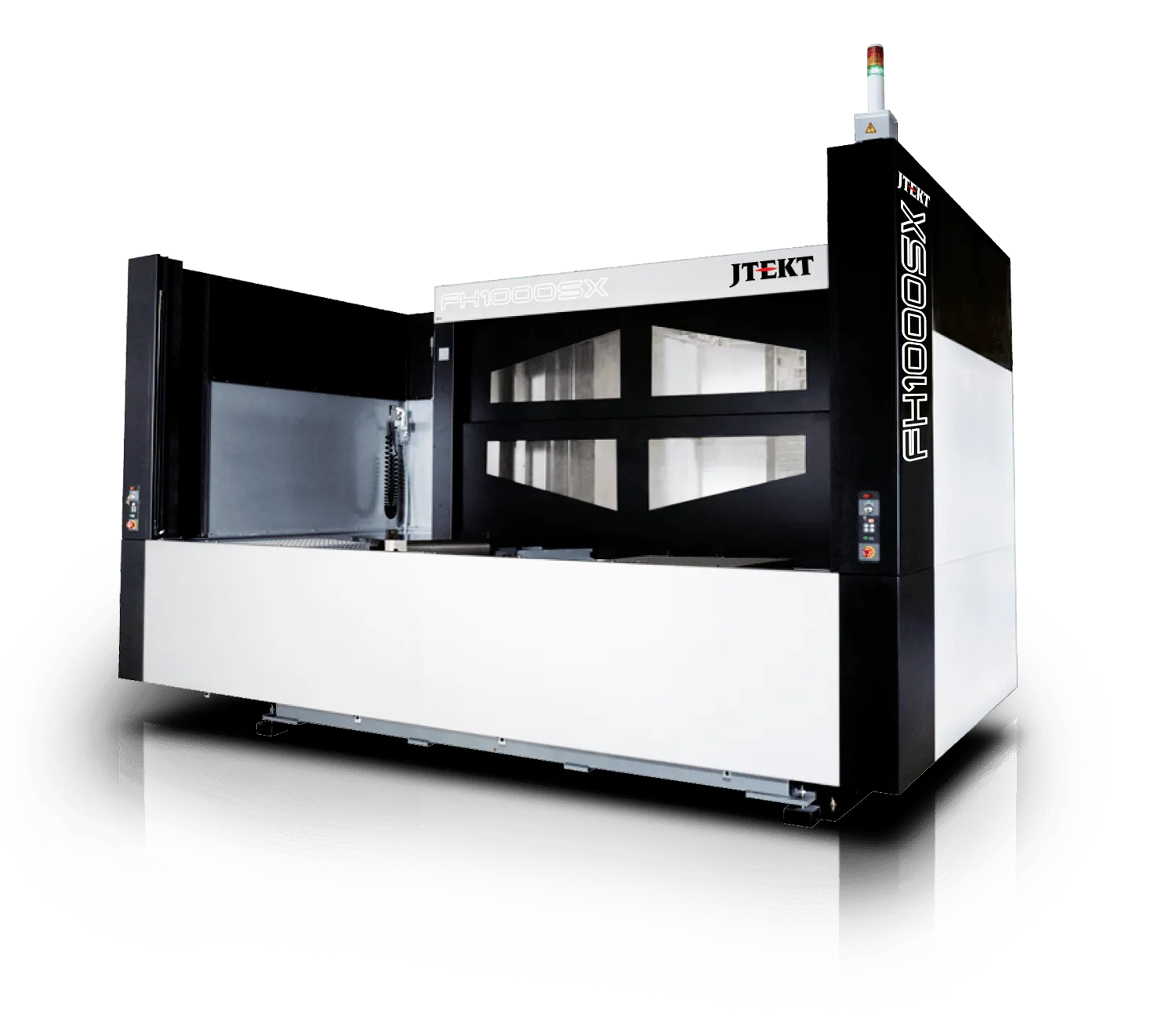

The FH1000SX, FA1050S, and FA1050S 5-Axis are high-performance horizontal machining centers designed for precision and heavy-duty machining. They feature spindles up to 15,000 RPM, dual ballscrew drives on the Y and Z axes, and rigid bases to minimize vibration. With robust columns, large workpiece capacity, and high rapid feedrates, these machines handle complex and demanding applications, including 5-axis machining with precise trunnion table positioning for heavy workpieces.

Request A Quote

Specifications

Specifications

Pallet Size 39.4" x 31.5" (1,000 mm x 800 mm)
X-axis Travel 63.0" (1,600 mm)
Y-axis Travel (spindle head) 55.1" (1,400 mm)
Z-Axis Travel 72.8" (1,850 mm)
Max. Workpiece Swing (diameter) 70.87” (1,800 mm)
Max. Workpiece Height 62.99” (1,600 mm)
Maximum Load on Pallet 6,600 lb (3,000 kg)
Spindle Torque 887 ft-lb (1,202 Nm)
Spindle Speed 8,000, 15,000 RPM
Spindle Taper CAT50
Rapid Feedrate (X,Y and Z) 2,126 ipm (54 m/min)
Tool Storage Capacity 60, 121, 240, 330

Pallet Size 41.3" x 41.3" (1,050 mm x 1,050 mm)
Table Index Rotary table (1 degree)
X-axis Travel 63” (1,600 mm)
Y-axis Travel (spindle head) 55.1” (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max. Workpiece Swing (diameter) 72.83” (1,850 mm)
Max. Workpiece Height 61.02” (1,550 mm)
Maximum Load on Pallet 6,600 lb (3,000 kg)
Spindle Speed 6,000 RPM
Rapid Feedrate (X,Y and Z) 944 ipm (24 m/min)

Pallet Size 41.3" x 41.3" (1,050 mm x 1,050 mm)
X-axis Travel 59.1" (1,500 mm)
Y-axis Travel (spindle head) 55.1" (1,400 mm)
Z-Axis Travel 45.2” (1,150 mm)
Max. Workpiece Swing (diameter) 51.18” (1,300 mm)
Max. Workpiece Height 32.48” (825 mm)
Maximum Load on Pallet 4,400 lb (2,000 kg)
Spindle Speed 6,000, 8,000, 15,000 RPM
Spindle Taper CAT50
Rapid Feedrate (X,Y and Z) 944 ipm (24 m/min)
Tool Storage Capacity 60, 190, 240, 384
