5000 Series

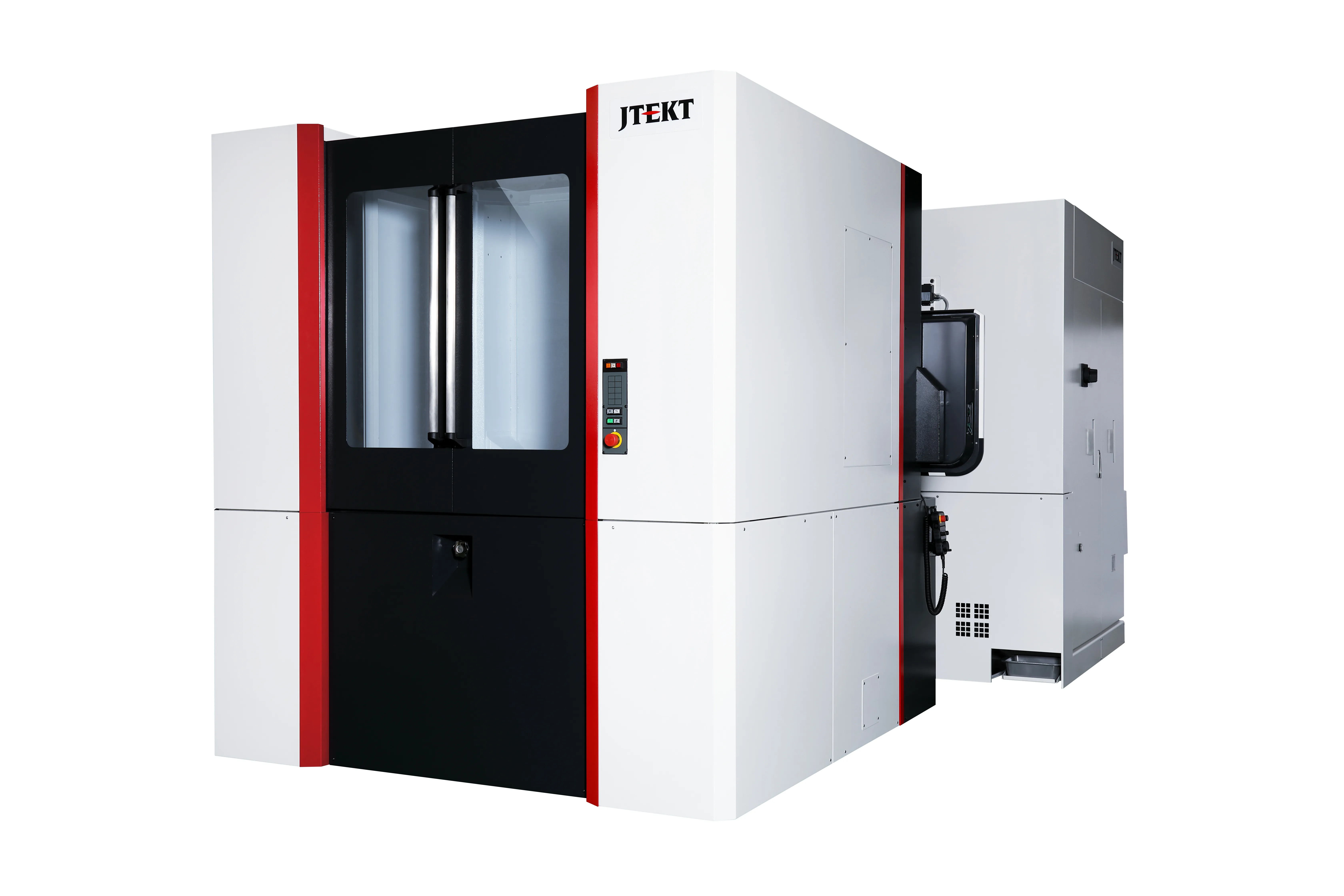

Designed to achieve remarkable speed and production reliability, JTEKT’s FH5000 Series meets the growing demand for high metal removal rates, short cycle times and superior surface finishes. It features standard 60-tool ATC capacity, along with a 15,000 RPM, 50 HP (37 kW), 303 Nm (223 ft-lbs.) high acceleration spindle. Equipped with a direct drive B-axis table featuring an index time (90°) of 0.7 seconds - the FH5000’s spindle design, preload system and high torque features allow manufacturers to take advantage of more aggressive, high-volume machining in a compact footprint.
Request A Quote
Specifications
Specifications
| Pallet Size |
21.65 x 21.65 (550 x 550) in (mm) |
| X-axis Travel |
35.40 (800) in (mm) |
| Y-axis Travel (spindle head) |
31.50 (800) in (mm) |
| Z-Axis Travel |
34.60 (880) in (mm) |
| Max. Workpiece Swing (diameter) |
35.40 (900) in (mm) |
| Max. Workpiece Height |
43.30 (1,100) in (mm) |
| Maximum Load on Pallet |
2,200 (1,000) lb (kg) |
| Spindle Torque |
223 (303) ft-lb (Nm) |
| Spindle Speed |
15,000 / 20,000opt. RPM |
| Spindle Taper |
CAT40 |
| Rapid Feedrate (X,Y and Z) |
2,362 (60) ipm (m/min) |
| Tool Storage Capacity |
60, 90, 120, 180, 240, 330 |
| Pallet Size |
21.65 x 21.65 (550 x 550) in (mm) |
| X-axis Travel |
31.50 (900) in (mm) |
| Y-axis Travel (spindle head) |
31.50 (800) in (mm) |
| Z-Axis Travel |
34.60" (880) in (mm) |
| Max. Workpiece Swing (diameter) |
35.40 (900) in (mm) |
| Max. Workpiece Height |
43.30 (1,100) in (mm) |
| Maximum Load on Pallet |
2,200 (1,000) lb (kg) |
| Spindle Torque |
223 (303) ft-lb (Nm) |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
2,362 (60) ipm (m/min) |
| Tool Storage Capacity |
60, 120, 240, 330 |
| Pallet Size |
21.65 x 21.65 (550 x 550) in (mm) |
| X-axis Travel |
35.40 (900) in (mm) |
| Y-axis Travel (spindle head) |
31.50 (800) in (mm) |
| Z-Axis Travel |
34.60 (880) in (mm) |
| Max. Workpiece Swing (diameter) |
35.40 (900) in (mm) |
| Max. Workpiece Height |
43.30 (1,100) in (mm) |
| Maximum Load on Pallet |
2,200 (1,000) lb (kg) |
| Spindle Torque |
390 (530) ft-lb (Nm) |
| Spindle Speed |
15,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
2,362 (60) ipm (m/min) |
| Tool Storage Capacity |
60, 120, 240, 330 |
