FH12500 Series

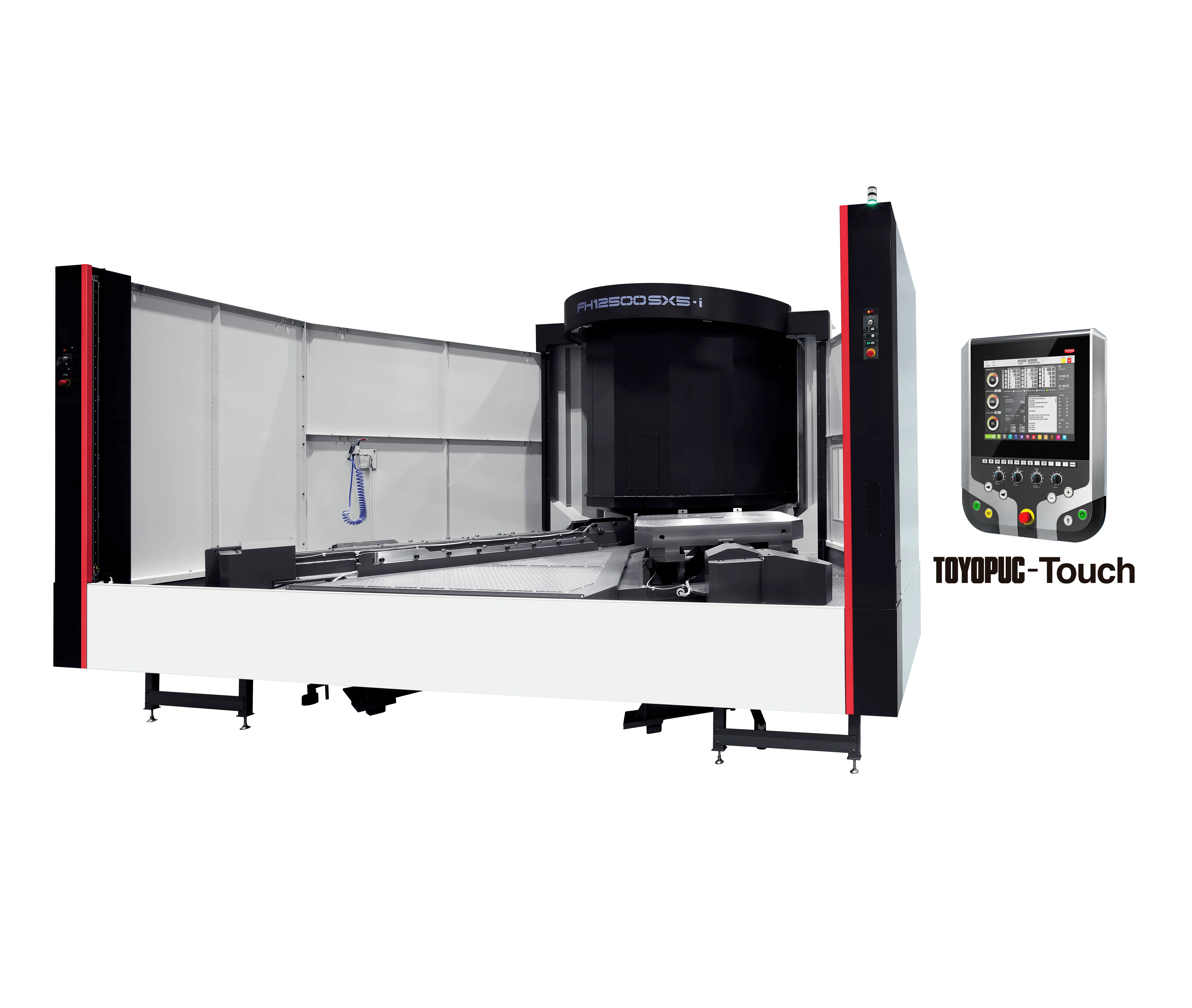

The FH12500SX-i and FH12500SW-i are high-speed, powerful horizontal machining centers designed to reduce cycle times on large components. Both feature cylindrical roller guides, dual ballscrew drives on the Y and Z axes for increased rigidity, and gear-driven spindles delivering up to 1,620 ft.lbs of torque, with available options up to 15,000 RPM. The series offers rapid feedrates of 1,654 ipm and fast chip-to-chip tool changes for maximum productivity.
Request A Quote
Specifications
Specifications
| Pallet Size |
49.2" x 49.2" (1,250 mm x 1,250 mm) |
| X-axis Travel |
94.4" (2,400 mm) |
| Y-axis Travel (spindle head) |
70.8" (1,800 mm) |
| Z-Axis Travel |
72.8" (1,850 mm) |
| Max. Workpiece Swing (diameter) |
94.5" (⌀2,400 mm) |
| Max. Workpiece Height |
70.80" (1,800 mm) |
| Maximum Load on Pallet |
11,000 lbs (5,000 kg) |
| Spindle Torque |
887 (1,202) ft-lb (Nm) |
| Spindle Speed |
8,000, 15,000 RPM |
| Spindle Taper |
CAT50 |
| Rapid Feedrate (X,Y and Z) |
1,654 ipm (42 m/min) |
| Tool Storage Capacity |
60, 120, 240, 330 |
| Pallet Size |
49.2" x 49.2" (1,250 mm x 1,250 mm) |
| Table Index |
Full NC table (360,000 positions) |
| X-axis Travel |
94.4" (2,400 mm) |
| Y-axis Travel (spindle head) |
70.8" (1,800 mm) |
| Z-Axis Travel |
72.8" (1,850 mm) |
| W-Axis Travel |
22" (560 mm) |
| Quill Diameter |
5.12" (130 mm) |
| Spindle Speed |
4,000 RPM |
| Spindle Torque |
2,200 Nm (4,000 RPM Spindle) |
| Max. Workpiece Swing (diameter) |
94.5" (⌀2,400 mm) |
| Max. Workpiece Height |
78.7" (⌀2,000 mm) |
| Maximum Load on Pallet |
11,000 lbs (5,000 kg) |
| Spindle Taper |
1,654 ipm (42 m/min) |
| Rapid Feedrate (X,Y and Z) |
1,654 ipm (42 m/min) |
| Tool Storage Capacity |
1,654 ipm (42 m/min) |
| Rapid feedrate - X axis |
60, 120, 240, 330 |
| Rapid feedrate - Y axis |
141.7" x 271.6" (3,600 mm x 6,900 mm) |
| Cutting feedrate |
105,600 lbs. (48,000 kg) |
