EX-2000 Series

EX-2000 Series

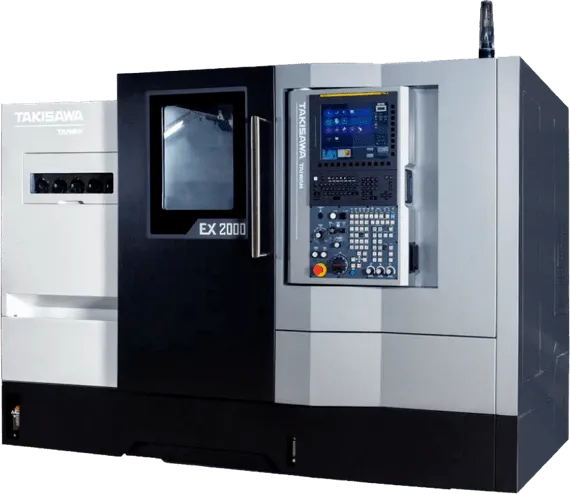

The Taiwan Takisawa EX-2000 series is a new generation of high rigidity and high precision turning centers capable of handling a variety of parts. The space-saving design and faster traverse rate helps achieve high productivity, while the box-type flat bed with oil cooling maintains accurate stability.
All models are equipped with a milling turret, a variety of high precision accessories, and a part loader for automation. Y-axis, tailstock, or sub-spindle is available for option.

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter) 19.7" (800 mm)
Max Turning Diameter 15.35" (390 mm)
Max Turning Length 21.10" (510.5 mm)
Max Bar Work Capacity 2.55" (65 mm)
X-axis Travel 9.85" (250 mm)
Z-Axis Travel 23.2" (590 mm)
Spindle Drive Motor (30 min. / cont.) 8" (203 mm)
Number of Spindles 1
Spindle Nose 4,500 rpm
Chuck Size A2-6
Through Hole Diameter 3" (76 mm)
Number of Tools T12

Max. Workpiece Swing (diameter) 19.7" (800 mm)
Max Turning Diameter 15.35" (390 mm)
Max Turning Length 21.10" (510.5 mm)
Max Bar Work Capacity 2.55" / 2.05" (65 mm / 52mm)
X-axis Travel 9.85" (250 mm)
Z-Axis Travel 23.2" (590 mm)
Number of Spindles 2
Spindle Nose 4,500 / 5,000 rpm
Chuck Size A2-5 / A2-6
Through Hole Diameter 3" / 2.4" (76 mm / 61 mm)
Number of Tools T12

Max. Workpiece Swing (diameter) 19.7" (800 mm)
Max Turning Diameter 15.35" (390 mm)
Max Turning Length 21.10" (510.5 mm)
Max Bar Work Capacity 2.55" (65 mm)
X-axis Travel 9.85" (250 mm)
Y-axis Travel (spindle head) ±1.97" (50 mm)
Z-Axis Travel 23.2" (590 mm)
Spindle Drive Motor (30 min. / cont.) 8" (203 mm)
Number of Spindles 1
Spindle Nose 4,500 rpm
Chuck Size A2-6
Through Hole Diameter 3" (76 mm)
Number of Tools T12

Max. Workpiece Swing (diameter) 19.7" (800 mm)
Max Turning Diameter 15.35" (390 mm)
Max Turning Length 21.10" (510.5 mm)
Max Bar Work Capacity 2.55" / 2.05" (65 mm / 52mm)
X-axis Travel 9.85" (250 mm)
Z-Axis Travel 23.2" (590 mm)
Y-axis Travel (spindle head) 1.97" (50 mm)
Number of Spindles 2
Spindle Nose 4,500 / 5,000 rpm
Chuck Size A2-5 / A2-6
Through Hole Diameter 3" / 2.4" (76 mm / 61 mm)
Number of Tools T12
