FX Series

FX Series

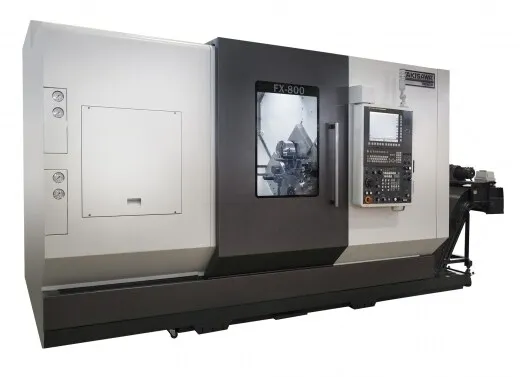

Heavy duty twin turrets and highly rigid twin spindles make the FX-800 the perfect machine for short cycle times and high volumes.

Twin spindles and turrets
Built-in spindle
X & Y axis box guideway

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter)	11.8" (300 mm)
Max Turning Diameter	11.8" (300 mm)
Max Turning Length	20" (510 mm)
Max Bar Work Capacity	1.65" (42 mm)
X1 Travel	7.1" (180 mm)
X2 Travel	7.1" (180 mm)
Z1 Travel	21.2" (540 mm)
Z2 Travel	21.2" (540 mm)
Spindle Nose	Ø 140 fiat
Spindle Speed	6000 RPM
Spindle Drive Motor (30 min. / cont.)	11/7.5 (15/10) kW (HP)
Chuck Size	6" in

Max. Workpiece Swing (diameter)	10.2" (260 mm)
Max Turning Diameter	10.2" (260 mm)
Max Turning Length	25.9" (657 mm)
Max Bar Work Capacity	2.5" (65 mm)
Max Bar Work Capacity	[2" (52 mm)]
X1 Travel	8.5" (215 mm)
X2 Travel	8.5" (215 mm)
Z1 Travel	29.5" (750 mm)
Z2 Travel	29.3" (745 mm)
Spindle Nose	4,500 RPM
Spindle Speed	20 HP (15 kW) for 30 min. / 15 HP (11 kW) cont.
Spindle Speed	15 HP (11 kW) for 30 min. / 10 HP (7.5 kW) cont.
Spindle Drive Motor (30 min. / cont.)	8" (203 mm)
Chuck Size	3" (76 mm)
Chuck Size	2.5" (63 mm)
