LA-200 Series
LA-200 Series
LA-200 Series

LA-200 Series

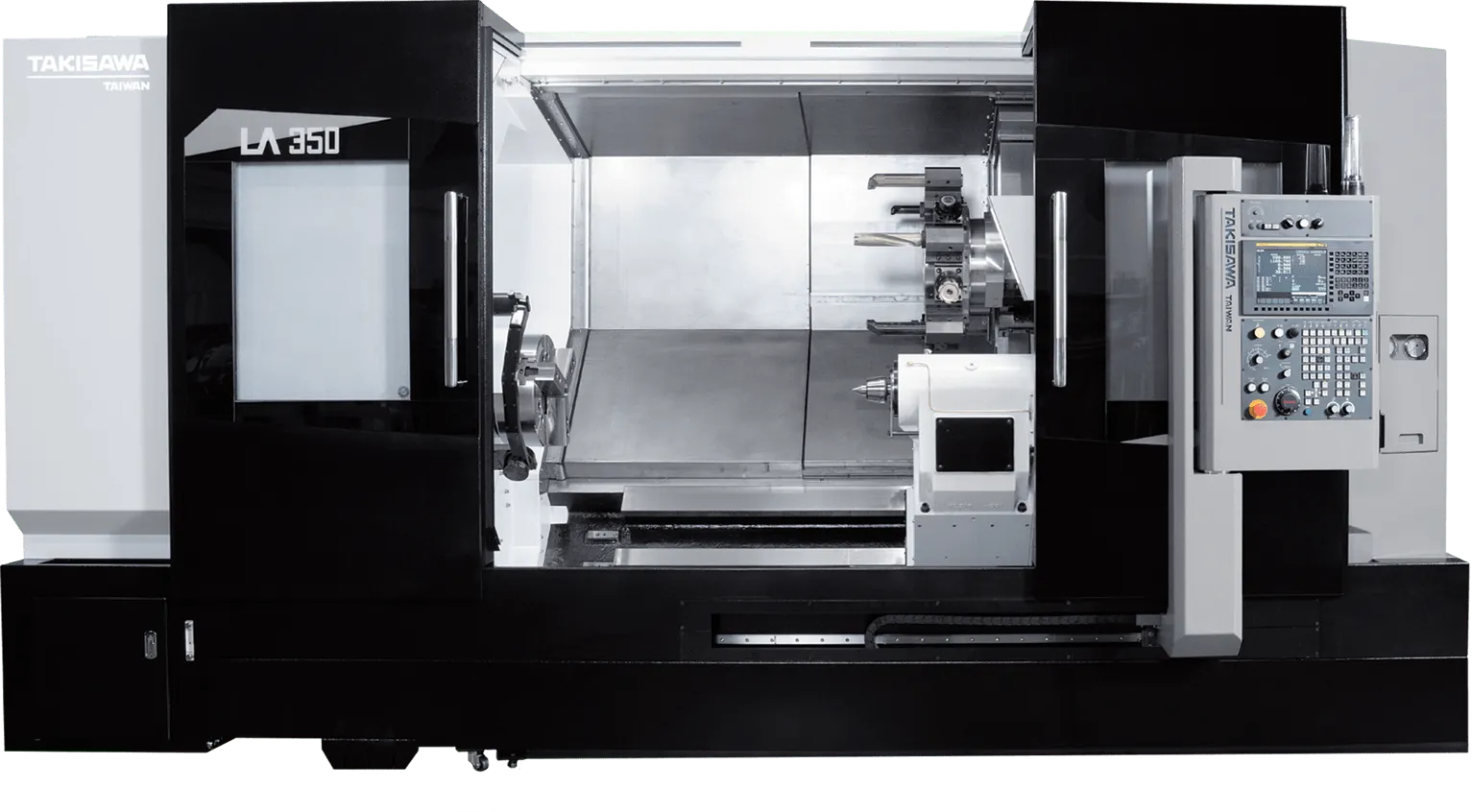

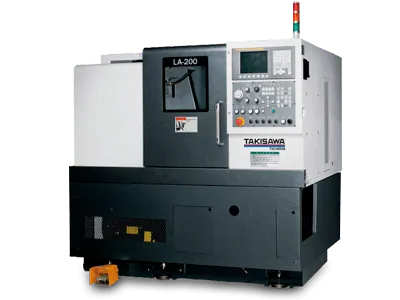

The LA series, including the LA-200 and LA-350Y, are high-performance turning centers designed for precision and heavy-duty machining. They feature gear-driven spindles, box guideways, and optional live tooling, with configurations for standard, long-bed, milling (M), and Y-axis (Y) capabilities. The LA-350Y adds a 45-degree slant bed, high-torque 2-step gearbox, and large spindle bore for heavy cutting, excellent thermal stability, and efficient chip removal in a compact footprint.

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter) 18.5" (470 mm)
Max Turning Diameter 12.6" (320 mm)
Max Turning Length 11.8" (300 mm)
Max Bar Work Capacity 2" (52 mm)
X-axis Travel 6.9" (175 mm)
Z-Axis Travel 14.7" (375 mm)
Spindle Nose 4,000 RPM
Chuck Size A2-6
Spindle Speed 15 HP (11 kW) for 15 min. / 10 HP (7.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 8" (203 mm)
Chuck Size 2.5" (63 mm)

Max. Workpiece Swing (diameter) 30.7” (780 mm)
Max Turning Diameter 21.25” (540 mm)
Max Turning Length 27.99” / 59.48” / 84.68 ( 711 / 1511 / 2151 mm)
Max Bar Work Capacity 4.3” (115 mm)
X-axis Travel 12.99” (330 mm)
Z-Axis Travel 31.88” / 63.38” / 88.59” (810 / 1610 / 2250 mm)
Chuck Size ±65mm
Spindle Nose A2-11
Spindle Speed 2,500 [2000] RPM
Spindle Drive Motor (30 min. / cont.) 30 HP (22 kW) for 30 min. / 25 HP (18.5 kW) cont.
Chuck Size 12” [15 mm]
Max Through Hole Diameter 5” (126 mm)
