LA-350/450 Series
LA-350/450 Series
LA-350/450 Series

LA-350/450 Series

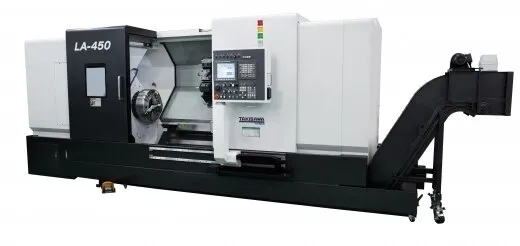

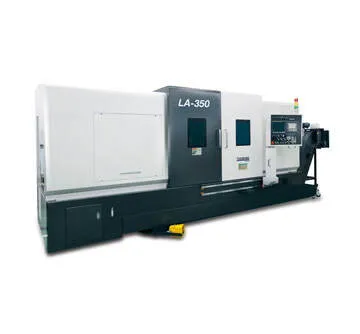

The LA-350 and LA-450 series are high-performance long-bed turning centers featuring gear-driven spindles, rigid box guideways, and modular structures with optional C, Y, or live tooling capabilities. They offer Z-axis travel from 33.4" (850 mm) up to 90.1" (2,290 mm), supporting maximum turning lengths from 800 mm to 2,240 mm, all within a compact, precise, and versatile footprint.

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter) 30.7" (780 mm)
Max Turning Diameter 21.6" (550 mm)
Max Turning Length 31.5" (800 mm)
Max Bar Work Capacity 4.6" (117 mm)
X-axis Travel 11.4" (290 mm)
Z-Axis Travel 33.4" (850 mm)
Chuck Size A2-11
Spindle Nose 2,500 RPM
Spindle Speed 30 HP (22 kW) for 30 min. / 25 HP (18.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 12" (304.8 mm)
Chuck Size 5" (126 mm)

Max. Workpiece Swing (diameter) 30.7" (780 mm)
Max Turning Diameter 21.6" (550 mm)
Max Turning Length 63" (1,600 mm)
Max Bar Work Capacity 4.6" (117 mm)
X-axis Travel 11.4" (290 mm)
Z-Axis Travel 65" (1,650 mm)
Chuck Size A2-11
Spindle Nose 2,500 RPM
Spindle Speed 30 HP (22 kW) for 30 min. / 25 HP (18.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 12" (304.8 mm)
Chuck Size 5" (126 mm)

Max. Workpiece Swing (diameter) 30.7" (780 mm)
Max Turning Diameter 21.6" (550 mm)
Max Turning Length 88.2" (2,240 mm)
Max Bar Work Capacity 4.6" (117 mm)
X-axis Travel 11.4" (290 mm)
Z-Axis Travel 90.1" (2,290 mm)
Chuck Size A2-11
Spindle Nose 2,500 RPM
Spindle Speed 30 HP (22 kW) for 30 min. / 25 HP (18.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 12" (304.8 mm)
Chuck Size 5" (126 mm)

Max. Workpiece Swing (diameter) 30.7" (780 mm)
Max Turning Diameter 21.6" (550 mm)
Max Turning Length 31.5" (800 mm)
Max Bar Work Capacity 5.9" (150 mm)
X-axis Travel 11.4" (290 mm)
Z-Axis Travel 33.4" (850 mm)
Chuck Size A2-11
Spindle Nose 1,800 RPM
Spindle Speed 35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.) 18" (457.2 mm)
Chuck Size 6.3" (162 mm)

Max. Workpiece Swing (diameter) 30.7" (780 mm)
Max Turning Diameter 21.6" (550 mm)
Max Turning Length 63" (1,600 mm)
Max Bar Work Capacity 5.9" (150 mm)
X-axis Travel 11.4" (290 mm)
Z-Axis Travel 65" (1,650 mm)
Chuck Size A2-11
Spindle Nose 1,800 RPM
Spindle Speed 35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.) 18" (457.2 mm)
Chuck Size 6.3" (162 mm)

Max. Workpiece Swing (diameter) 30.7" (780 mm)
Max Turning Diameter 21.6" (550 mm)
Max Turning Length 88.2" (2,240 mm)
Max Bar Work Capacity 5.9" (150 mm)
X-axis Travel 11.4" (290 mm)
Z-Axis Travel 90.1" (2,290 mm)
Chuck Size A2-11
Spindle Nose 1,800 RPM
Spindle Speed 35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.) 18" (457.2 mm)
Chuck Size 6.3" (162 mm)
