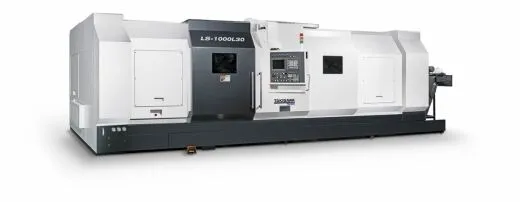

LS-1000 Series

LS-1000 Series

All LS series CNC lathes features a fine ground precision gearbox that allows high cutting torque and accurate surface finish with larger workpiece capacity.

Request A Quote

Specifications

Specifications

Model	LS-1000 L10 [LS-1000M L10]
Max. Workpiece Swing (diameter)	40.1" (1,020 mm)
Max Turning Diameter	35.4" (900 mm) [33.5" (850 mm)]
Max Turning Length	40.6" (1,031 mm) [38.2" 970 mm)]
Max Bar Work Capacity	7.1" (180 mm)
X-axis Travel	19.6" (500 mm)
Z-Axis Travel	43.3" (1,100 mm)
Chuck Size	A2-15
Spindle Nose	1,200 RPM
Spindle Speed	50 HP (37 kW) for 30 min. / 40 HP (30 kW) cont.
Spindle Drive Motor (30 min. / cont.)	20" (508 mm)
Chuck Size	7.9" (201 mm)

Model	LS-1000 L15 [LS-1000M L15]
Max. Workpiece Swing (diameter)	40.1" (1,020 mm)
Max Turning Diameter	35.4" (900 mm) [33.5" (850 mm)]
Max Turning Length	60.3" (1,531 mm) [57.9" (1,470 mm)]
Max Bar Work Capacity	7.1" (180 mm)
X-axis Travel	19.6" (500 mm)
Z-Axis Travel	63" (1,600 mm)
Chuck Size	A2-15
Spindle Nose	1,200 RPM
Spindle Speed	50 HP (37 kW) for 30 min. / 40 HP (30 kW) cont.
Spindle Drive Motor (30 min. / cont.)	20" (508 mm)
Chuck Size	7.9" (201 mm)

Model	LS-1000 L20 [LS-1000M L20]
Max. Workpiece Swing (diameter)	40.1" (1,020 mm)
Max Turning Diameter	35.4" (900 mm) [33.5" (850 mm)]
Max Turning Length	83.9" (2,131 mm) [77.6" (1,970 mm)]
Max Bar Work Capacity	7.1" (180 mm)
X-axis Travel	19.6" (500 mm)
Z-Axis Travel	82.6" (2,100 mm)
Chuck Size	A2-15
Spindle Nose	1,200 RPM
Spindle Speed	50 HP (37 kW) for 30 min. / 40 HP (30 kW) cont.
Spindle Drive Motor (30 min. / cont.)	20" (508 mm)
Chuck Size	7.9" (201 mm)

Model	LS-1000 L30 [LS-1000M L30]
Max. Workpiece Swing (diameter)	40.1" (1,020 mm)
Max Turning Diameter	35.4" (900 mm) [33.5" (850 mm)]
Max Turning Length	123" (3,131 mm) [116.9" (2,970 mm)]
Max Bar Work Capacity	7.1" (180 mm)
X-axis Travel	19.6" (500 mm)
Z-Axis Travel	122" (3,100 mm)
Chuck Size	A2-15
Spindle Nose	1,200 RPM
Spindle Speed	50 HP (37 kW) for 30 min. / 40 HP (30 kW) cont.
Spindle Drive Motor (30 min. / cont.)	20" (508 mm)
Chuck Size	7.9" (201 mm)
