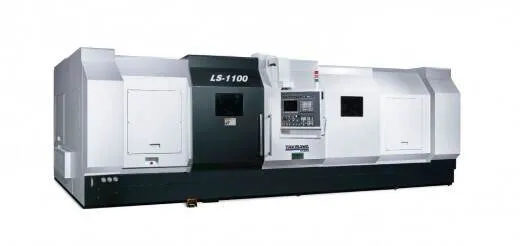

LS-1100 Series

LS-1100 Series

All LS series CNC lathes features a fine ground precision gearbox that allows high cutting torque and accurate surface finish with larger workpiece capacity.

Extra heavy duty CNC
Gear box spindle
Box guideway

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter)	44.1" (1,120 mm)
Max Turning Diameter	35.4" (900 mm)
Max Turning Length	83.2" (2,114 mm)
Max Bar Work Capacity	10" (254 mm)
X-axis Travel	20.6" (524 mm)
Z-Axis Travel	86.6" (2,200 mm)
Chuck Size	A2-20
Spindle Nose	900 RPM
Spindle Speed	60 HP (45 kW) for 30 min. / 50 HP (37 kW) cont.
Spindle Drive Motor (30 min. / cont.)	32" (813 mm)
Chuck Size	10.8" (274 mm)

Max. Workpiece Swing (diameter)	44.1" (1,120 mm)
Max Turning Diameter	35.4" (900 mm)
Max Turning Length	118.6" (3,014 mm)
Max Bar Work Capacity	10" (254 mm)
X-axis Travel	20.6" (524 mm)
Z-Axis Travel	122" (3,100 mm)
Chuck Size	A2-20
Spindle Nose	900 RPM
Spindle Speed	60 HP (45 kW) for 30 min. / 50 HP (37 kW) cont.
Spindle Drive Motor (30 min. / cont.)	32" (813 mm)
Chuck Size	10.8" (274 mm)

Max. Workpiece Swing (diameter)	44.1" (1,120 mm)
Max Turning Diameter	35.4" (900 mm)
Max Turning Length	175.7" (4,464 mm)
Max Bar Work Capacity	10" (254 mm)
X-axis Travel	20.6" (524 mm)
Z-Axis Travel	179" (4,550 mm)
Chuck Size	A2-20
Spindle Nose	900 RPM
Spindle Speed	60 HP (45 kW) for 30 min. / 50 HP (37 kW) cont.
Spindle Drive Motor (30 min. / cont.)	32" (813 mm)
Chuck Size	10.8" (274 mm)
