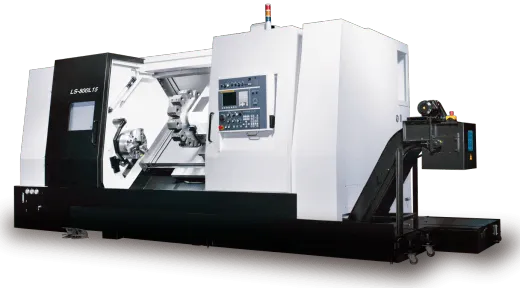

LS-800 Series

LS-800 Series

All LS series CNC lathes features a fine ground precision gearbox that allows high cutting torque and accurate surface finish with larger workpiece capacity.

Request A Quote

Specifications

Specifications

Model	LS-800 A L10 [MA L10]
Max. Workpiece Swing (diameter)	32.6" (830 mm)
Max Turning Diameter	29.9" (760 mm) [26.7" (680 mm)]
Max Turning Length	43.3" (1,100 mm) [38.9" (988 mm)]
Max Bar Work Capacity	3.5" (90 mm)
X-axis Travel	15.3" (390 mm)
Z-Axis Travel	45.2" (1,150 mm)
Chuck Size	A2-8
Spindle Nose	2,000 RPM
Spindle Speed	35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.)	15" (381 mm)
Chuck Size	4" (102 mm)

Model	LS-800 A L15 [MA L15]
Max. Workpiece Swing (diameter)	32.6" (830 mm)
Max Turning Diameter	29.9" (760 mm) [26.7" (680 mm)]
Max Turning Length	63" (1,600 mm) [58.6" (1,488 mm)]
Max Bar Work Capacity	3.5" (90 mm)
X-axis Travel	15.3" (390 mm)
Z-Axis Travel	64.9" (1,650 mm)
Chuck Size	A2-8
Spindle Nose	2,000 RPM
Spindle Speed	35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.)	15" (381 mm)
Chuck Size	4" (102 mm)

Model	LS-800 A L20 [MA L20]
Max. Workpiece Swing (diameter)	32.6" (830 mm)
Max Turning Diameter	29.9" (760 mm) [26.7" (680 mm)]
Max Turning Length	82.7" (2,100 mm) [78.3" (1,988 mm)]
Max Bar Work Capacity	3.5" (90 mm)
X-axis Travel	15.3" (390 mm)
Z-Axis Travel	84.6" (2,150 mm)
Chuck Size	A2-8
Spindle Nose	2,000 RPM
Spindle Speed	35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.)	15" (381 mm)
Chuck Size	4" (102 mm)

Model	LS-800 A L30 [MA L30]
Max. Workpiece Swing (diameter)	32.6" (830 mm)
Max Turning Diameter	29.9" (760 mm) [26.7" (680 mm)]
Max Turning Length	122" (3,100 mm) [117" (2,988)]
Max Bar Work Capacity	3.5" (90 mm)
X-axis Travel	15.3" (390 mm)
Z-Axis Travel	124" (3,150 mm)
Chuck Size	A2-8
Spindle Nose	2,000 RPM
Spindle Speed	35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.)	15" (381 mm)
Chuck Size	4" (102 mm)
