LX-2500/3000 Series

LX-2500/3000 Series

The LX model is designed with a high-performance spindle and modulized structure with optional live tooling, C axis, or Y axis.

  • 2 axes + C axis + Y-axis
  • Built-in spindle
  • Box guideway

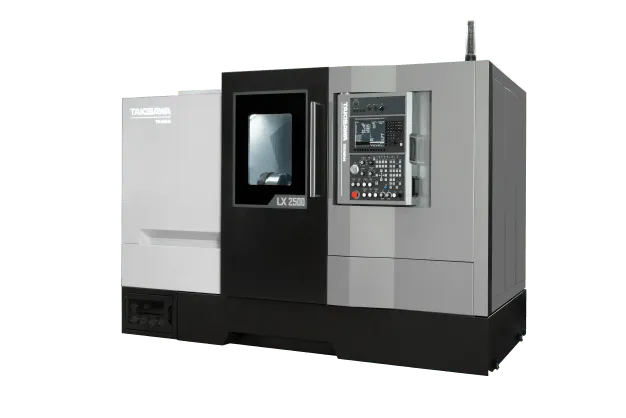

LX-2500
Standard turning center
Max. turning length: 28.8" (732 mm)
Max. turning diameter: 18.5" (470 mm)

LX-2500M
Turning center with milling capabilities
Max. turning length: 27.4" (698 mm)
Max. turning diameter: 16.5" (420 mm)

LX-2500Y
Turning center with Y-axis
Max. turning length: 27.4" (698 mm)
Max. turning diameter: 16.5" (420 mm)

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter) 24.6" (625 mm)
Max Turning Diameter T12 17.7" (450 mm) [T10 18.5" (470 mm)]
Max Turning Length 28.8" (732 mm)
Max Bar Work Capacity Built In Motor 3.18" (81 mm) [Gearbox 2.95" (75 mm)]
X-axis Travel 10.8" (275 mm)
Z-Axis Travel 32.0" (815 mm)
Spindle Nose 3,500 RPM
Chuck Size A2-8
Spindle Speed 25 HP (18.5 kW) / 20 HP (15 kW)
Spindle Drive Motor (30 min. / cont.) 10" (254 mm)
Chuck Size 3.58" (91 mm)
