MX Series

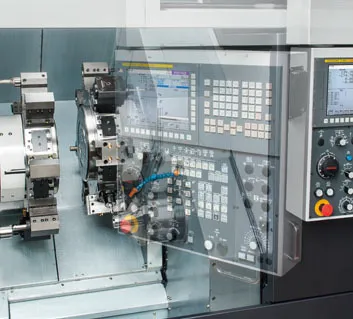

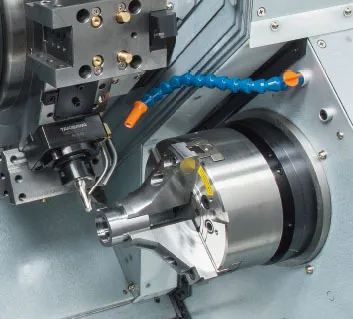

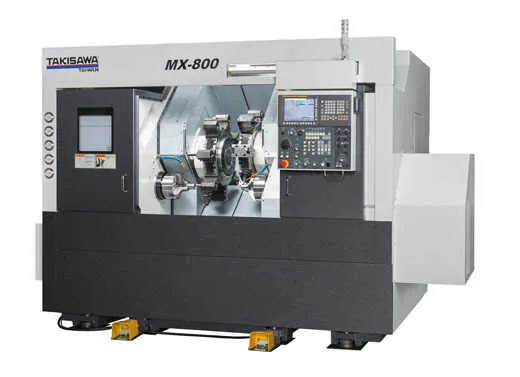

Equipped with twin turrets and twin spindles, the MX-800 is a multi-tasking fully intelligent turning - milling CNC lathe for complex machining

Specifications

Max. Workpiece Swing (diameter)	12.2" (310 mm)
Max Turning Diameter	12.2" (310 mm)
Max Turning Length	9.84" (250 mm)
Max Bar Work Capacity	2" (52 mm)
Max Bar Work Capacity	2.6" (66 mm)
X1 Travel	8.86" (225 mm)
X2 Travel	8.86" (225 mm)
Z1 Travel	10.43" (265 mm)
Z2 Travel	31.89" (810 mm)
Spindle Nose	4,000 RPM
Spindle Speed	20 HP (15 kW) for 30 min. / 15 HP (11 kW) cont.
Spindle Speed	25 HP (18.5 kW) for 30 min. / 20 HP (15 kW) cont.
Spindle Drive Motor (30 min. / cont.)	8" (203 mm)
Chuck Size	2.5" (63 mm)
Chuck Size	3" (76 mm)
