NEX Series
NEX Series
NEX Series
NEX Series
NEX Series

NEX Series

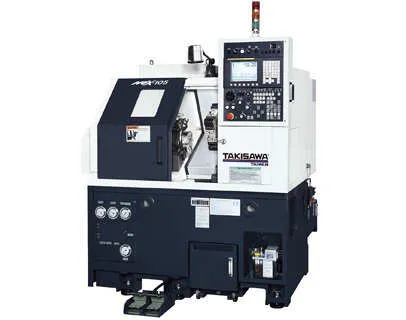

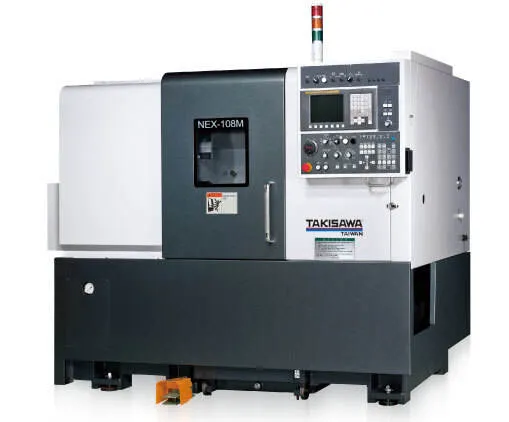

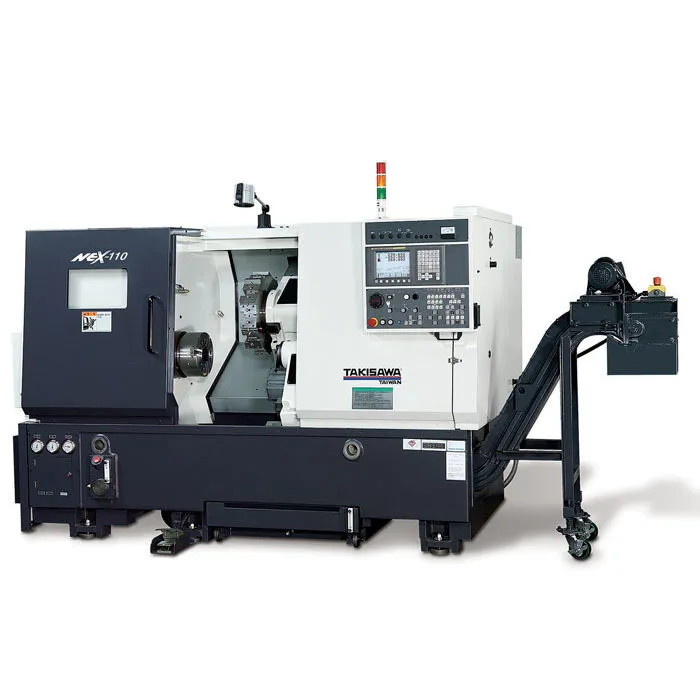

The NEX series of turning centers—including the NEX-105, NEX-108, and NEX-110—are precision machines designed for small-batch production of complex parts. They feature rigid linear guideways, high-speed or high-torque spindles, and fast indexing to maximize productivity. Models offer 2-axis standard turning, optional milling (M), and Y-axis (Y) capabilities, with maximum swing up to 22" (560 mm) and turning lengths up to 25.8" (657 mm), delivering flexible solutions for a range of part sizes and materials.

Request A Quote

Specifications

Specifications

Max. Workpiece Swing (diameter) 15.7" (398.8 mm)
Max Turning Diameter 6.7" (170.2 mm)
Max Turning Length 7.3" (185.4 mm)
Max Bar Work Capacity 1.7" (43 mm)
X-axis Travel 4.1" (104.1 mm)
Z-Axis Travel 7.9" (200.6 mm)
Chuck Size F140
Spindle Nose 6,000 RPM
Spindle Speed 10 HP (7.5 kW) for 30 min. / 7.5 HP (5.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 6" (152 mm)
Chuck Size 2.1" (53.3 mm)

Max. Workpiece Swing (diameter) 13.8" (350 mm)
Max Turning Diameter 9.45" (240 mm)
Max Turning Length 13.8" (350 mm)
Max Bar Work Capacity 1.7" (43 mm)
X-axis Travel 5.51" (140 mm)
Z-Axis Travel 13.77" (350 mm)
Chuck Size Flat 140
Spindle Nose 5,000 RPM
Spindle Speed 10 HP (7.5 kW) for 15 min. / 7.5 HP (5.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 6" (152 mm)
Chuck Size 2.2" (56 mm)

Max. Workpiece Swing (diameter) 15.7" (400 mm)
Max Turning Diameter 12.6" (320 mm)
Max Turning Length 18.9" (481 mm)
Max Bar Work Capacity 2" (52 mm)
X-axis Travel 7.08" (180 mm)
Z-Axis Travel  20.8" (530 mm)
Chuck Size A2-6
Spindle Nose 4,000 RPM
Spindle Speed 15 HP (11 kW) for 30 min. / 10 HP (7.5 kW) cont.
Spindle Drive Motor (30 min. / cont.) 8" (203 mm)
Chuck Size 2.48" (63 mm)

Max. Workpiece Swing (diameter) 19.4" (495 mm)
Max Turning Diameter 15.7" (400 mm)
Max Turning Length 25.8" (657 mm)
Max Bar Work Capacity 3" (77 mm)
X-axis Travel 8.7" (220 mm)
Z-Axis Travel 28" (710 mm)
Chuck Size A2-8
Spindle Nose 3,500 RPM
Spindle Speed 25 HP (18.5 kW) for 30 min. / 20 HP (15 kW) cont.
Spindle Drive Motor (30 min. / cont.) 10" (254 mm)
Chuck Size 3.5" (86 mm)
