VTC Series

The WELE VTC1612, VTC1616, VTC2020, VTC2525, and VT16 are highly rigid vertical turning centers designed for heavy cutting and large part machining. Built with high-grade, single-piece cast iron frames and hydrostatic tables with C-axis indexing, these machines provide exceptional vibration absorption and long-term accuracy. Featuring puzzle-type magazines, automatic head changes, and curvic gear-tooth couplers, their live-function spindles enable combined turning and milling operations in a single setup for maximum flexibility and precision.

Request A Quote

Specifications

Turning Table Diameter	'63" (1,600 mm)
Max. Workpiece Swing (diameter)	70.9" (1,800 mm)
Max Turning Diameter	70.9" (1,800 mm)
Maximum Turning Height	47.2" (1,200 mm)
Distance Table Top to Ram Surface	55.1" (1,400 mm)
X-axis Travel (column)	'-31.8" to 46.4" (-810 mm to 1,180 mm)
Z-axis Travel (work table)	41.3" (1,050 mm)
Maximum Table Load	30,864 lb (14,000 kg)
Turning Table Speed	260 RPM
Max Table Torque	16,584 lb-ft (22,484 Nm)
Spindle Taper	BBT50 BIG-PLUS®
Ram Spindle Speed	1,600 RPM
Tool Storage Capacity	2 Heads + 12 Pockets / 20 Pockets (Opt)

Turning Table Diameter	63" (1,600 mm)
Max. Workpiece Swing (diameter)	78.7" (2,000 mm)
Max Turning Diameter	78.7" (2,000 mm)
Max Turning Length	63" (1,600 mm)
Maximum Turning Height	47.2" (1,200 mm)
Distance Table Top to Ram Surface	55.1" (1,400 mm)
X-axis Travel	-31.8" to 46.4" (-810 mm to 1,180 mm)
W-Axis Travel	31.5" (800 mm)
Z-Axis Travel	41.3" (1,050 mm)
Maximum Table Load	30,864 lb (14,000 kg)
Turning Table Speed	260 RPM
Turning Table Motor Power	60 HP (45 kW) for 30 min. / 49 HP (37 kW) cont.
Turning Table Torque	14,796 ft-lb (20,063 Nm)
Spindle Taper	BBT50 BIG-PLUS®
Spindle Nose	1,600 RPM
Maximum Spindle Output Torque	224 ft-lb (304 Nm)
Spindle Type	Geared head
Spindle Taper	472 ipm (12 m/min)
Tool Storage Capacity	315 ipm (8 m/min)
Rapid Feedrate (W-axis)	79 ipm (2 m/min)
Feedrate (X and Y axes)	79 ipm (2 m/min)
Rapid feedrate - X axis	16 Standard
Standard Floor Space	262" x 196" x 204" (6,650 mm x 4,975 mm x 5,175 mm)

Turning Table Diameter	63" (1,600 mm)
Max. Workpiece Swing (diameter)	78.7" (2,000 mm)
Max Turning Diameter	78.7" (2,000 mm)
Distance Table Top to Ram Surface	70.8" (1,800 mm)
Max Turning Length	63" (1,600 mm)
Maximum Turning Height	36" (1,600 mm)
X-axis Travel	-31.8" to 46.4" (-810 mm to 1,180 mm)
W-Axis Travel	43.3" (1,100 mm)
Z-Axis Travel	41.3" (1,050 mm)
Maximum Table Load	30,864 lb (14,000 kg)
Turning Table Speed	260 RPM
Turning Table Motor Power	60 HP (45 kW) for 30 min. / 49 HP (37 kW) cont.
Turning Table Torque	14,796 ft-lb (20,063 Nm)
Spindle Taper	BBT50 BIG-PLUS®
Spindle Nose	1,600 RPM
Maximum Spindle Output Torque	224 ft-lb (304 Nm)
Spindle Type	Geared head
Spindle Taper	472 ipm (12 m/min)
Tool Storage Capacity	315 ipm (8 m/min)
Rapid feedrate - X axis	16 Standard
Standard Floor Space	262" x 196" x 217" (6,650 mm x 4,975 mm x 5,525 mm)

Turning Table Diameter	78.7" (2,000 mm)
Max. Workpiece Swing (diameter)	94.5" (2,400 mm)
Max Turning Diameter	94.5" (2,400 mm)
Max Turning Length	78.7" (2,000 mm)
Maximum Turning Height	63" (1,600 mm)
Distance Table Top to Ram Surface	86.6" (2,200 mm)
X-axis Travel	-39.7" to 54.3" (-1,010 mm to 1,380 mm)
W-Axis Travel	59" (1,500 mm)
Z-Axis Travel	49.2" (1,250 mm)
Maximum Table Load	39,600 lb (18,000 kg)
Turning Table Speed	200 RPM
Turning Table Motor Power	60 HP (45 kW) for 30 min. / 49 HP (37 kW) cont.
Turning Table Torque	19,768 ft-lb (26,802 Nm)
Spindle Taper	BBT50 BIG-PLUS®
Spindle Nose	1,600 RPM
Maximum Spindle Output Torque	224 ft-lb (304 Nm)
Spindle Type	Geared head
Spindle Taper	394 ipm (10 m/min)
Tool Storage Capacity	315 ipm (8 m/min)
Rapid feedrate - X axis	16 Standard
Standard Floor Space	281" x 207" x 233" (7,150 mm x 5,270 mm x 5,940 mm)

Turning Table Diameter	98.4" (2,500 mm)
Max. Workpiece Swing (diameter)	118" (3,000 mm)
Max Turning Diameter	118" (3,000 mm)
Max Turning Length	98.4" (2,500 mm)
Maximum Turning Height	78.7" (2,000 mm)
Distance Table Top to Ram Surface	106.3" (2,700 mm)
X-axis Travel	-49.6" to 66.1" (-1,260 mm to 1,680 mm)
W-Axis Travel	74.8" (1,900 mm)
Z-Axis Travel	59" (1,500 mm)
Maximum Table Load	48,400 lb (22,000 kg)
Turning Table Speed	140 RPM
Turning Table Motor Power	100 HP (75 kW) for 30 min. / 80 HP (60 kW) cont.
Turning Table Torque	38,722 ft-lb (52,507 Nm)
Spindle Taper	BBT50 BIG-PLUS®
Spindle Nose	1,600 RPM
Maximum Spindle Output Torque	224 ft-lb (304 Nm)
Spindle Type	Geared head
Spindle Taper	394 ipm (10 m/min)
Tool Storage Capacity	315 ipm (8 m/min)
Rapid feedrate - X axis	16 Standard
Standard Floor Space	302" x 219" x 266" (7,680 mm x 5,570 mm x 6,765 mm)

Turning Table Diameter	63" (1,600 mm)
Maximum Workpiece Swing	78.7" (2,000 mm)
Maximum Turning Diameter	78.7" (2,000 mm)
Maximum Z Stroke	37.8" (960 mm)
Maximum Turning Height	29.9" (760 mm)
X-axis Travel	-31.8" to 46.4" (-810 mm to 1,180 mm)
Z-Axis Travel	29.9" (760 mm)
Maximum Table Load	17,600 lb (8,000 kg)
Turning Table Speed	260 RPM
Turning Table Motor Power	60 HP (45 kW) for 30 min. / 49 HP (37 kW) cont.
Turning Table Torque	14,014 ft-lb (19,999 Nm)
Spindle Nose	1,600 RPM
Maximum Spindle Output Torque	224 ft-lb (304 Nm)
Spindle Type	Geared head
Spindle Taper	472 ipm (12 m/min)
Tool Storage Capacity	315 ipm (8 m/min)
Maximum Cutting Feedrate	79 ipm (2 m/min)
Standard Floor Space	202" x 170" x 189" (5,140 mm x 4,320 mm x 4,800 mm)

VTC Series

Specifications

Specifications

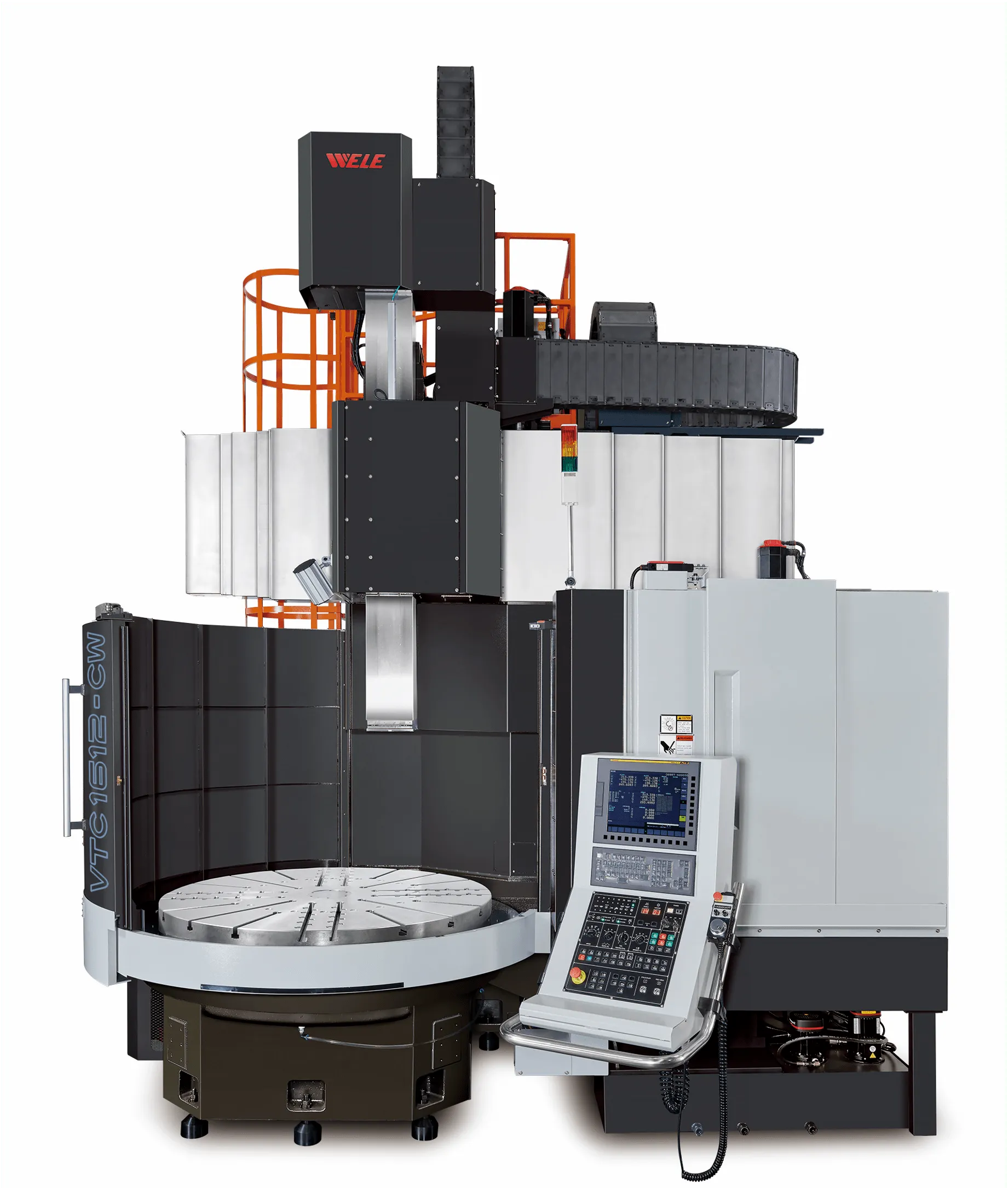

VTC1612-CW

VTC1612

VTC1616

VTC2020

VTC2525

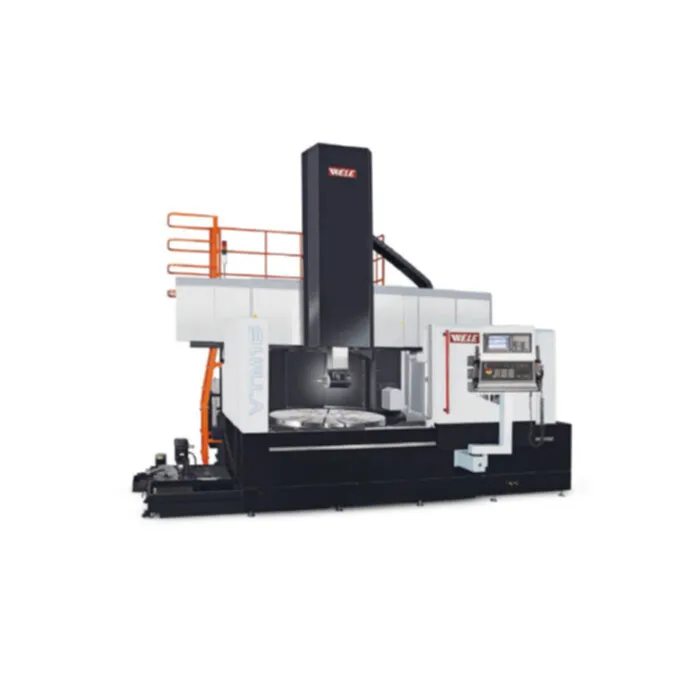

VT16
