VTL Series

Takisawa Taiwan vertical turning centers are designed for mass production and reduce cutting times for automotive parts such as brake discs, brake drums, hubs and valves. All VTL series CNC lathes feature a heavy duty box-shaped bed and ways to ensure the highest level of rigidity and stability for accurate machining.

Request A Quote

Specifications

Model	VTL-350
Max. Workpiece Swing (diameter)	23.6" (600 mm)
Max Turning Diameter	18.1" (460 mm)
Max Turning Length	16.4" (416.5 mm)
X-axis Travel	10.4" (265 mm)
Z-Axis Travel	18.5" (470 mm)
Chuck Size	A2-8
Spindle Nose	2,500 RPM
Spindle Speed	35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.)	12" (304.8 mm)

Max. Workpiece Swing (diameter)	23.6" (600 mm)
Max Turning Diameter	18.1" (460 mm)
Max Turning Length	16.3" (415 mm)
X-axis Travel	10.4" (265 mm)
Z-Axis Travel	18.5" (470 mm)
Chuck Size	A2-8
Spindle Nose	2,500 RPM
Spindle Speed	35 HP (26 kW) for 30 min. / 30 HP (22 kW) cont.
Spindle Drive Motor (30 min. / cont.)	12" (304.8 mm)

Max. Workpiece Swing (diameter)	31.5" (800 mm)
Max Turning Diameter	29.5" (750 mm)
Max Turning Length	27.4" (698 mm)
X-axis Travel	15.3" (390 mm)
Z-Axis Travel	28.5" (725 mm)
Chuck Size	A2-11
Spindle Nose	2,000 RPM
Spindle Speed	50 HP (37 kW) for 30 min. / 40 HP (30 kW) cont.
Spindle Drive Motor (30 min. / cont.)	15" (381 mm)

Max. Workpiece Swing (diameter)	850 mm
Max Turning Diameter	800 mm
Max Turning Length	700 mm
X-axis Travel	460 mm
Z-Axis Travel	770 mm
Chuck Size	A2-11
Spindle Nose	2,000 RPM

Max. Workpiece Swing (diameter)	52.3" (1,330 mm)
Max Turning Diameter	47.2" (1,200 mm)
Max Turning Length	39.4" (1,000 mm)
X-axis Travel	25.6" (650 mm)
Z-Axis Travel	44.9" (1,140 mm)
Chuck Size	32"- 40"
Spindle Nose	A2-20
Spindle Speed	850 rpm
Spindle Drive Motor (30 min. / cont.)	74hp/60hp

VTL Series

Specifications

Specifications

VTL-350

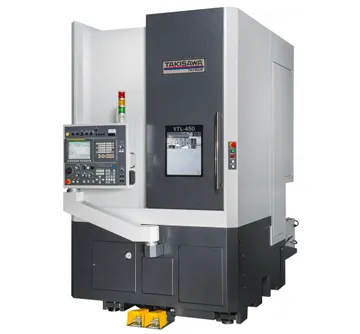

VTL-450

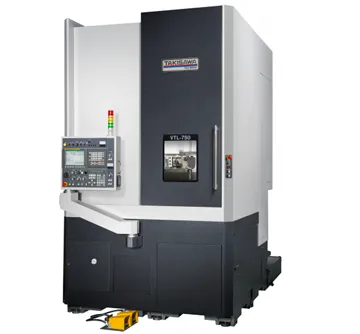

VTL-750

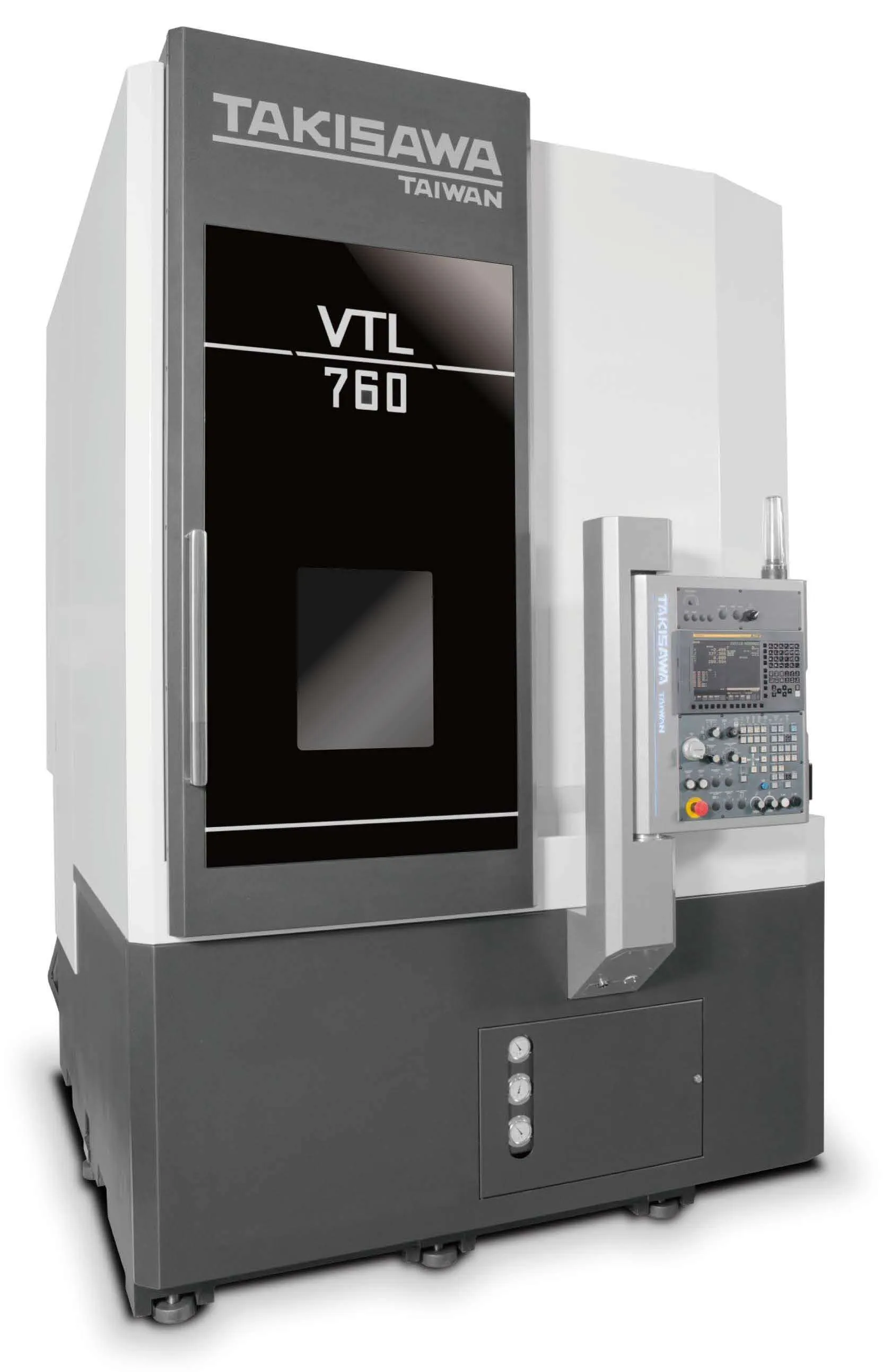

VTL-760

VTL-1100
