Drill Tap Centers

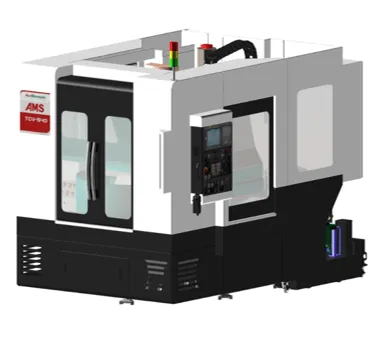

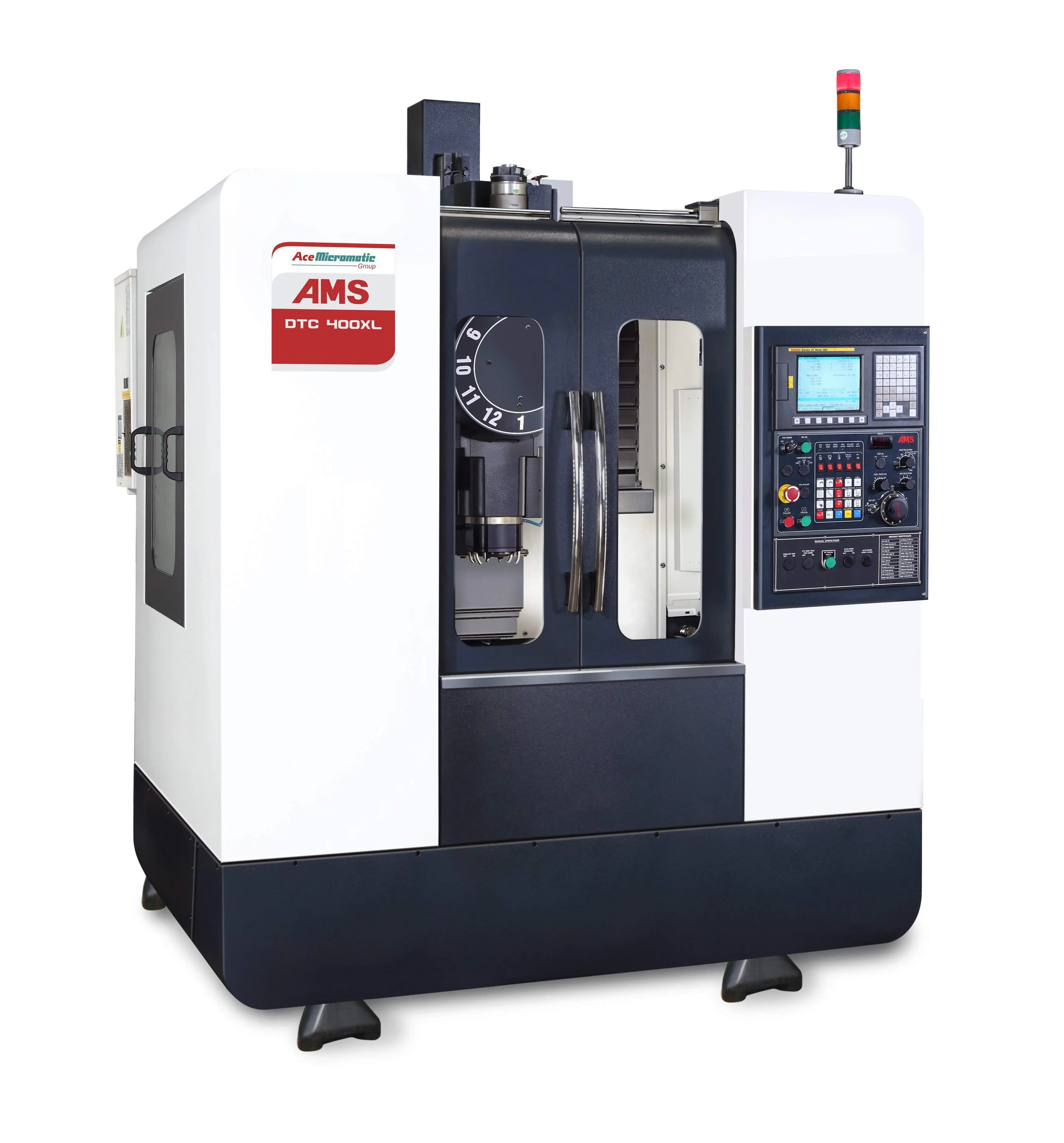

The DTCXL, XL-L, and TCV540 are compact machines built for drilling, tapping, and full milling capabilities. Engineered to reduce cycle times with high-speed, precise machining, the DTC line offers a large-capacity 24-pocket tool changer for handling jobs typically reserved for larger machines, while the TCV540 features a rotary pallet changer capable of 3-second exchanges for maximum efficiency.
Request A Quote
Specifications
Specifications
| X-axis Travel |
19.68" (500 mm) |
| Y-axis Travel (spindle head) |
15.75" (400 mm) |
| Z-Axis Travel |
12.6" (320 mm) |
| Rapid Traverse X, Y, and Z Axes |
2,362 / 2,362 / 1, 890 ipm (60 / 60 / 48 m/min) |
| CNC Controller |
Fanuc 0iMF |
| Table Size |
29.35" x 15.75" (750 x 400 mm) |
| Maximum Table Load |
660 lb (300 kg) |
| Spindle Nose |
150 - 15,000 RPM |
| Rapid feedrate - X axis |
24 |
| Maximum Tool Diameter |
3.15" (80 mm) |
| Tool Shank Type |
Bi-Directional & Random |
| Machine Weight |
7,000 lb (3,200 kg) |
| X-axis Travel |
27.5” (700 mm) |
| Y-axis Travel (spindle head) |
15.7” (400 mm) |
| Z-Axis Travel |
12.6” (320 mm) |
| Rapid Traverse X, Y, and Z Axes |
1,969 / 1,969 / 1,575 ipm (50 / 50 /40 m/min) |
| CNC Controller |
Fanuc 0iMF |
| Table Size |
33.4" x 15.7" (850 x 400 mm) |
| Maximum Table Load |
660 lb (300 kg) |
| Spindle Nose |
100 ~ 10,000 RPM |
| Rapid feedrate - X axis |
24 |
| Maximum Tool Diameter |
(Diameter x Length) ø3.14" x 7.87" (ø80 x 200 mm) |
| Tool Shank Type |
Bi Directional Random |
| Machine Weight |
7,940 lb (3,600 kg) |
| X-axis Travel |
39.4" (1,000 mm) |
| Y-axis Travel (spindle head) |
19.7” (500 mm) |
| Z-Axis Travel |
12.6” (320 mm) |
| Rapid Traverse X, Y, and Z Axes |
1,890 ipm (48 m/min) |
| CNC Controller |
Fanuc 0iMF |
| Table Size |
47.2" x 19.7" (1,200 x 500 mm) |
| Maximum Table Load |
660 lb (300 kg) |
| Spindle Nose |
250 ~ 20,000 RPM |
| Rapid feedrate - X axis |
24 |
| Maximum Tool Diameter |
(Diameter x Length) ø3.14" x 7.87" (ø80 x 200 mm) |
| Tool Shank Type |
Bi Directional Random |
| Machine Weight |
7,940 lb (3,600 kg) |
| X-axis Travel |
19.7" (500 mm) |
| Y-axis Travel (spindle head) |
15.75" (400 mm) |
| Z-Axis Travel |
12.6" (320 mm) |
| Rapid Traverse X, Y, and Z Axes |
50 m/min |
| CNC Controller |
Fanuc 0iMF |
| Table Size |
29.2" x 15.75" (760 x 400 mm) |
| Maximum Table Load |
440 lb (200 kg) |
| Spindle Nose |
12,000 RPM |
| Optional Spindle Speed |
20,000 RPM |
| Rapid feedrate - X axis |
16 |
| Maximum Tool Diameter |
(Diameter x Length) ø3.14" x 7.87" (ø80 x 200 mm) |
| Tool Shank Type |
Bi-Directional & Random |
| Machine Weight |
14,330 lb (6,500 kg) |
